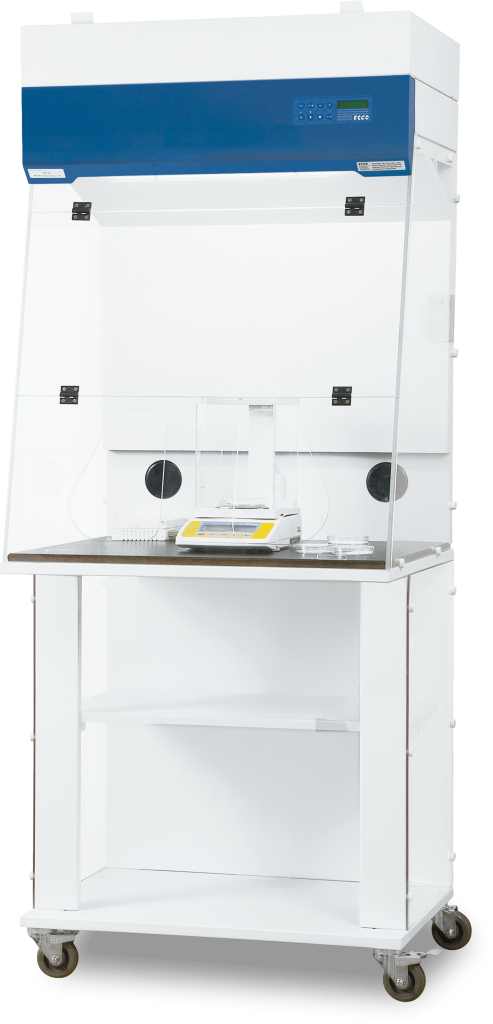

Powdermax weighing balance station, with fluorescent lights and phenolic work surface, HEPA filter included, 4ft. Ships unassembled. Onsite assembly is required.

Features

Laboratory operations involving weighing, mixing and dispensing hazardous powders can now be performed safely and economically with the Esco Powdermax™ 1 (PW1) Powder Weighing Balance Enclosure. The enclosure's unique design maintains balance stability to 4 decimal places without compromising containment.



Double-hinged sash mechanism with arm ports



  • sash with 13° sloping to help minimize glares and reflections
  • allows easy access to work zone without risking exposure from hazardous powders
  • allows higher sash opening for effortless cabinet loading



Filtration System



  • Main Filter: HEPA Filter



Baffles



  • Improves airflow and prevents fume accumulation in the work area.



Phenolic Worktop



  • The solid work surface minimizes transmission of fan vibration to the user's weighing balance.



Isocide™ Antimicrobial Powder Coating



  • Eliminates 99.9% of surface bacteria within 24 hours of exposure

Specifications

Overview

  • Nominal Height:
    44.3" (112.52 cm)
  • Nominal Width:
    44.9" (114.05 cm)
  • Nominal Length:
    27.6" (70.1 cm)
  • Internal Height:
    33.4" (84.84 cm)
  • Internal Width:
    44.1" (112.01 cm)
  • Internal Length:
    25.6" (65.02 cm)

General Specifications

  • Nominal Size:
    1.2 meters (4 ft)
  • Standard Filtration Elements:
    HEPA filter, typical efficiency of >99.99% at 0.3 microns, removes particles and aerosols
  • Control System:
    Sentinel™ Silver Microprocessor Controller
  • Inflow Air Velocity - Initial Set Point:
    average of 0.5 m/s (100 fpm)
  • Sound Emission:
    <55 dBA at initial blower speed setting measured at typical operator work position
  • Fluorescent Lamp Intensity at Zero Ambient:
    >600 lux (>56 ft. candles)
  • Sash Specification - Sloped Front:
    13°
  • Sash Specification - Sash Type:
    Hinged
  • Net Weight:
    160 kg (352.7 lbs)
  • Shipping Weight:
    170 kg (374.8 lbs)
  • Shipping Dimensions, Maximum (W x D x H):
    1300 x 1100 x 720 mm (2866.0" x 2425.1" x 1587.33")
  • Shipping Volume, Maximum:
    1.0 m³ (35.3 cu.ft.)

Cabinet Construction

  • Main Body - Back Wall:
    1.2 mm (0.05") 18 gauge electrogalvanized steel with white oven-baked epoxy-polyester, Isocide™ antimicrobial powder coated finish
  • Front Window - Side Walls:
    6 mm (0.2") Acrylic
  • Work Top:
    Phenolic Resin
