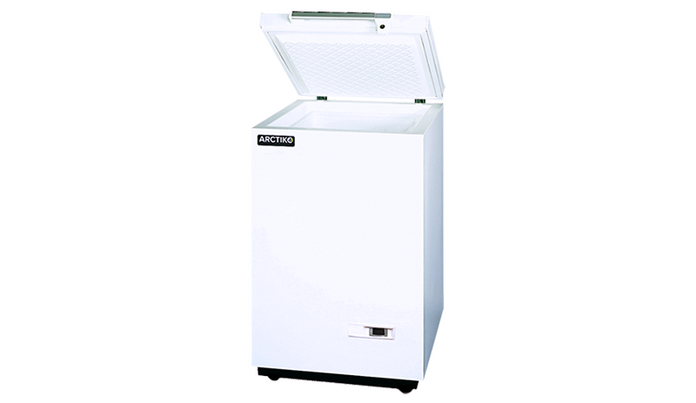

Arctiko - SUF 100 - Small Ultra Low Temperature Freezer

Arctiko - SUF 100 - Small Ultra Low Temperature Freezer

Arctiko - SUF 100 - Small Ultra Low Temperature Freezer

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
-40/-86 °C. Chest Model – 2.5 ft³. Efficient ULT Cooling. Low Noise. Low Maintenance

Features

ARCTIKO’s SUF ultra low temperature laboratory freezers are designed to work in high traffic laboratories where reliable and precise ultra low temperature storage is paramount.



The SUF 100 offers quick pulldown, fast recovery time, and high temperature uniformity throughout the compartment, even with multiple door openings. This small ultra low temperature chest freezer offers 2.5 ft³ capacity and accurate temperature control within the range of -86 °C to -40 °C.



Superior Cooling Performance



ARCTIKO’s SUF 100 reaches -80°C in only 85 minutes due to our single compressor technology. The technology is specially designed to be the best in class in cooling performance. With the SUF 100 ultra low temperature freezer you can rely on superior temperature stability and temperature uniformity even after door openings. Our single compressor technology provides this cooling performance while lowering the energy consumption required.



Optimized Storage Capacity



This freezer has optimized internal storage. With the standard included stackable basket and the optional stainless steel front rack storage system, your samples will be easily accessible at any time.



Noise Reduction Technology



This freezer incorporates our noise reduction technology, helping to provide a pleasant work environment. Noise reduction is achieved by the implementation of our uniquely designed compressor compartment.



Key Lock Security



Equipped with a secure key lock, providing an added layer of protection for valuable contents and preventing unauthorized access. This feature ensures the integrity and confidentiality of stored items, making it ideal for environments where security is paramount.



Alarm Functions



Visual and acoustic alarms for high/low temperature and temperature probe failure ensure that you can react quickly in the unlikely event of a temperature deviation.



Temperature Monitoring Port



This laboratory freezer incorporates a pre-fitted access port with no extra cost involved, making it easier to monitor or inspect the unit with external probes.



Filterless Construction



Our filterless construction makes cleaning unnecessary. The evaporator coils are spaced so far apart that dust will not be trapped and obstruct the airflow. The filterless construction eliminates the need for filters entirely, saving you maintenance time and cost.

Specifications

Overview

  • Nominal Height:
    33.49" (85.06 cm)
  • Nominal Width:
    21.75" (55.25 cm)
  • Nominal Length:
    26.12" (66.34 cm)
  • Internal Height:
    17.73" (45.03 cm)
  • Internal Width:
    11.43" (29.03 cm)
  • Internal Length:
    11.43" (29.03 cm)
  • Capacity:
    2.5

Main Specifications

  • Item Code:
    1300009-02
  • Temperature Range (°C):
    -40 / -86 °C
  • Temperature Range (°F):
    -40 / -123 °F
  • Max. Ambient Temperature (°C):
    25
  • Weight (KG):
    53
  • Weight (Lb):
    117
  • Insulation (Mm):
    80
  • Insulation (Inches):
    3,16
  • Cooling Technology:
    Single System / Static
  • Controller Model / Probe Type:
    Dixell Xr30cx / Pt 1000
  • Power Supply (V):
    110
  • Frequency (Hz):
    60
  • Power Consumption (KWH/24H):
    7,7
  • AMP (A):
    2,0
  • Horse Power (HP):
    1/2

Refrigerant & Cabinet

  • Number Of Compressors:
    1
  • Refrigerant:
    Ep88
  • Interior Cabinet Material:
    Pre-painted Steel
  • Exterior Cabinet Material:
    Pre-painted Steel
  • Colour (Exterior Cabinet):
    White
  • Foam Agent:
    Polyurethane

Shipping

  • Shipping Weight (Kg):
    53
  • Shipping Weight (Lb):
    117
  • Shipping Dimensions WxDxH (Cm):
    68 X 64 X 116
  • Shipping Dimensions WxDxH (Inches):
    26.8 X 25.2 X 45.7
  • Shipping Volume (M³):
    0.51
  • Shipping Volume (Cu.FT):
    18.01
