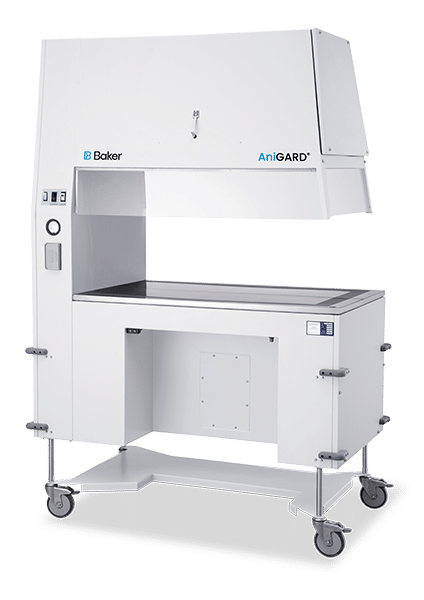

The AniGARD® e3 combines improved containment and enhanced ergonomics with lower energy requirements to provide you with unrivalled performance and protection. The AniGARD® e3 provides ISO Class 4 (Class 10) air cleanliness, and is designed to protect animals from contaminants and reduce user exposure to allergens.

Features

Confidence you can rely on


The AniGARD® e3 combines improved containment and enhanced ergonomics with lower energy requirements to provide you with unrivalled performance and protection. The AniGARD® e3 provides ISO Class 4 (Class 10) air cleanliness, and is designed to protect animals from contaminants and reduce user exposure to allergens.


Comfortable User Experience


  • Offers low noise levels.
  • Slanted viewscreen on three sides provides a direct line-of-sight panoramic view of the well-lit workspace.

Ease of Use and Versatility


  • 14" high access openings with a hinged viewscreen that opens to 21¾" for moving large items into the workspace.
  • Electric hydraulic lift allows work surface height adjustment from 32½" to 44".

Superior Performance in Protection and Containment


  • ISO Class 4 air cleanliness at 0.5 microns.
  • Allows negligible cage-to-cage cross-contamination.
  • Product protection similar to a biosafety cabinet.
  • Allergen control.

Designed for Easy Cleaning and Maintenance


  • Moveable, two-piece work surface for easy access to the spill tray and pre-filter.
  • Unobstructed access to HEPA filter.

Energy-Efficient


  • Utilizes StediFLOW™, a self-adjusting motor technology that requires less energy, extends filter life, and reduces heat output to the lab.

Specifications

Overview

  • Nominal Height:
    87.63" (222.58 cm)
  • Nominal Width:
    70.25" (178.44 cm)
  • Nominal Length:
    32.5" (82.55 cm)
  • Internal Height:
    22.75" (57.79 cm)
  • Internal Width:
    60" (152.4 cm)
  • Internal Length:
    30" (76.2 cm)

Technical Specifications

  • Nominal Size:
    5'
  • Exterior Dimensions (w x d x h [Min to Max]):
    70.25" x 32.5" x [76.13" to 87.63"]
  • Work Surface Height [Min to Max]:
    32.5" - 44"
  • Usable Workspace (w x d):
    54.63" x 21.81"
  • Weight:
    585 lbs
  • Shipping Weight:
    720 lbs
  • Access Opening (Working Position):
    14"
  • Access Opening (Loading/Cleaning Position):
    21.75"
  • Operating Amperage:
    4.8 Amps
  • Power Consumption:
    552 Watts
  • Heat Generation:
    1,885 BTU/hr
  • Electrical Requirements:
    115 V AC, 15 Amps, 60 Hz
  • Noise - NSF Method:
    62 dBA
  • Noise - EN Method:
    60 dBA
  • Lighting - Minimum Average At Work Surface:
    100 foot candles
