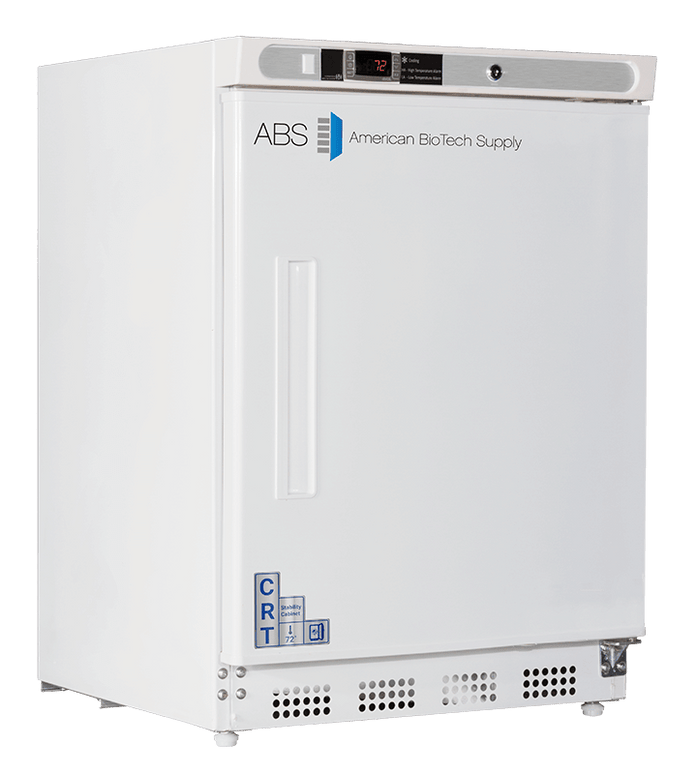

American Biotech Supply - CRT-ABT-HC-UCBI-0404 - 4.6 Cu. Ft Undercounter Controlled Room Temperature Cabinet, Built-In

Features
The Undercounter Controlled Room Temperature Cabinets feature a microprocessor temperature controller and display which allows for precise temperature control, verification and recovery. An interior fan driven, forced-draft air circulation system provides excellent temperature uniformity and recovery after door openings. Medications are security backed with an extensive package of audible and visual alarms.
A controlled temperature environment will ensure approved storage; preventing time wasted on unnecessary expense and product recalls.
The Built-In models are designed with a "front breathing" ventilation system, eliminating the need for clearance around the top and sides of the unit; enabling the user to incorporate these units into cabinets and other applications where free space is limited.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
Details
- Three shelves (two adjustable/one fixed) with guard rail on back to prevent product from being pushed against the back wall
- Vaccine storage power cord warning label
- Forced draft circulation
- Keyed door lock
- Magnetic door gasket for positive seal
- Leveling legs
- HFC-free refrigerant (R600a), foam insulation and packaging
- Two year parts and labor warranty, plus an additional three year compressor parts only warranty
Temp Control

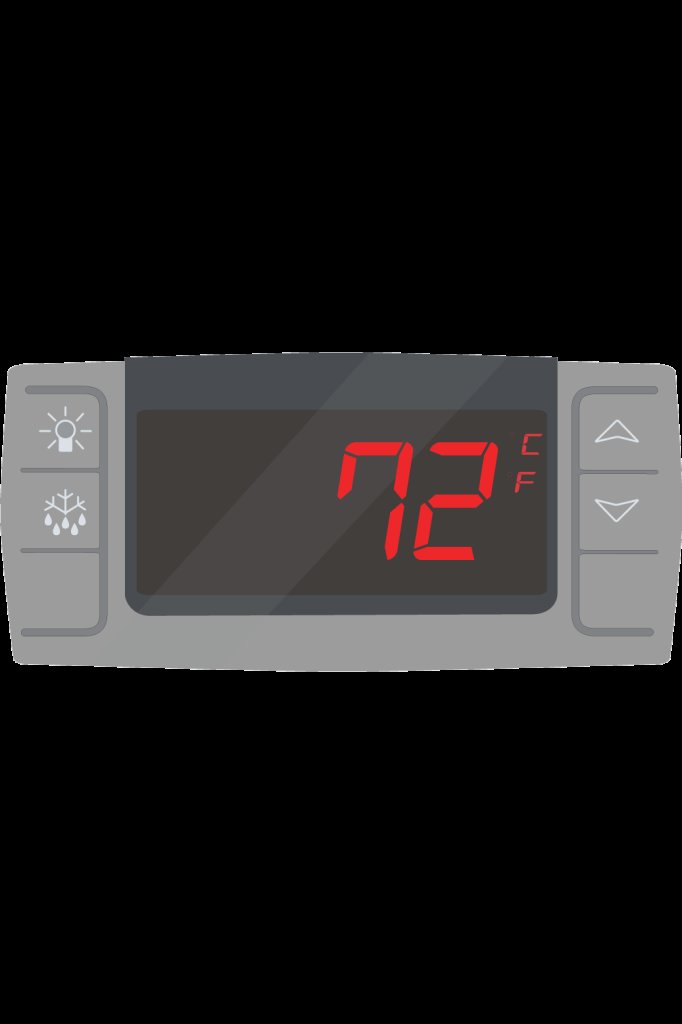

- Microprocessor temperature controller
- Digital temperature display
- Audible and visual high and low temperature alarms
- Remote alarm contacts
- 2 probes; 1 in air and 1 in sample bottle
- Adjustable operating temperature range: 68°F to 77°F (20°C to 25°C)
- Temperature monitor device (TMD) complies with the current CDC guidelines, with 3 years certification of calibration, "buffered" probe in the product simulated solution, min/max memory, F/C switchable, field installable, and visual & audible temp alarm
Specifications
Overview
-
Nominal Height:33.38" (84.79 cm)
-
Nominal Width:23.75" (60.33 cm)
-
Nominal Length:24.5" (62.23 cm)
-
Internal Height:24.5" (62.23 cm)
-
Internal Width:19.25" (48.9 cm)
-
Internal Length:17.25" (43.82 cm)
-
Capacity:4.6
Technical Data
-
Defrost:Cycle
-
Door:1 Solid
-
Int Door:0
-
Shelves:2 Adj/1 Fixed
-
Refrigerant:R600a
-
H.P.:0.125
-
Amps:1.74
-
Weight:97 lbs.
Drawings
-
CRT-ABT-HC-UCBI-0404 Ext CutsheetVisit Link
-
CRT-ABT-HC-UCBI-0404 Int CutsheetVisit Link
