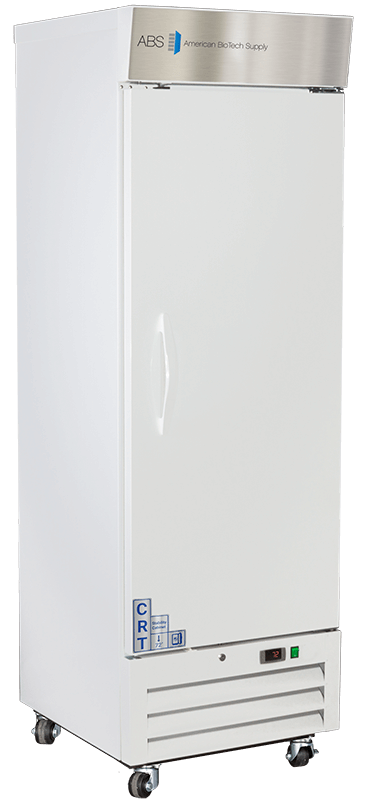

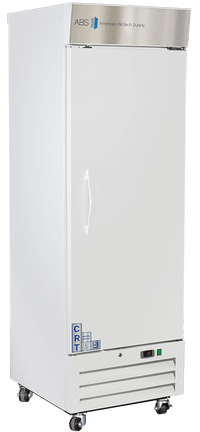

American Biotech Supply - CRT-ABT-HC-S16S - 16 Cu. Ft. Upright Controlled Room Temperature Cabinet, Solid Door

Features
The Upright Controlled Room Temperature Cabinets are purpose built for medical applications. These units feature a digital microprocessor temperature controller allowing for the precise temperature management necessary for medication storage at room temperature. A forced air directional refrigeration system provides superior temperature uniformity and recovery after door openings.
A controlled temperature environment will ensure approved storage; preventing time wasted on unnecessary expense and product recalls.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
Details
- Three adjustable shelves
- Vaccine storage power cord warning label
- Forced draft air circulation
- Heavy duty door handle
- Keyed door lock
- Magnetic door gasket for positive seal
- LED interior lights are safety shielded and switch controlled
- Swivel Casters (3")
- Hydrocarbon, natural refrigerant (R290)
- One year parts and labor warranty, plus an additional four year compressor parts warranty
Temp Controller

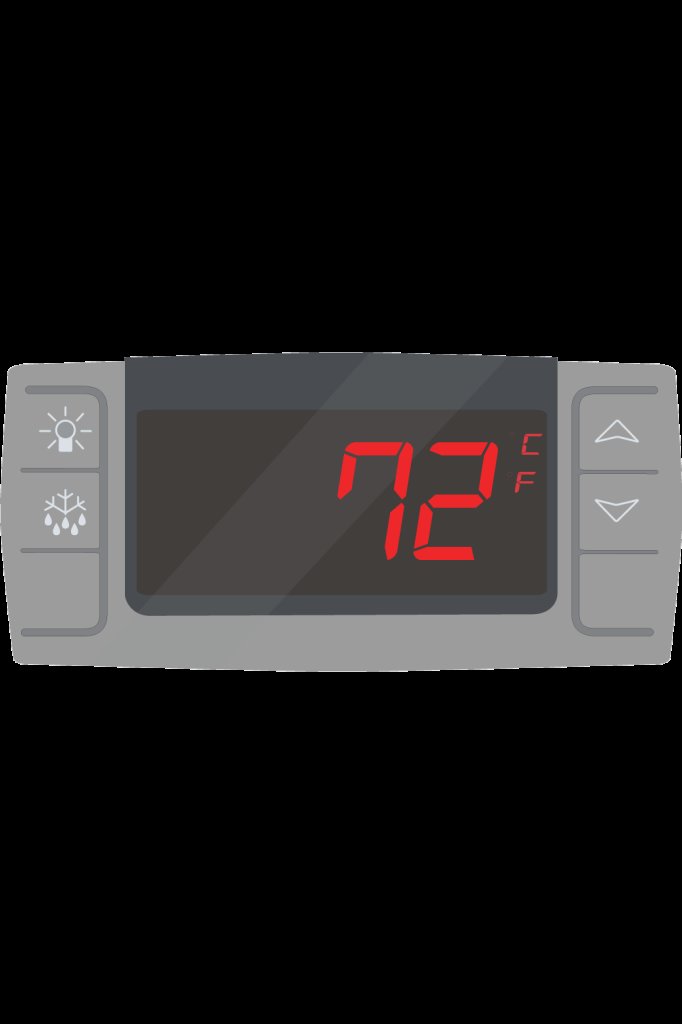

- Microprocessor temperature controller
- Digital temperature display
- Audible and visual high and low temperature alarms
- Remote alarm contacts
- Adjustable operating temperature range: 68°F to 77°F (20°C to 25°C)
- 2 probes; 1 in air and 1 in sample bottle
- Temperature monitor device (TMD) complies with the current CDC guidelines, with 3 years certification of calibration, "buffered" probe in the product simulated solution, min/max memory. F/C switchable, field installable, and visual & audible temp alarm
Specifications
Overview
-
Nominal Height:79" (200.66 cm)
-
Nominal Width:25" (63.5 cm)
-
Nominal Length:29.75" (75.57 cm)
-
Internal Height:49.25" (125.1 cm)
-
Internal Width:20" (50.8 cm)
-
Internal Length:19.5" (49.53 cm)
-
Capacity:16
Technical Data
-
Defrost:Cycle
-
Door:1 Solid
-
Int Door:0
-
Shelves:3 Adj
-
Refrigerant:R290
-
H.P.:0.2
-
Amps:3
-
Weight:237 lbs.
Drawings
-
CRT-ABT-HC-S16S Ext CutsheetVisit Link
-
CRT-ABT-HC-S16S Int CutsheetVisit Link
Useful Links
-
CRT-ABT-HC-S16S SpecSheetVisit Link
