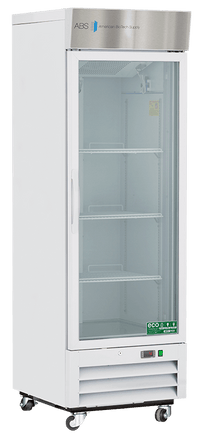

American Biotech Supply - ABT-HC-LS-16 - 16 Cu. Ft. Capacity Standard Glass Door Laboratory Refrigerator

Features
The Standard Series Glass Laboratory Refrigerators are purpose built for scientific and medical applications. Standard Series Glass Door Laboratory Refrigerators feature a digital microprocessor temperature controller allowing for the precise temperature management necessary for critical samples and supplies. A forced air directional refrigeration system provides superior temperature uniformity and recovery after door openings.
The temperature display and alarm module offers product security with a monitoring and alarm system. Real-time sample simulated temperatures are constantly displayed and supported by audible/visual high and low temperature alarms.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
Details
- Three adjustable shelves (adjustable in 0.5" increments)
- Forced draft air circulation
- Keyed door lock
- Magnetic door gasket for positive seal
- Heavy duty door handle
- Swivel casters (3.5")
- LED interior lights are safety shielded and switch controlled
- Hydrocarbon, natural refrigerant (R290)
- One year parts and labor warranty, plus an additional four year compressor parts warranty
Temp Controller

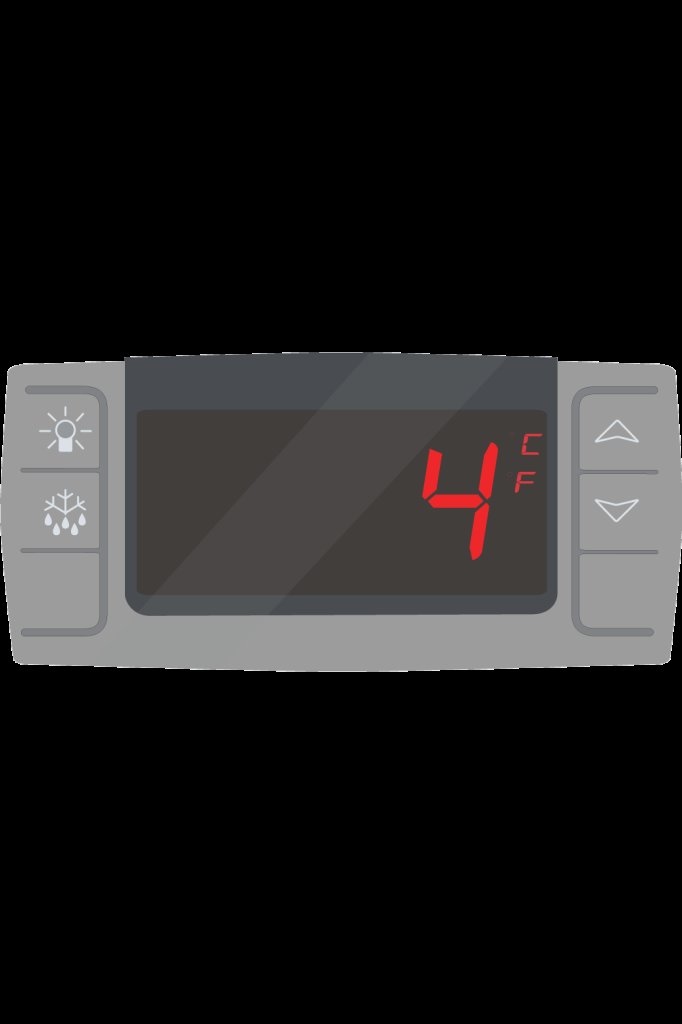

- Microprocessor temperature controller
- Digital temperature display
- Audible and visual high and low temperature alarms
- 2 probes, 1 in air and 1 in sample bottle
- Remote alarm contacts
- Adjustable operating temperature: 1°C to 10°C
Specifications
Overview
-
Nominal Height:79" (200.66 cm)
-
Nominal Width:25" (63.5 cm)
-
Nominal Length:29.75" (75.57 cm)
-
Internal Height:49.25" (125.1 cm)
-
Internal Width:20" (50.8 cm)
-
Internal Length:19.5" (49.53 cm)
-
Capacity:16
Technical Data
-
Defrost:Cycle
-
Door:1 Glass
-
Int Door:0
-
Shelves:3 Adj
-
Refrigerant:R290
-
H.P.:1/5
-
Amps:3
-
Weight:243 lbs.
Drawings
-
ABT-HC-LS-16 Ext Cut SheetVisit Link
-
ABT-HC-LS-16 Int Cut SheetVisit Link
Useful Links
-
ABT-HC-LS-16 SpecsheetVisit Link
