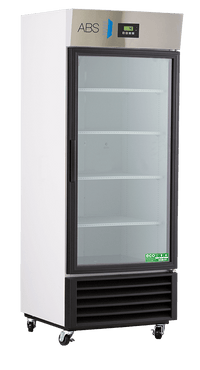

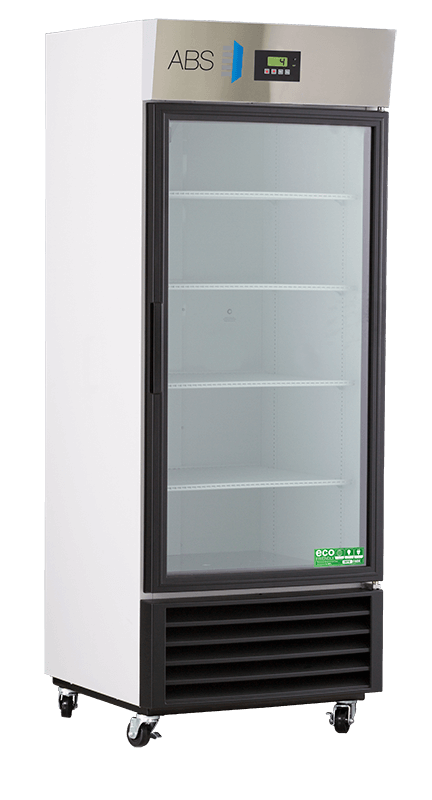

American Biotech Supply - ABT-HC-26 - 26 Cu. Ft. Capacity Premier Glass Door Laboratory Refrigerator

Features
The Premier Laboratory Refrigerators feature a microprocessor temperature controller and display, allowing for precise temperature control, verification and recovery versus mechanical style thermostats. An interior fan driven, forced-draft air circulation system provides excellent temperature uniformity and recovery after door openings. Critical samples and supplies are security backed with an extensive package of audible and visual alarms. A variety of door types and sizes are available ranging from 10 to 72 cubic feet.
The temperature display and alarm module offers an array of robust security features with a monitoring and alarm system that is 100% independent of a microprocessor temperature controller.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
Details
- Four adjustable shelves (adjustable in 0.5" increments)
- Forced draft air circulation
- Keyed door lock
- Magnetic door gasket for positive seal
- Recessed door handle
- LED interior lights are safety shielded and switch controlled
- Swivel casters (adds 4" to height)
- HFC-free refrigerant (R290), foam insulation and packaging
- Two year parts and labor warranty, plus an additional three year compressor parts warranty
Temp Controller

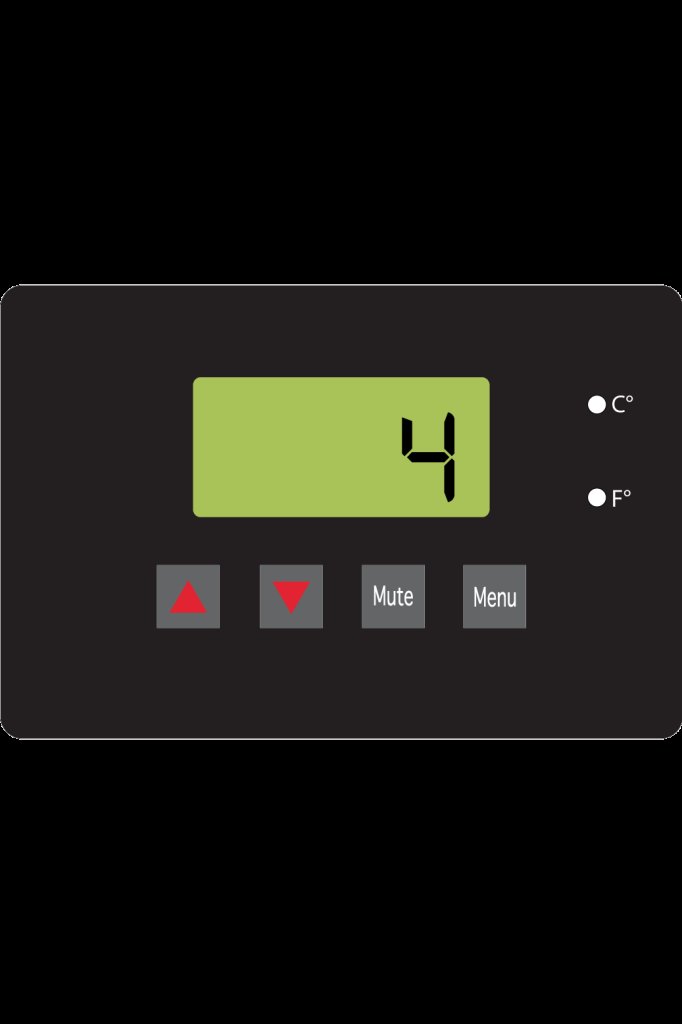

- Microprocessor Temperature Controller
- Adjustable operating temperature range: 1°C to 10°C
- Standard Digital Temperature Display and Alarm Module with battery back-up to support temperature monitoring and alarms
- Sample simulated digital temperature display, .1° Resolution
- Adjustable temperature display in Celsius or Fahrenheit
- Audible and visual high/low temperature alarms
- Sensor error alarm
- Power failure alarm
- Resettable 1-point Min/Max History
- Remote alarm contacts
- Alarm validation (audible, visual, and remote alarm)
- Alarm mute with ring back
Specifications
Overview
-
Nominal Height:82.63" (209.88 cm)
-
Nominal Width:30" (76.2 cm)
-
Nominal Length:30.5" (77.47 cm)
-
Internal Height:57" (144.78 cm)
-
Internal Width:26.25" (66.68 cm)
-
Internal Length:23.75" (60.33 cm)
-
Capacity:26
Technical Data
-
Defrost:Cycle
-
Door:1 Glass
-
Int Door:0
-
Shelves:4 Adj
-
Refrigerant:R290
-
H.P.:1/3
-
Amps:5.4
-
Weight:305 lbs.
Drawings
-
ABT-HC-26 Ext Cut SheetVisit Link
-
ABT-HC-26 Int Cut SheetVisit Link
