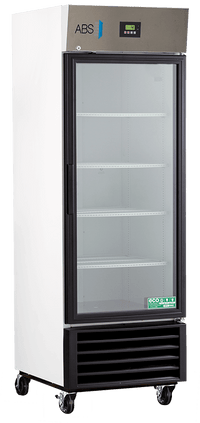

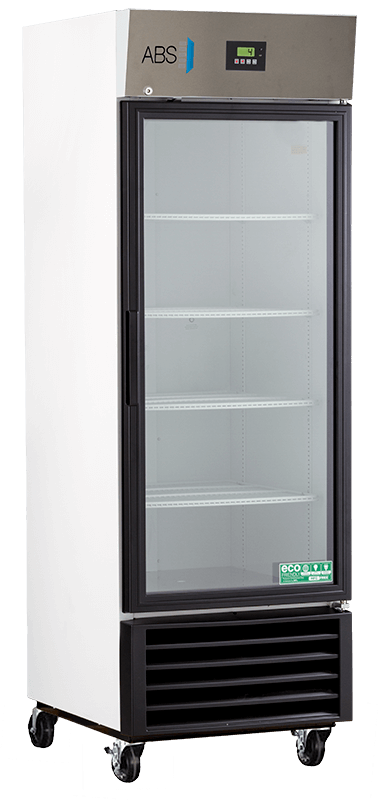

American Biotech Supply - ABT-HC-23 - 23 Cu. Ft. Capacity Premier Glass Door Laboratory Refrigerator

American Biotech Supply - ABT-HC-23 - 23 Cu. Ft. Capacity Premier Glass Door Laboratory Refrigerator
American Biotech Supply - ABT-HC-23 - 23 Cu. Ft. Capacity Premier Glass Door Laboratory Refrigerator

American Biotech Supply - ABT-HC-23 - 23 Cu. Ft. Capacity Premier Glass Door Laboratory Refrigerator

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
The Premier Laboratory Refrigerators feature a microprocessor temperature controller and display, allowing for precise temperature control, verification and recovery versus mechanical style thermostats. An interior fan driven, forced-draft air circulation system provides excellent temperature uniformity and recovery after door openings. Critical samples and supplies are security backed with an extensive package of audible and visual alarms. A variety of door types and sizes are available ranging from 10 to 72 cubic feet.

Features

The Premier Laboratory Refrigerators feature a microprocessor temperature controller and display, allowing for precise temperature control, verification and recovery versus mechanical style thermostats. An interior fan driven, forced-draft air circulation system provides excellent temperature uniformity and recovery after door openings. Critical samples and supplies are security backed with an extensive package of audible and visual alarms. A variety of door types and sizes are available ranging from 10 to 72 cubic feet.



The all-new temperature display and alarm module offers an array of robust security features with a monitoring and alarm system that is 100% independent of a microprocessor temperature controller.



Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.



Details



  • Four adjustable shelves (adjustable in 0.5" increments)
  • Forced draft air circulation
  • Keyed door lock
  • Magnetic door gasket for positive seal
  • Recessed door handle
  • LED interior lights are safety shielded and switch controlled
  • Swivel casters (adds 4" to height)
  • HFC-free refrigerant (R290), foam insulation and packaging
  • Two year parts and labor warranty, plus an additional three year compressor parts warranty

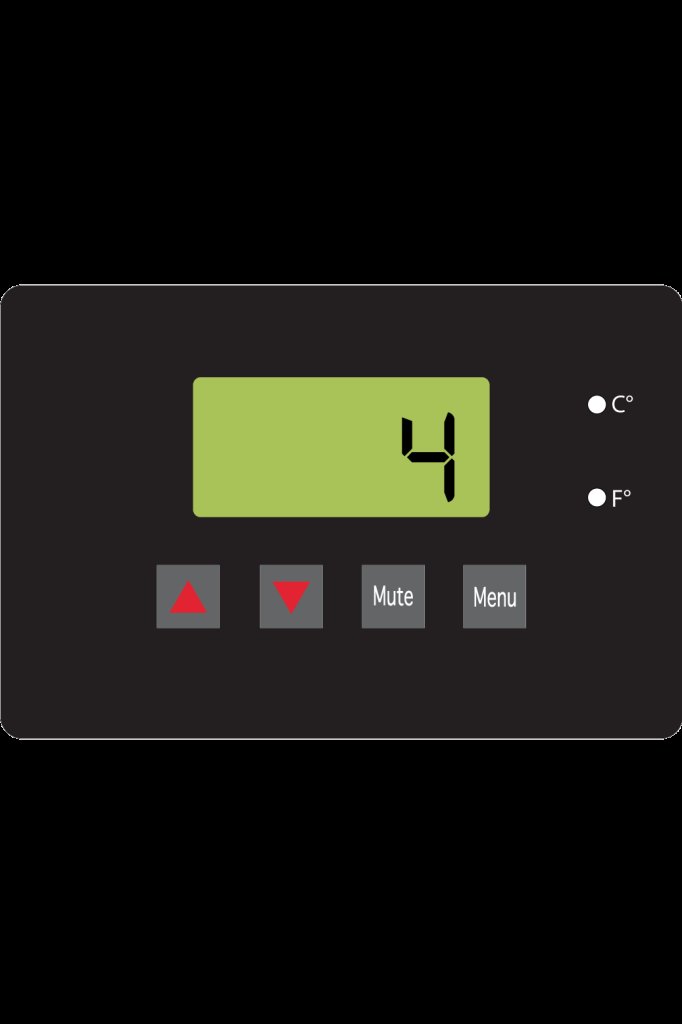

Temp Controller



  • Microprocessor Temperature Controller
  • Adjustable operating temperature range: 1°C to 10°C
  • Standard Digital Temperature Display and Alarm Module with battery back-up to support temperature monitoring and alarms
  • Sample simulated digital temperature display, 1° Resolution
  • Adjustable temperature display in Celsius or Fahrenheit
  • Audible and visual high/low temperature alarms
  • Sensor error alarm
  • Power failure alarm
  • Resettable 1-point Min/Max History
  • Remote alarm contacts
  • Alarm validation (audible, visual, and remote alarm)
  • Alarm mute with ring back

Specifications

Overview

  • Nominal Height:
    82.63" (209.88 cm)
  • Nominal Width:
    27" (68.58 cm)
  • Nominal Length:
    30.5" (77.47 cm)
  • Internal Height:
    56.38" (143.21 cm)
  • Internal Width:
    23.25" (59.06 cm)
  • Internal Length:
    24.5" (62.23 cm)
  • Capacity:
    23

Technical Data

  • Defrost:
    Cycle
  • Door:
    1 Glass
  • Int Door:
    0
  • Shelves:
    4 Adj
  • Refrigerant:
    R290
  • H.P.:
    1/3
  • Amps:
    5.4
  • Weight:
    335 lbs.

Performance

  • Uniformity (Cabinet Air):
    ±0.6
  • Stability (Cabinet Air):
    ±0.6
  • Maximum Temperature Variation (Cabinet Air):
    ±0.9
  • Stability (Simulator Ballast):
    Non-applicable
  • Stability (Simulator Bag):
    Non-applicable
  • Temperature Rise after Short Door Openings:
    Non-applicable
  • Recovery after Short Door Openings:
    Non-applicable
  • Energy Consumption (KWh/day):
    1.15
  • Average Heat Rejection (BTU/hr):
    320
  • Noise Pressure Level (dBA):
    35 or less installed
  • Pull Down Time to Nominal Operating Temp:
    55 min

Temp Controller

  • Controller Technology:
    Proportional integral derivative (PID) microprocessor with LCD display
  • Battery Backup:
    24V high-capacity battery, controller, all alarms active, temperature monitoring DAQ and event logging active on battery backup
  • Display Technology:
    Non-applicable
  • Digital Communication:
    RS-485 (MODBUS)
  • Data Transfer:
    USB port for data transfer and software updates
  • Chart Recorder:
    Non-applicable
  • Adjustable Temperature Range:
    1°C to 10°C
  • External Alarm Connection:
    State switching remote alarm contacts
  • Alarms:
    Alarm logging (last 100 entries) with Visual and audible indicators
  • :
  • :
