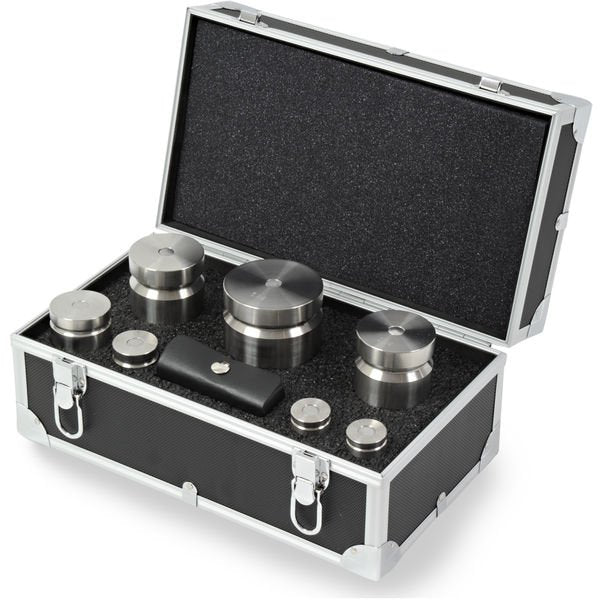

Ohaus - 83040368 - ASTM Scale Calibration Weight Set TEST 5000g-1mg CL5 No Cert TR
Features
ASTM Scale Calibration Weight Sets
Applications
Used to test commercial weighing devices by weights & measures officials and service technicians. Class 5-7 weights may be used to test Class III, Class IIIL or IIII scales and other low precision scales not marked with a class designation.
Construction
Two-piece
Design Features
Stainless steel test weights ≥1g, ≥0.01lb, and all ounce are cylindrical. Weights ≤500mg are aluminum and flat with one end turned up for easy handling. Weights ≤0.005lb, are flat dish weights.
Specifications
Overview
-
Internal Height:7.25" (18.42 cm)
-
Internal Width:13.25" (33.66 cm)
-
Internal Length:6" (15.24 cm)
Technical Data
-
Weight Set Range:5000 g - 1 mg
-
Set Capacity:11.11 kg
-
Set Total Pieces:28
-
Protective Case:Included
-
Construction:200 g and above are two-piece, 100 g and below are one-piece
-
Density at 20°C:100 mg and below are 2.70 g/cm3, 200 mg and above are 7.85 g/cm3
-
Set Contents:(2) 2 g, (2) 200 g, (2) 20 mg, 500 mg, 10 g, (2) 20 g, 100 g, 100 mg, 10 mg, (2) 200 mg, 1 g, (2) 2000 g, 50 g, 5 g, 1 kg, 5 mg, 500 g, (2) 2 mg, 50 mg, 1 mg, 5 kg
-
Weight Material:≥200 mg are 303 Stainless Steel, ≤100 mg are Aluminum
-
Wgt Origin (USA):USA
