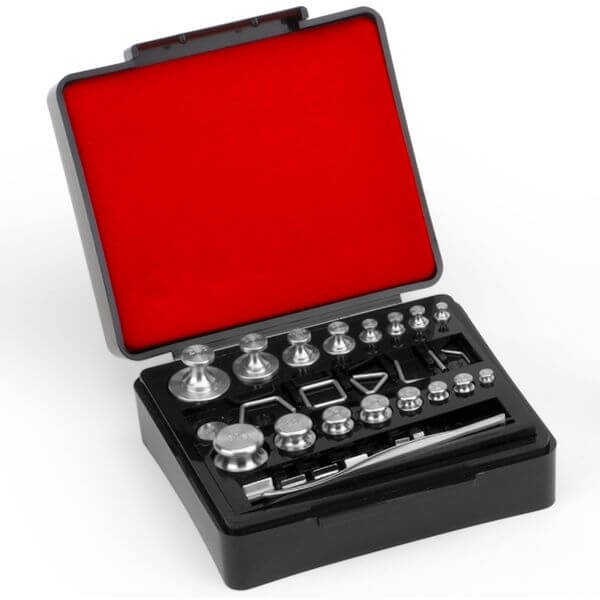

Ohaus - 30390976 - ASTM Class 7 Weight Set ECON 50g-1/2GN CL7 NonAcrd TR
Features
ASTM Scale Calibration Weight Sets
Applications
Suggested markets for economical calibration weights and weights sets include, but are not limited to, educational markets and are appropriate for weighing applications such as force measuring.
Construction
Weights 50g through 10g - two-piece Weights 5g through 10mg - one-piece
Design Features
Weights ≥1 g are cylindrical. Weights ≤500mg are flat with one end turned up
Specifications
Overview
-
Internal Height:3.85" (9.78 cm)
-
Internal Width:4.55" (11.56 cm)
-
Internal Length:2.05" (5.21 cm)
Technical Data
-
Calibration Certificate:Traceable Certificate
-
ASTM Class:7
-
Weight Set Range:50 g - 1/2 GN
-
Set Capacity:219.9 g
-
Protective Case:Included
-
Construction:One-piece
-
Density at 20°C:5 g and below are 2.70 g/cm3, Above 5 g are 7.85 g/cm3
-
Design:Weights 50 g-1 g and all dram, scruple and ounce weights except 1/2 scruple are cylindrical with handling knob, 1/2 scruple is flat and round, 500 mg and below are flat with one end turned up for easy handling, Grain weights are flat wire
-
Set Contents:(2) 2 g, 1/2 dram, (2) 20 mg, 1 dram, 2 dram, 500 mg, (2) 10 g, 10 g, 100 mg, 20 g, 10 mg, (2) 200 mg, 2 scruple, 1 g, 1/2 GN, 50 g, 5 g, 1.2 scruple, 50 mg, 1 scruple
-
Set Total Pieces:31
-
Wgt Origin (USA):USA
