Ohaus - 30390531 - ASTM Scale Calibration Weight Set TEST 50g-10mg CLF Accrd TR
Features
ASTM Scale Calibration Weight Sets
Applications
Used to test commercial weighing devices by weights & measures officials and service technicians. Class 5-7 weights may be used to test Class III, Class IIIL or IIII scales and other low precision scales not marked with a class designation.
Construction
Weights 10 lb through 8 oz - two-piece Weights 4 oz through 0.05 oz - one-piece construction
Design Features
Stainless steel test weights ≥1g, ≥0.01lb, and all ounce are cylindrical. Weights ≤500mg are aluminum and flat with one end turned up for easy handling. Weights ≤0.005lb, are flat dish weights.
Specifications
Overview
-
Internal Height:2.5" (6.35 cm)
-
Internal Width:3.6" (9.14 cm)
-
Internal Length:1.2" (3.05 cm)
Technical Data
-
Calibration Certificate:ISO/IEC 17025 Accredited Certificate
-
NIST Class:F
-
Weight Set Range:50 g - 10 mg
-
Set Capacity:111.1 g
-
Set Total Pieces:16
-

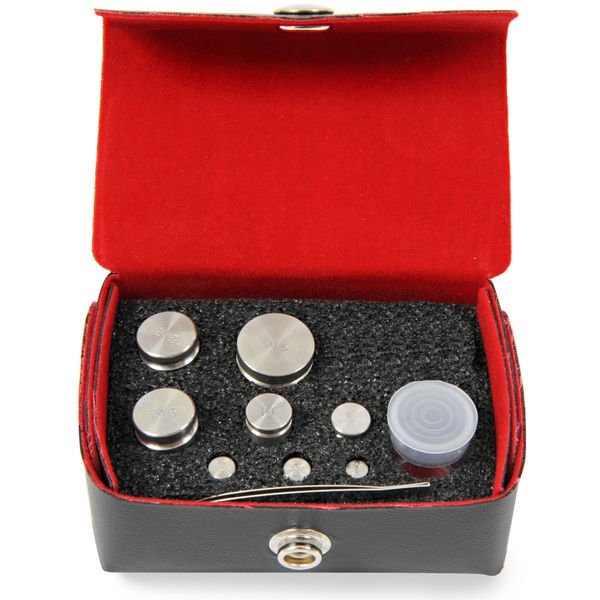

Protective Case:Supplied in a small leatherette case
-
Construction:200 g and above are two-piece, 100 g and below are one-piece
-
Density at 20°C:100 mg and below are 2.70 g/cm3, 200 mg and above are 7.85 g/cm3
-
Set Contents:10 g, (2) 20 g, 100 mg, 10 mg, (2) 2 g, (2) 200 mg, (2) 20 mg, 1 g, 50 g, 5 g, 50 mg, 500 mg
-
Weight Material:Weights 200 mg and above are 303 Stainless Steel, Weights 100 mg and below are 3003-H14 Aluminum
-
Wgt Origin (USA):USA
