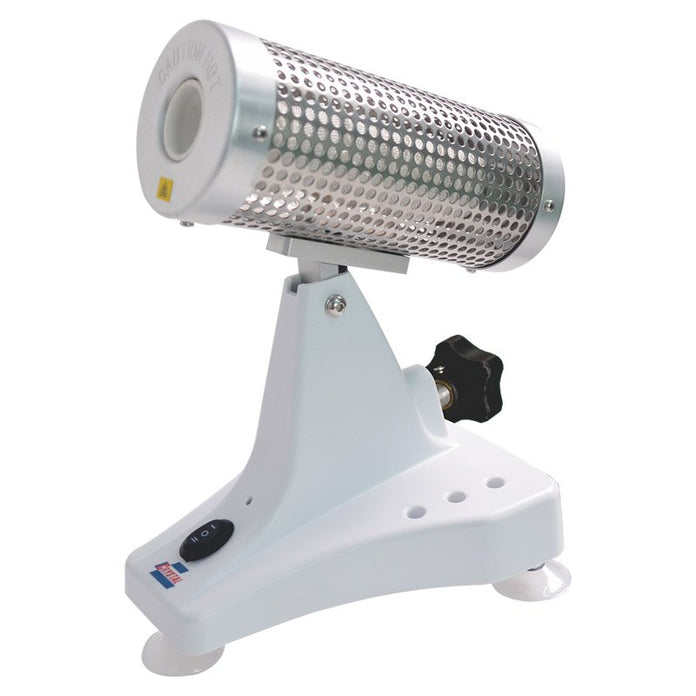

Crystal Industries - ST-14A - Microincinerator with Adjustable Angle
Features
Microincinerators are used to sterilize metal inoculation loops and needles. Utilizing infrared heating inside the ceramic device without an open flame, it protects the user from dangerous gases, flames, and splatters. At 900°C, the loop or needle will reach optimum sterilization within 3-7 seconds.
- Two modes of operation: Stand-By and Operation.
- No flames, gasses, or splatters.
- Inoculating loops and needles sterile in 3-7 seconds.
- Ceramic heating tube quickly reaches 900°C.
- Reliable heating element and stable base.
- The angle of the heating tube is adjustable to the user's preference (Model ST-14A).
Specifications
Overview
-
Nominal Height:8.7" (22.1 cm)
-
Nominal Width:6.38" (16.21 cm)
-
Nominal Length:7.48" (19.0 cm)
Technical Data
-
Operation Mode Temperature:900°C ± 50°C
-
Stand-by Mode Temperature:600°C ± 50°C
-
Inlet Diameter:Ø14mm (Ø0.55 inch)
-
Depth of Heated Area:130 mm (5.1 inch)
-
Sterilization Time:3 - 7 seconds
-
Adjustable Angle:Yes
-
Ambient Temperature:5℃~60℃
-
Ambient Relative Humidity:≤90% in non-condensing conditions
-
Power Supply:AC110±11V, 60Hz
-
Max. Power:200 W
-
Net Weight:1.2 kg (2.7 lb)
-
Certifications:CE
