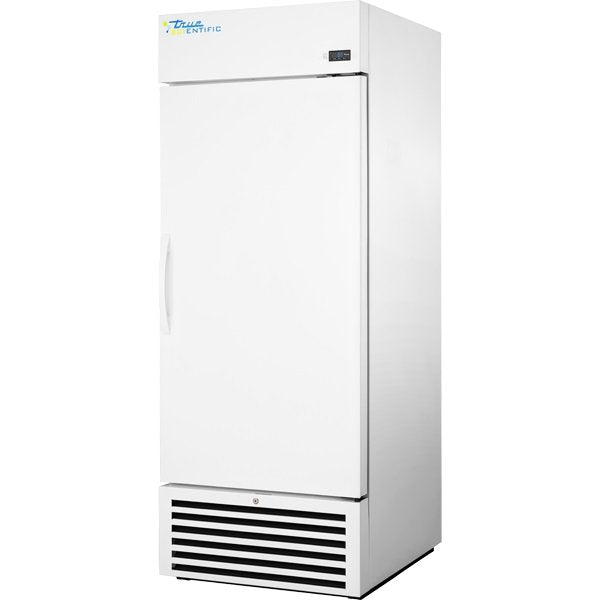

True Scientific - TSCI-600PR-SWS-R-WW-1A - 22.13 Cu.Ft. Swing Solid Door Pharmacy Refrigerator, 115V

Features

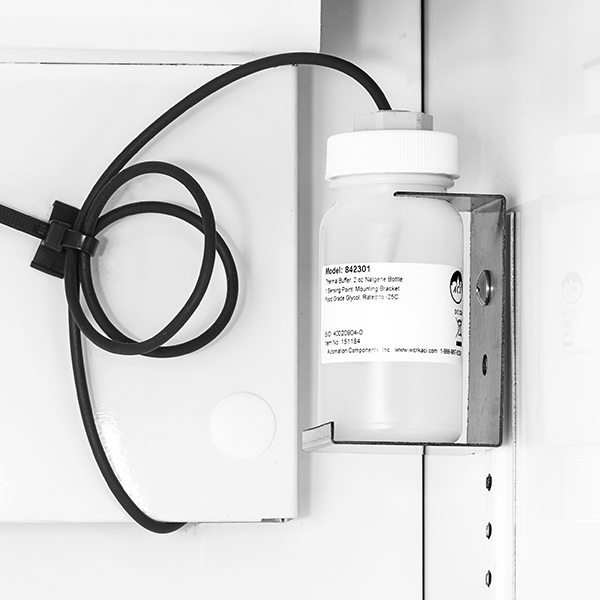

True Scientific series utilizes the most advanced technologies designed specifically for pharmacy, laboratory, and clinical applications. Energy efficient refrigeration system with innovative airflow technology specifically designed to maintain cabinet temperatures between 2°C – 8°C (36°F – 46°F). Self-Cleaning condenser technology eliminates the need for cleaning the condensing coil, reduces energy consumption, and helps maintain the tightest temperatures. Energy-efficient and environmentally friendly R290 hydrocarbon refrigerant. Temperature is measured in a glycol-filled bottle which is displayed on the control to simulate actual product temperature. In the event of a high/low-temperature alarm, door opening, temperature sensor failure or power failure, an alarm will be activated, helping to prevent product loss. Built-in antimicrobial properties to protect the handle. Control has a battery back up feature and is locked at the factory to prevent inadvertent changes to the settings.
Specifications
Overview
-
Nominal Height:78.5" (199.39 cm)
-
Nominal Width:30" (76.2 cm)
-
Nominal Length:29.5" (74.93 cm)
-
Internal Height:54.25" (137.8 cm)
-
Internal Width:26.5" (67.31 cm)
-
Internal Length:24.5" (62.23 cm)
-
Capacity:22.13
Performance Specifications
-
Temperature Range (min - max):2°C - 8°C
-
Temperature Set Point:5°C
-
Temperature Uniformity:0.4°C
-
Temperature Stability:0.7°C
-
Energy Star Certified:Yes
-
NSF 456 Certified:Yes
-
Energy Usage (kW/Day):1.86
-
Daily Rejected Heat (BTU/Hr):592
Dimensions & Construction
-
Number of Doors:1
-
Door Type:Solid Swing
-

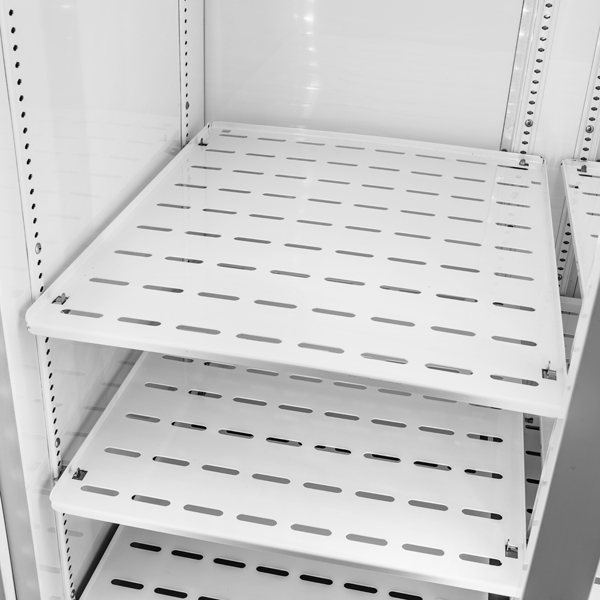

Number of Shelves:7
-
Type of Shelves:7 full
-
Shelf Dimensions - Full Shelf:25.56" W × 21.94" D
-
Shelf Capacity - Full Shelf:105 lbs.
-
Probe Port(s):1 (0.625")
-
Access Port(s):0
-
Internal Outlet:No
-
Castors or Leg Levelers:Leg Levelers
-
Crated Weight:330 lbs. (150 kg)
-
Refrigerant:R290
Electrical Data
-
Voltage / Frequency:115V / 60Hz
-
Amperage:1.8A
-
Plug Type:NEMA 5-15P
