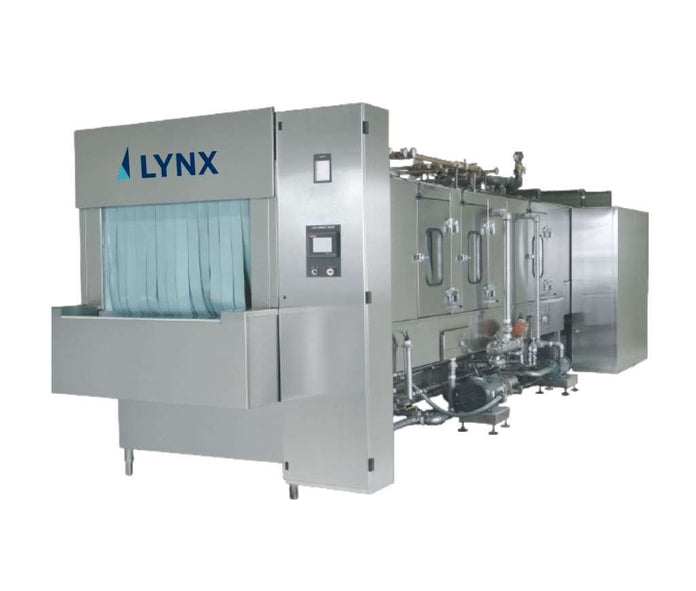

Spire LYNX - 548LX - Tunnel Cage Washer

Spire LYNX - 548LX - Tunnel Cage Washer

Spire LYNX - 548LX - Tunnel Cage Washer

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
Final Rinse Modulating Steam Valve Automatic Self Cleaning Screen (wash)Removable Spray Headers Flat Wire Conveyor Belt Personnel Safety Features Automatic Control System Configurable Cycles Hydraulic Hold-down System Incoming Utility Gauges SS Recirculation Piping and Components Non-proprietary Parts The system is designed to minimize water usage by reusing 100% of final rinse water in the prewash and tank top-off process. and more…

Features

Standard Features



  • Splash Proof Access Doors
  • 2-10 FPM Conveyor Drive Motor
  • Integral Unitized Construction
  • Removable Spray Headers
  • Flat Wire Conveyor Belt
  • Personnel Safety Features
  • Automatic Control System
  • PLC Control System with Full Color HMI Touch Screen
  • Configurable Cycles
  • Automatic Water Level Control
  • Neutralization System
  • Drawer Debris Screens
  • 180° F Recirculated Temperature Guarantee
  • Insulated Construction
  • Hydraulic Hold-down System
  • Incoming Utility Gauges
  • SS Recirculation Piping and Components
  • Non-proprietary Parts
  • Automatic Tank Draining System
  • De-scaling Cycle
  • Final Rinse Modulating Steam Valve
  • Automatic Self Cleaning Screen (wash)



Construction



LYNX 548LX Tunnel Washers are built to perform under the most rugged and aggressive environments with robust design and construction. The durable stainless steel belt is manufactured to withstand the weight and impact of heavy bottle wash racks and other large objects requiring positioning. The system is designed to minimize water usage by reusing 100% of final rinse water in the prewash and tank top-off process. Recirculated water is heated by stainless steel steam coils to maintain and achieve guaranteed treatment temperatures. A color touch screen control panel provides a user-friendly interface for selecting, programming, and monitoring cycles.



Optional Features



  • Right or Left Hand Services
  • LYNX OPTI-Flow™ Water and Energy Saving System
  • Automatic Self Cleaning Screen (rinse)
  • Discharge Roller Conveyors
  • Integral Data Collection System
  • Automatic Drain Discharge Cooldown System
  • Low Steam Pressure Package
  • Air Compressor
  • Printer
  • 7’ Double Blower Drying System
  • Seismic Tie Down
  • Detergent Dispensing Systems
  • pH Neutralization System
  • Bedding Dispenser Controls
  • Added Load End Extensions
  • Integrated Bedding Dump Stations - Garb-el, Vacuum, Garbage Tote or Can
  • Interior Illumination
  • Barrier Wall Flange(s)

Specifications

Overview

  • Nominal Height:
    85" (215.9 cm)
  • Nominal Width:
    85" (215.9 cm)
  • Internal Height:
    25" (63.5 cm)
  • Internal Width:
    49" (124.46 cm)

Utilities

  • Electrical (E):
    3-60-208/480V, 33HP
  • Hot Water (HW):
    1.5" NPT, 35-60 PSI, 30-50 GPM @ 140° F ± 5° F (fills only), HW 10-12 GPM continuous
  • Cold Water (CW)*:
    1.5" NPT, 35-60 PSI, 35 GPM @ 50° F ± 5° F
  • Steam (S):
    2" NPT, 45-80 PSI, Dynamic ± 5 PSI, 1800 #/Hr Flow Rate
  • Steam (S2):
    2" NPT, 45-80 PSI, Dynamic ± 5 PSI, 1000 #/Hr Flow Rate
  • Condensate (C):
    1" NPT (2 required)
  • Air (A):
    0.5" NPT, 100-125 PSI, 1-2 CFM Flow Rate
  • Drain (D):
    12" x 12" Floor Sink with 4" Floor Drain, 50 GPM Flow Rate (2 required)
  • Vent (V):
    18" ID Duct, 2200 CFM, 2-3" WC SP, Saturated Vapor @ 180° F
  • Washer Lengths:
    15'-24' (with dryer)
  • Standard Belt Width:
    48"
  • Opt. Tunnel Heights:
    18", 25"
