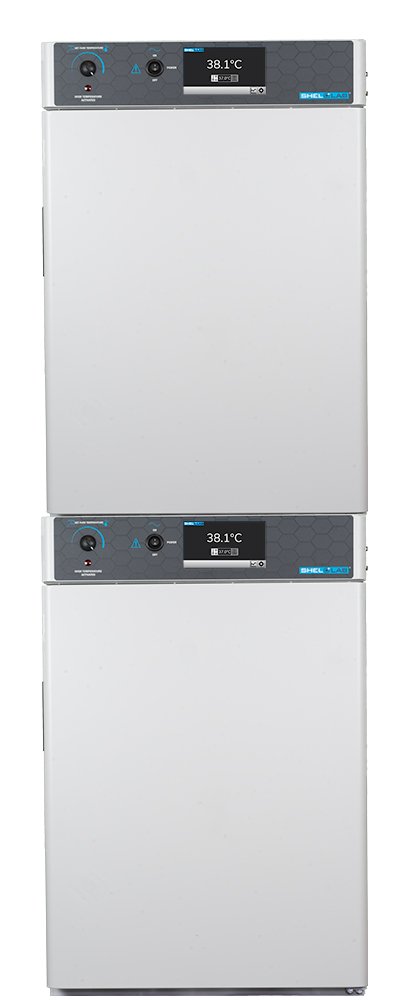

Sheldon - SMI12 - Microbiological Incubators, 11.7 Cu.ft, 332L,Touch Screen, 110-120V

Sheldon - SMI12 - Microbiological Incubators, 11.7 Cu.ft, 332L,Touch Screen, 110-120V

Sheldon - SMI12 - Microbiological Incubators, 11.7 Cu.ft, 332L,Touch Screen, 110-120V

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
Designed for simplicity and durability, SHEL LAB Microbiological Incubators withstand constant use without losing atmospheric control. Ideal for growth and storage of microbial cultures, cell cultures and general purposes, our Microbiological Incubators provide reliable testing conditions across the board.

Features

SMI12 SHEL LAB Microbiological Incubator is 11.7 cubic feet (332 L). This dual-stacked incubator is perfect for general cell culture and constant temperature applications.



The SHEL LAB Microbiological Incubator Series has been redesigned for optimum performance. Ranging in size from 2 to 11.7 cubic feet (57 to 331 liters), the SMI Series will fit any workspace.



NEW - Touch Screen Updates



The SHEL LAB SMI Series touch screen user interface received a complete overhaul!



Now featuring



  • Improved real-time clock accuracy
  • Updated screen color theme from blue to black
  • New access points for setpoint, alarms, and datalog export
  • Replaced some text items with screen icons for better clarity



Significantly updating SHEL LAB's Microbiological Incubators, the new 7-inch display provides advanced control functions. With on-screen graphing and real-time data, the new SMI controller provides the highest levels of sample security and traceability.



More features of the SMI incubators include:



  • 7" capacitive touch screen usable with laboratory gloves
  • Real-time clock for logging events
  • Door alarm
  • On-screen data graphing
  • 4-20mA output for a chart recorder or central facility recording
  • Interior outlet
  • Viewing door
  • Stainless steel interior
  • 24 month limited warranty

Specifications

Overview

  • Nominal Height:
    76" (193.04 cm)
  • Nominal Width:
    25.3" (64.26 cm)
  • Nominal Length:
    27.3" (69.34 cm)
  • Internal Height:
    26" (66.04 cm)
  • Internal Width:
    19.5" (49.53 cm)
  • Internal Length:
    20" (50.8 cm)
  • Capacity:
    11.7

Technical Data

  • Shelf Dimensions (W x D):
    18.3 x 18.3 (465 mm x 465 mm)
  • Unit Weight:
    316.0 lbs (143.3 kg)
  • Interior Metal:
    430 SST
  • Exterior Metal:
    Painted Cold Roll Steel
  • Operating Temperature Range:
    Amb +8°C - 70°C
  • Temperature Uniformity - Midrange:
    0.5°C
  • Temperature Stability - Midrange:
    0.1°C
  • Controller Type:
    Digital
  • Display Resolution:
    0.1°C
  • Power Voltage, Frequency and Current:
    100-120 VAC, 50/60 Hz, 12.0 Amps
  • Max HVAC Load:
    3720 BTUs/hr
  • Safety Certifications:
    UL 61010-1, EN 61010-1, CSA 61010-1, CE

Incubator Performance

  • Temperature Range:
    Ambient + 8°C to 70°C
  • Temperature Stabili:
    (+/-) 0.1°C @ 37°C
  • Temperature Uniformity:
    (+/-) 0.5°C @ 37°C

Electrical

  • Electrical - Amperage:
    6.0 Amps/4.0 Amps
  • Misc - Shelves:
    6 Standard, 12 Total
  • Misc - Maximum Weight per Shelf:
    35 lb/15.9 kg
  • Misc - Permitted Total Load:
    210 lb/95.3 kg
