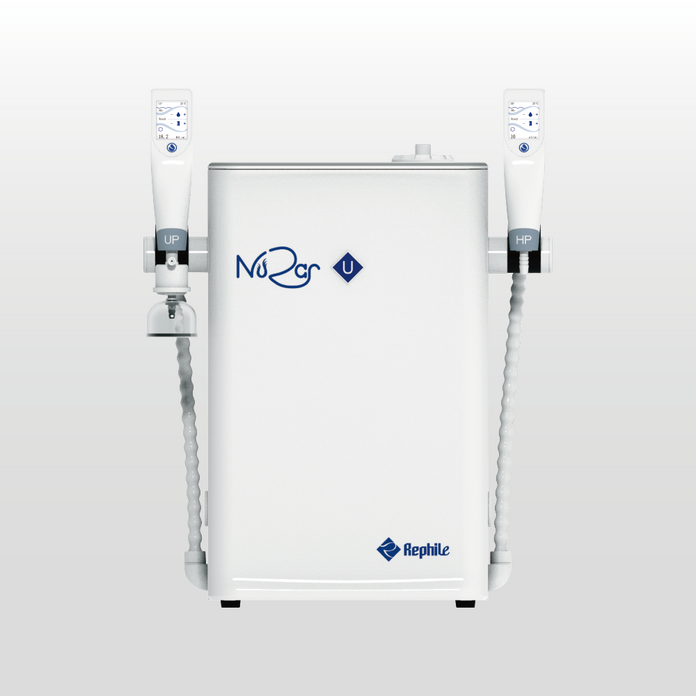

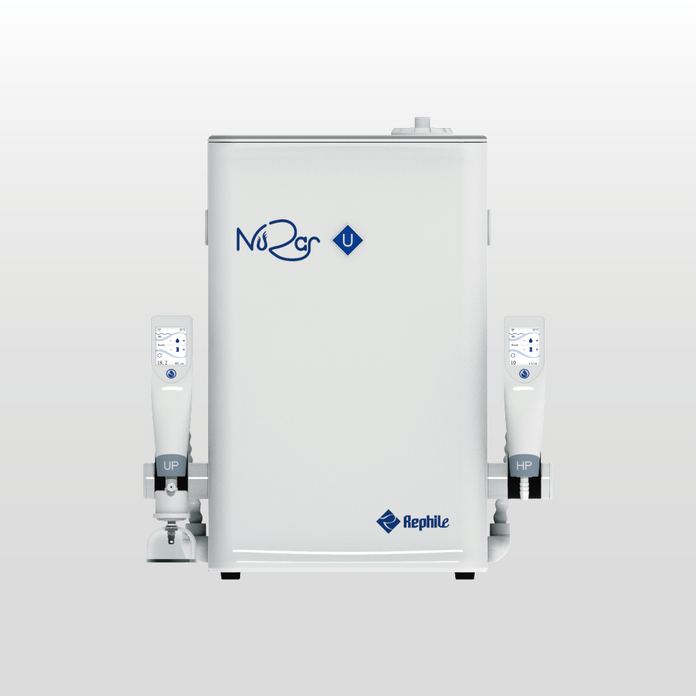

The NuZar water purification systems are compact and powerful. They are specifically designed for laboratories that demand a balance between cost of ownership and exceeding their purified water requirements.

NuZar ultrapure and RO water system, U is CE/RoHS certified. RephiLe provides full document support to meet the user's GMP, GSP, GAP, GCP, GLP requirements.

NuZar U Set System Includes:

• Main system
• RO membrane
• UV preinstalled
• NuZar P, H and U Pack cartridges and a 0.2 μm final filter
• Cleaning Pack
• 10L tank preinstalled
• Tank vent filter RATANKVN7
• Leak sensor

Key Features

• Simple installation and maintenance
• RFID tracking of consumables (RO Pack included) for enhanced management
• Easy to remove consumable access cover
• Automatic RO membrane cleaning cycles (Cl2 and pH cleaning)
• Mercury-free germicidal UVC LED lamp preinstalled in tank sanitation module
• Reliable water quality and stable system performance
• Automatic hourly recirculation of ultrapure water
• Stable RO permeability over a wide range of temperatures
• Diversion to drain if quality of RO permeate falls below a pre-set set-point
• Data traceability
• Automatic data backup for up to 2 years
• Easy data transfer through multiple interfaces, such as LAN, USB, etc.
• Low running cost
• Environmentally friendly. High recovery rate
• Self-maintenance functions for maximum RO membrane effectiveness and lifetime
• RFID record of cartridge history for predictable consumable replacements
• Highly-efficient cartridge
• Compact and small footprint
• An in-built single pretreatment P Pack
• Placement flexibility - on the bench, under the bench, or on a wall
• All-in-one design. Space-Saver

Main Components

Cartridge

• Optimized flow design to improve water quality stability & efficiency of polishing resins
• High pressure rated housings, proprietary sealing, and double O-ring design ensures operational confidence
• Cartridge color, label, and RFID recognition prevent incorrect installation

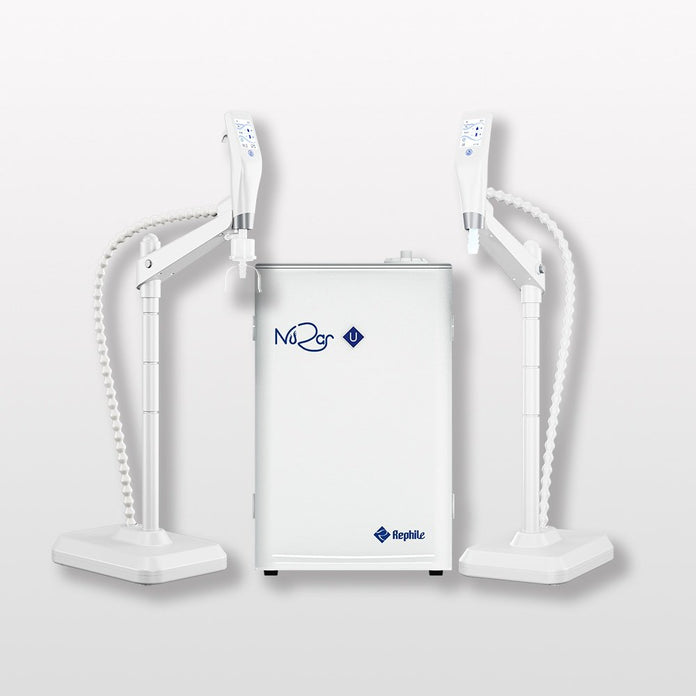

Ergonomic dispenser with 2.4" color touch screen

• Two dispensers for one system
• Intuitive display - water quality with temperature compensation, volumetric dispensing, and flow rate
• System alerts are displayed on the touch screen
• Effortless adjustment - dispensing rate (up to 2 L/min), manual and volumetric dispensing
• Choice of final filters: RephiBio and 0.2 μm final filter
• Two dispenser heights for the ultimate in flexibility

Storage Tank

• A 10 L integrated HDPE tank equipped with sanitization module, mercury-free germicidal UVC LED lamp (peak emission wavelength at 265 nm) preinstalled.
• Extendable to 30/60/100/350 L tank (with mercury-free tank sanitization module) if needed.

Main Applications

Ultrapure Water

• HPLC mobile phase preparation
• Preparation of reagent blank solutions
• Sample diluent for GC, HPLC, ICP-MS, or other analytical techniques
• Preparation of buffers and culture media for cell culture
• Preparation of molecular biology reagents, etc.

RO Pure Water

• Washing machine for glassware cleaning
• Feed water for laboratory animals
• Feed water for humidifiers, autoclaves, etc.
• Water supply for ultrapure water systems
• Hydroponics
