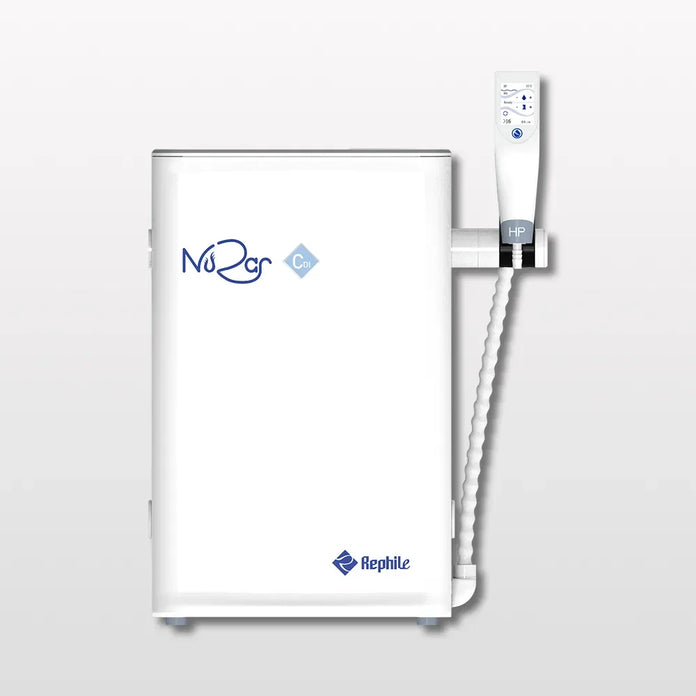

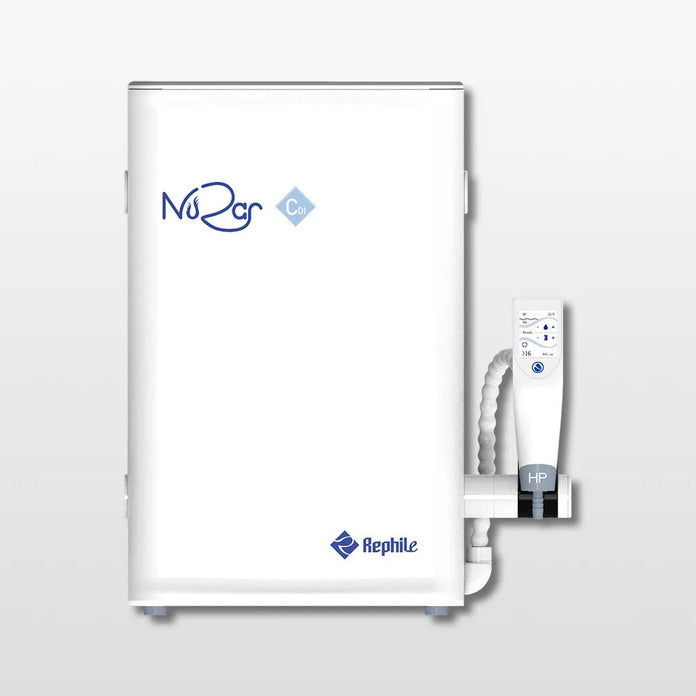

NuZar water system set, C-DI produces pure water (CLRW water) from RO, distilled or deionized water. The product water quality fulfills the critical needs within the clinical laboratory, in compliance with CLSI Clinical Laboratory Reagent Water (CLRW) quantitative specifications.

Features

The NuZar water purification systems are compact and powerful. They are specifically designed for laboratories that demand a balance between cost of ownership and exceeding their purified water requirements.



The system is CE/RoHS certified. RephiLe provides full documents support to meet user's GMP, GSP, GAP, GCP, GLP requirements.



NuZar C-DI Set System includes:



  • Main system
  • UV preinstalled
  • NuZar C Pack A cartridge and NuZar C Pack B cartridge



Simple installation and maintenance



  • RFID tracking of consumables for enhanced management
  • Easy to remove consumable access cover.



Data traceability



  • Automatic data backup for up to 2 years
  • Easy data transfer through multiple interfaces, such as LAN, USB, etc.



Low running cost



  • Environmentally friendly. High recovery rate
  • RFID record of cartridge history for predictable consumable replacements
  • Highly-efficient cartridge



Compact and small footprint



  • Placement flexibility - on the bench or on a wall
  • All-in-one design. Space-Saver



Main Components



1. Cartridge



  • Optimized flow design to improve water quality stability & efficiency of polishing resins
  • High pressure rated housings, proprietary sealing, and double O-ring design ensures operational confidence
  • Cartridge color, label, and RFID recognition prevent incorrect installation



2. Ergonomic dispenser with 2.4" color touch screen



  • One dispenser for one system
  • Intuitive display - water quality with temperature compensation, volumetric dispensing and flow rate
  • System alerts are displayed on the touch screen
  • Effortless adjustment - dispensing rate (up to 2 L/min), manual and volumetric dispensing
  • Choice of final filters: 0.2 μm final filter
  • Two dispenser heights for the ultimate in flexibility



3. Storage Tank



  • A submersible level sensor can be added to the feed water tank if needed



Main Applications



Pure Water (CLRW water)



  • Dilution of clinical reagents, samples and detergents
  • Automatic medical device and equipment rinsing
  • Reaction cuvettes cleaning
  • Feeding washing stations for probe tips and stirrer paddles
  • Temperature controlled Incubator baths
  • An interface between syringe and sample

Specifications

Overview

  • Nominal Height:
    24.5" (62.23 cm)
  • Nominal Width:
    16.3" (41.4 cm)
  • Nominal Length:
    12.2" (30.99 cm)

Feed Water Requirements

  • Operating Voltage:
    24 VDC
  • Input Voltage:
    100 - 240 VAC
  • Main System Power:
    < 190 W
  • Feed Water:
    EDI water, RO water, distilled water, deionized water
  • Operating Temperature:
    5 - 35°C
  • Feed Water Pressure:
    0 - 1 bar (0 - 15 psi)

Product Water Quality

  • Dispensing Rate:
    Up to 2 L/min
  • Resistivity (@25°C):
    >10 MΩ·cm (Typically >16 MΩ·cm)
  • TOC:
    < 30 ppb
  • Particles:
    No Particles with size > 0.22 μm (with a 0.2 μm final filter or RephiBio filter)
  • Silica:
    < 5 μg/L
  • Bacteria:
    < 1 CFU/ml

Main System Specifications

  • Weight (Approximate) - Net:
    18 kg
  • Weight (Approximate) - Gross:
    27 kg
