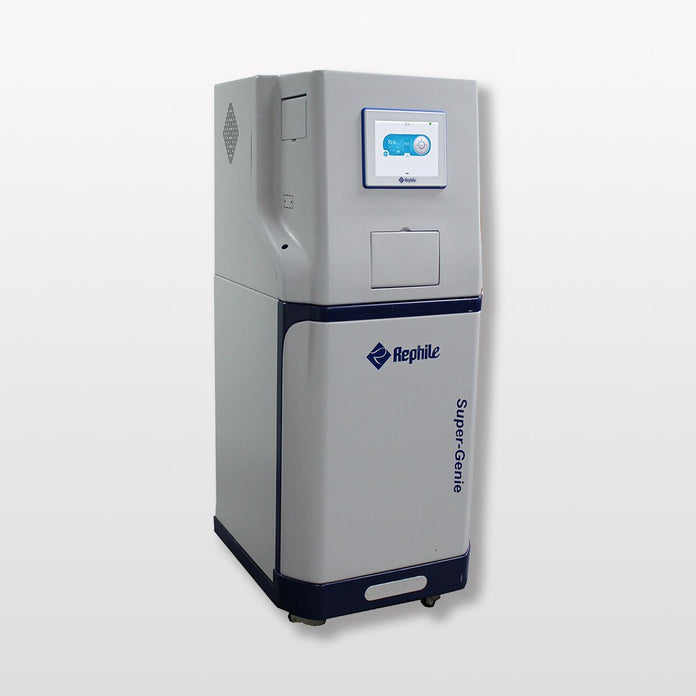

The Super Genie R Water System is specifically designed to produce large volumes of RO water from tap water. The system is manufactured in an ISO 9001:2015 certified manufacturing site and CE marked.

Super Genie R System includes:

• Main system
• RO membranes (preinstalled)
• Dispensers (optional)
• 100L attached tank optional

Design & Functions

• The system is created to serve as a core workstation generating purified water for a single lab facility or several labs. It produces large volumes of RO water directly from tap water.
• The system provides overall control and monitoring within the whole water purification network to ensure 100% reliability right from the very beginning. External feed tank, booster pump, prefiltration, distribution pump, and leak protector are all controlled by the main system.
• The all-in-one design can optimize the use of lab space and have a high degree of integration.
• The system can be equipped with multiple remote dispensers to dispense RO water.
• Emergency bypass loop sends water through the polishing cartridge in case of a power outage or system downtime to supply critical applications with non-stop water supply for hours.
• RephiLe provides full document support to meet the user's GMP, GSP, GAP, GCP, GLP requirements.

Easy Operation and Maintenance

• Automatic RO rinsing program. No special operation is required when a new RO membrane is installed.
• Manual and volumetric dispensing, adjustable dispensing rate, and water quality monitoring.
• Compact dispensers allowing one-handed operation and control with gloves and wet hands. Height adjustable and 360° rotatable on an anti-skid base.
• To make maintenance more convenient, no tools are needed in replacing consumables. All consumables are at the front of the system for easy replacement.
• Purification packs in fool-proof design with different colored labels ensure error-free and risk-free installation.
• Auto-alarm and self-diagnosis functions make users identify and solve problems easily.
• Details of daily operation parameters and consumables status are stored and displayed on an 8-inch color touch screen monitor. Operation data is stored for up to two years, which meets traceability requirements.
• Easy mobility due to locking wheels makes installation and maintenance convenient.

Parts

1. Pretreatment

• Carefully arranged pretreatment module to protect RO membranes and other downstream devices with the maximum easiness of installation and maintenance.

2. Reverse Osmosis

• The automatic bypass sends the RO water to the drain if it does not meet the preset quality standard.
• Environmentally friendly. The RO drain water is reused to increase the water yield.

3. UV Lamp

• An environmentally friendly in-line mercury-free germicidal UV lamp is applied to kill bacteria.

4. Tank

• A 100L integrated tank is standard and upgradable to other sizes.
• The large storage tanks integrate distribution modules including loop UV lamp, loop filter, loop resistivity sensor, and so on. Provides high-quality and stable distributed water through the loops.
• The sanitization module can keep bacteria in storage tanks at a low level by UVC LED lamp.
• Spray ball (optional) makes tank cleaning automated and easy.

5. Leak Protector

• The leak protector incorporated can prevent damage from a water leakage by shutting the feed water off in case of unexpected leaking.
