Genie U 32 system set with TOC and tank recirculation.

Features

Genie U produces ultrapure water (Type I water) and RO water from tap water directly. It offers desired solutions for research professionals who work with varieties of applications utilizing Type I ultrapure and RO pure water in the lab. Quality of ultrapure water meets or exceeds ASTM, CLSI, CAP, and ISO Type I water standards. The system is CE/RoHS certified with supporting documents to meet the user's GMP, GSP, GAP, GCP, GLP requirements.

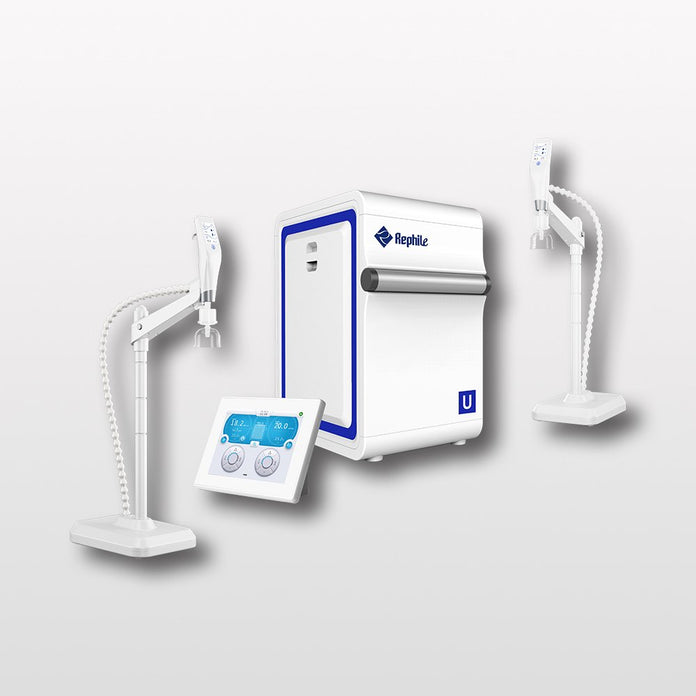

Genie U Set System Includes

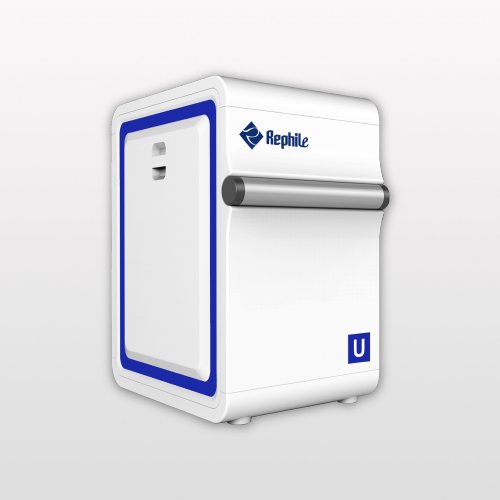

  • Main system

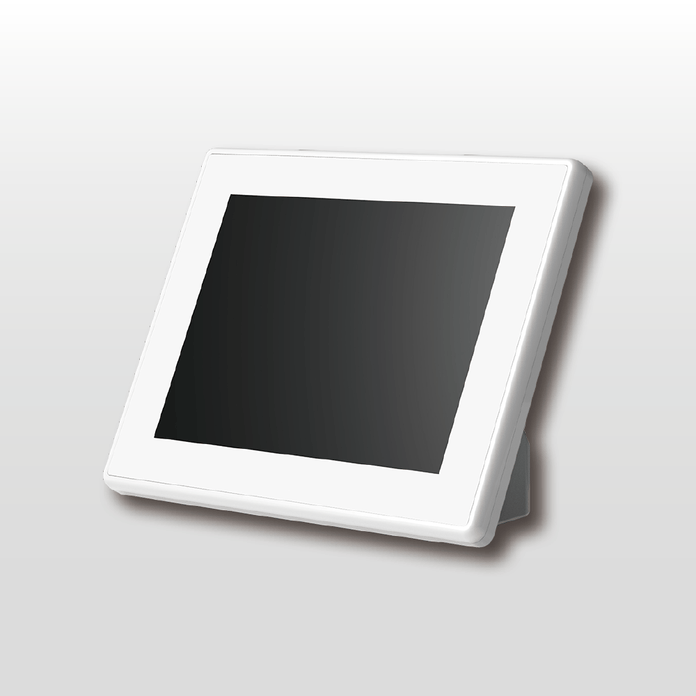

  • Control Console

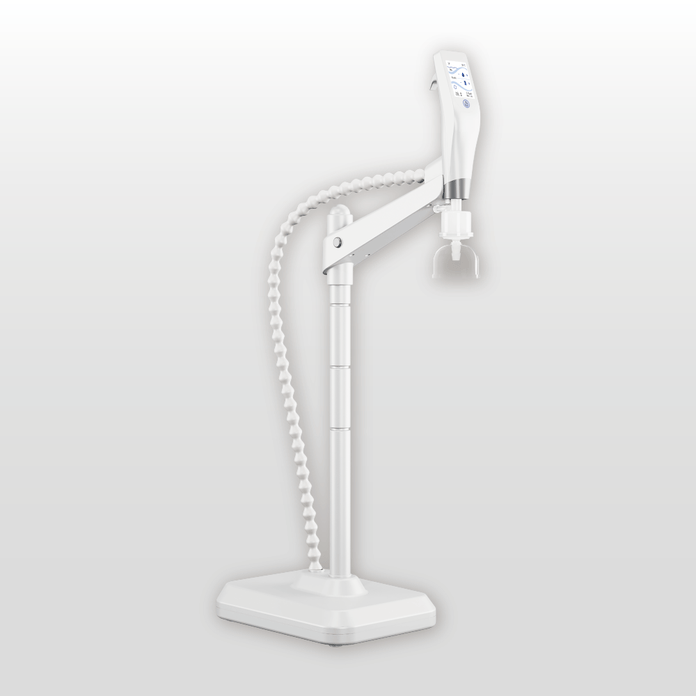

  • One Dispenser
  • RO membranes
  • UV preinstalled
  • Genie Cleaning Pack
  • Four cartridges and a final filter
  • 30L tank and vent filter
  • Leak protector
  • RR700T101 for tank recirculation models

Specifications

Overview

  • Nominal Height:
    21.3" (54.1 cm)
  • Nominal Width:
    12.6" (32.0 cm)
  • Nominal Length:
    17.3" (43.94 cm)
  • Internal Height:
    24" (60.96 cm)
  • Internal Width:
    8.3" (21.08 cm)
  • Internal Length:
    11.4" (28.96 cm)

Feed Water Requirements - Water Flow Rate

  • Feed:
    Tap water, Conductivity < 2000 μS/cm (1000 ppm)
  • Product:
    Ultrapure & RO pure water
  • Feed Water Pressure:
    1 - 6 bar (15 - 90 psi)
  • RO Production Rate (25°C):
    32 L/hr
  • Dispensing Rate:
    Up to 2.0 L/min

Product Water Quality

  • RO Conductivity (25°C):
    typically < 20 μS/cm (feed water < 500 μS/cm)
  • RO Rejection:
    97 to 98% ionic rejection (new RO cartridge), > 99% organic rejection, > 99% particulates & bacteria rejection
  • Ultrapure Water Resistivity (25°C):
    18.2 MΩ·cm
  • Ultrapure Water TOC:
    < 2 ppb
  • Particles in Ultrapure Water (> 0.2 μm):
    No particles (with a 0.2 μm final filter or RephiBio)
  • Microorganisms in Ultrapure Water:
    < 0.001 cfu/ml (with a 0.2 μm final filter or RephiBio)
  • Pyrogens (endotoxins) in Ultrapure Water:
    < 0.001 Eu/ml (with a RephiBio filter)
  • RNase in Ultrapure Water:
    < 0.5 pg/ml (with a RephiBio filter)
  • DNase in Ultrapure Water:
    < 10 pg/ml (with a RephiBio filter)
  • Product Water in Tank Resistivity (@25°C):
    > 1MΩ·cm (default), adjustable (for tank recirculation models)

Main System Specifications

  • Weight:
    20 kg
  • Input Voltage:
    110 - 240 VAC
  • Operating Voltage:
    24 VDC
  • Main System Power:
    < 200 W
