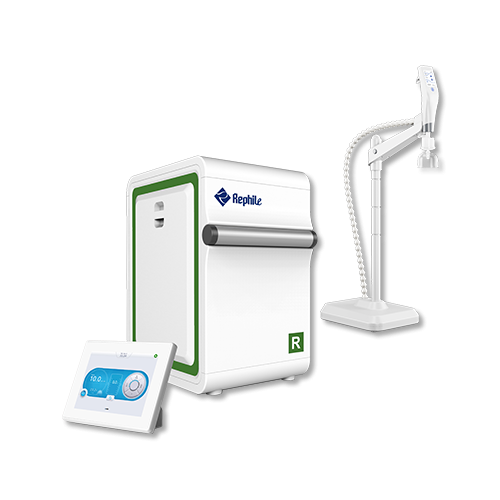

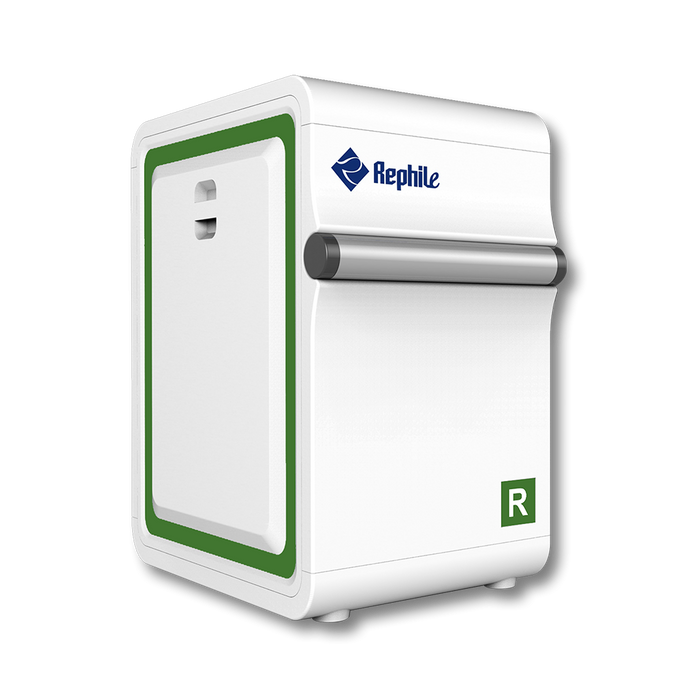

Genie R RO Lab Water System produces reverse osmosis (RO) laboratory-grade water from tap water directly. It applies high recovery reverse osmosis (RO) technology to produce pure water for general laboratory needs with easy maintenance and low running costs. Genie R offers desired solutions for research professionals who work with varieties of applications utilizing RO pure water in the lab.

The system is CE/RoHS certified. RephiLe provides full documents support to meet user's GMP, GSP, GAP, GCP, GLP requirements.

Genie R System Includes:

• Main system
• Control Console
• RO membranes
• Genie Cleaning Pack

Design & Functions

• The system can be linked to multiple dispensers via wired or wireless. "1+N" Mode
• Automatic temperature compensation allows RO production rate stable over a wide range of temperature
• Fully automated control system has cleaning, rising, flush and many other functions
• System automatically rinses a new RO membrane. User does not need to set special rinse program for a new RO membrane
• A bypath automatically sends the RO water to the drain if it does not meet a preset quality standard. The RO drain water is reused to increase the water yield thus it is more environmentally friendly
• The main system can be tucked away to save precious bench space since it fits well to be wall-mounted, set on the shelf or under the sink
• The Chlorine cleaning and pH cleaning functions keep the maintenance easier and ensure optimal water quality
• Leak protector is incorporated inside to shut the feed water off to prevent damage from leakage
• A tank sanitization module can be used to effectively keep microbial growth at a lower level by LED UVC light
• Tank recirculation model guarantees water quality in the tank

Easy Operation and Maintenance

• Performance history, alarms and alerts information, maintenance data of consumables as well as key parts are logged and traceable from a simple RFID scan at installation
• RFID tags ensure perfect placement of consumables and trace their performance
• Water quality, operation parameters, the status of the system, dispensers, components, and peripheral devices are stored and displayed on the large color touch screen monitor
• Signature verification for maintenance and service

Cartridges and Parts

1. Cartridge

• Pre-filtration pack removes most large particles, chlorine, calcium or organic compounds to protect RO membrane to extend their usable life
• AC Pack contains special activated carbon to remove organic impurities and free chlorines

2. Control console

• 8-inch console controls system and peripheral devices (Such as leak protector and tank sanitization module). All operations can be done on the console by touching the screen
• The control console can be placed on the bench or inside a drawer for further flexibility and space saving
• The console screen and dispenser screens are water-drop proof. You can operate the console and dispenser with latex gloves on
• The system has two level password protection on display menu for safety purposes

3. Dispenser

• The volumetric function can automatically deliver the water volume you need once it is set up
• With the adjusting button on a control console or a dispenser, you can dispense water at the flow rate you need up to 2 liters per minute
• A dispenser handle can be set on the dispenser stand, on the main system, or even hanging onto other places to free up maximum bench space

4. Level sensor

• The tank integrated continuous level sensor measures water level within the tank and manages the system to start or stop producing water automatically based on requirements
• Water level and quality inside the tank can be viewed from the control console
