Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
Genie G 5 system set, with TOC.

Features

Genie G ultrapure water System produces ultrapure water (Type I water) and EDI water (Type II water) from tap water directly. Quality of ultrapure water and EDI water meet or exceed ASTM, CLSI, CAP, and ISO Type I water and Type II water standards, respectively. The system is CE/RoHS certified with supporting documents to meet user's GMP, GSP, GAP, GCP, GLP requirements.

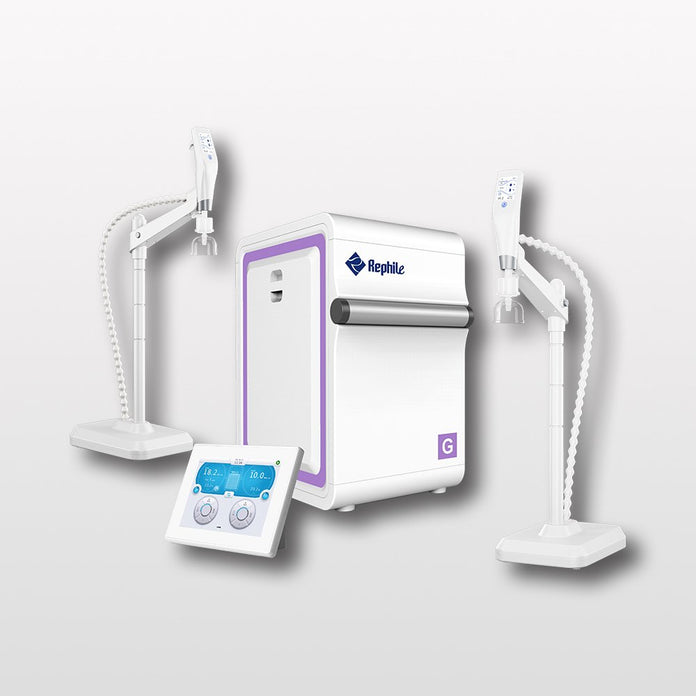

Genie G Set System Includes

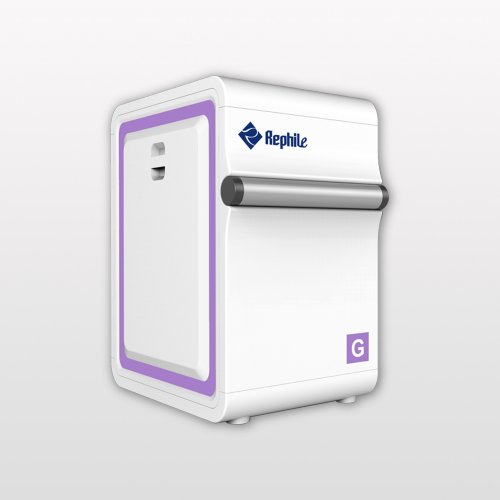

  • Main system

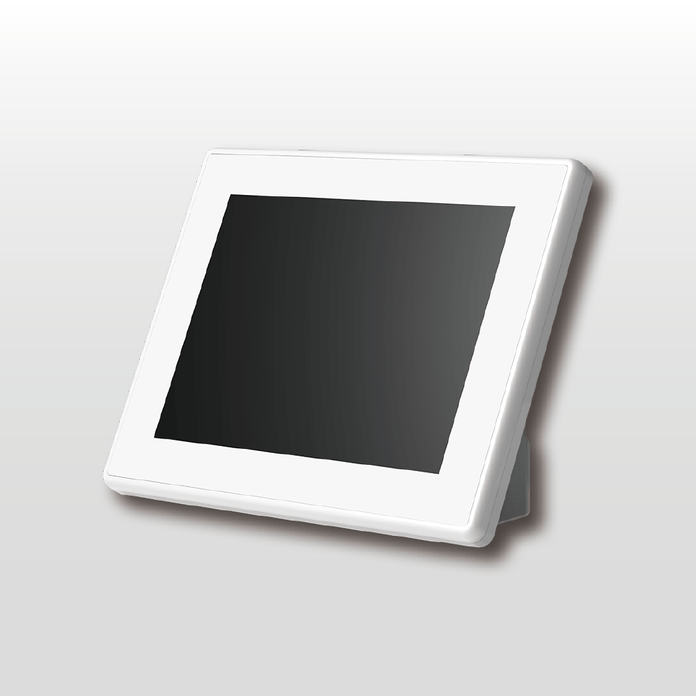

  • Control Console

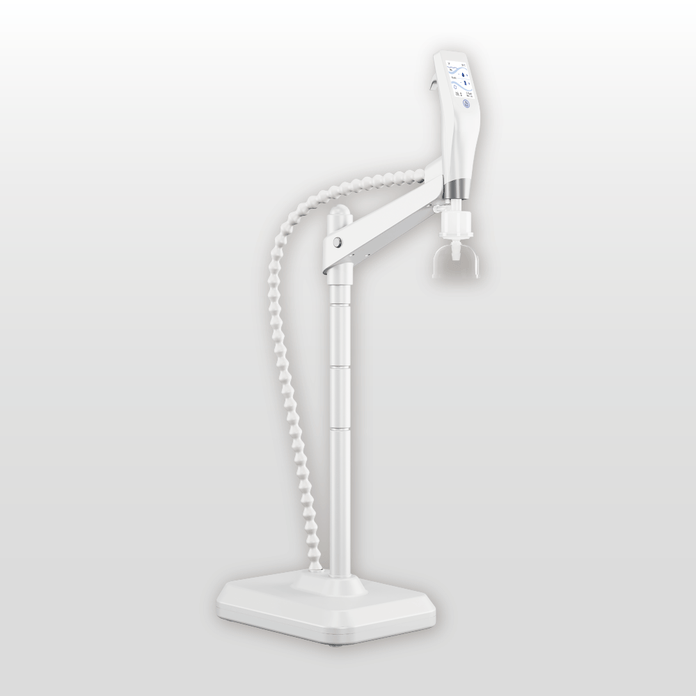

  • One Dispenser
  • RO membranes
  • Genie Cleaning Pack
  • UV preinstalled
  • Three cartridges and a final filter
  • 30L tank and vent filter
  • Leak protector

Specifications

Overview

  • Nominal Height:
    21.3" (54.1 cm)
  • Nominal Width:
    12.6" (32.0 cm)
  • Nominal Length:
    17.3" (43.94 cm)
  • Internal Height:
    24" (60.96 cm)
  • Internal Width:
    8.3" (21.08 cm)
  • Internal Length:
    11.4" (28.96 cm)

Feed Water Requirements - Water Flow Rate

  • Feed:
    Municipal water, Conductivity < 2000 μS/cm (1000 ppm)
  • Product:
    Ultrapure & EDI pure water
  • Feed Water Pressure:
    1 - 6 bar (15 - 90 psi)

Product Water Quality

  • RO Rejection:
    97 to 98% ionic rejection (new RO cartridge), > 99% organic rejection, > 99% particulates & bacteria rejection
  • EDI Production Rate (25°C):
    5 L/hr
  • Dispensing Rate:
    Up to 2.0 L/min
  • EDI Resistivity (25°C):
    > 5 MΩ·cm (typically 10 - 16 MΩ·cm)
  • EDI Water TOC:
    < 30 ppb
  • Ultrapure Water Resistivity (25°C):
    18.2 MΩ·cm
  • Ultrapure Water TOC:
    < 2 ppb
  • Particles in Ultrapure Water:
    No particles (with a 0.2 μm final filter or RephiBio)
  • Microorganisms in Ultrapure Water:
    < 0.001 cfu/ml (with a 0.2 μm final filter or RephiBio)
  • Pyrogens in Ultrapure Water:
    < 0.001 Eu/ml (with a RephiBio filter)
  • RNase in Ultrapure Water:
    < 0.5 pg/ml (with a RephiBio filter)
  • DNase in Ultrapure Water:
    < 10 pg/ml (with a RephiBio filter)
  • Product Water in Tank Resistivity (@25°C):
    > 1MΩ·cm (default), adjustable (for tank recirculation models)

Main System Specifications

  • Weight:
    20 kg
  • Input Voltage:
    110 - 240 VAC
  • Operating Voltage:
    24 VDC
  • Main System Power:
    < 200 W
