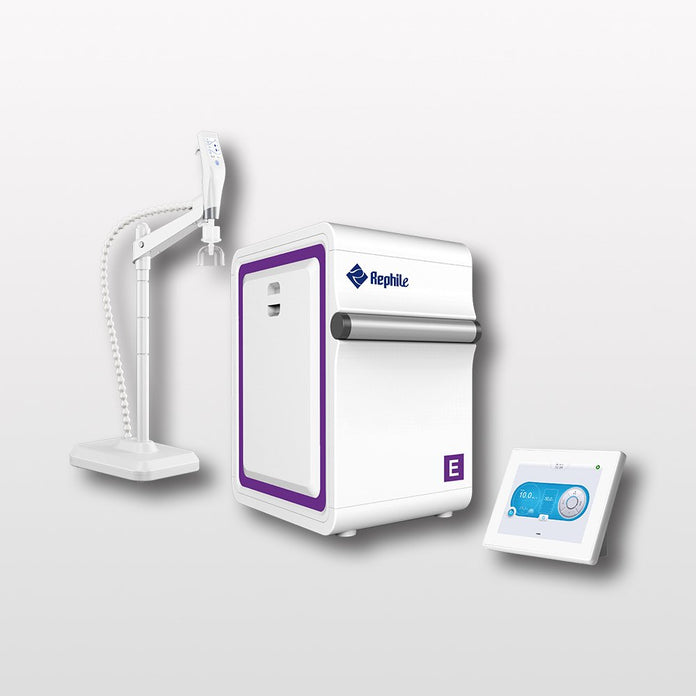

Rephile - RG0E0150RK - Genie E 15 EDI Lab Water System with Tank Recirculation Set
Features
Genie E produces EDI water (Type II water) from tap water directly.
The resistivity of the product water is above 5 MΩ•cm at 25°C, which meets or exceeds Type II water quality as defined by ASTM, CAP, CLSI and ISO 3696 / BS 3997 and also complies with the purified water requirements from the European and U.S. Pharmacopoeia. The system is CE/RoHS certified with supporting documents to meet user's GMP, GSP, GAP, GCP, GLP requirements.
Genie E Set System Includes

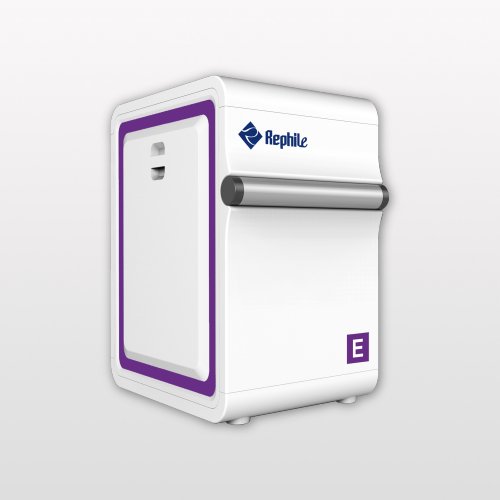

- Main system

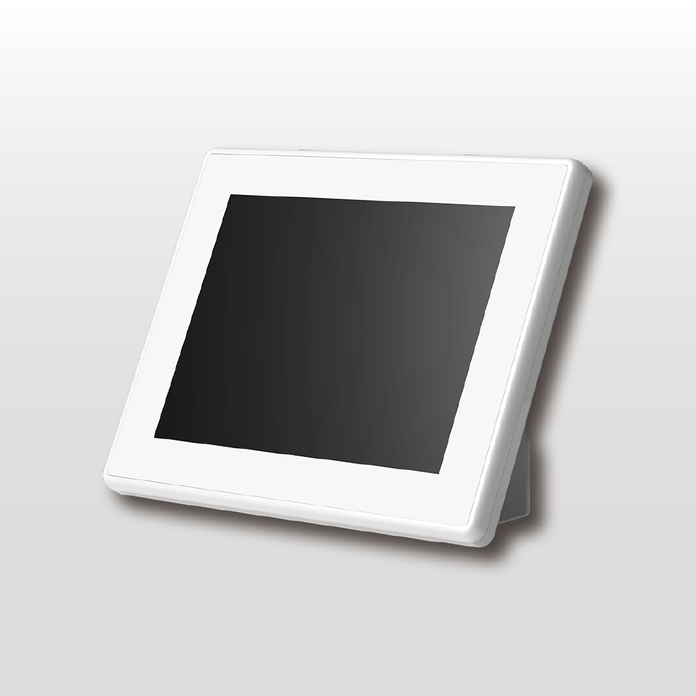

- Control Console
- RO membranes
- Genie Cleaning Pack
- 30L tank and vent filter
- UV preinstalled
- Two cartridges
- Leak protector
- RR700T101 for tank recirculation models
Specifications
Overview
-
Nominal Height:21.3" (54.1 cm)
-
Nominal Width:12.6" (32.0 cm)
-
Nominal Length:17.3" (43.94 cm)
-
Internal Height:24" (60.96 cm)
-
Internal Width:8.3" (21.08 cm)
-
Internal Length:11.4" (28.96 cm)
Feed Water Requirements - Water Flow Rate
-
Feed:Municipal water, Conductivity < 2000 μS/cm (1000 ppm)
-
Product:EDI pure water
-
Feed Water Pressure:1 - 6 bar (15 - 90 psi)
Product Water Quality
-
EDI Production Rate (25°C):15 L/hr
-
Dispensing Rate:Up to 2.0 L/min
-
EDI Resistivity (25°C):> 5 MΩ·cm (typically 10 - 16 MΩ·cm)
-
TOC:< 30 ppb
-
Product Water in Tank Resistivity (@25°C):>1MΩ·cm (default), adjustable (for tank recirculation models)
Main System Specifications
-
Weight:20 kg
-
Input Voltage:110 - 240 VAC
-
Operating Voltage:24 VDC
-
Main System Power:< 200 W
