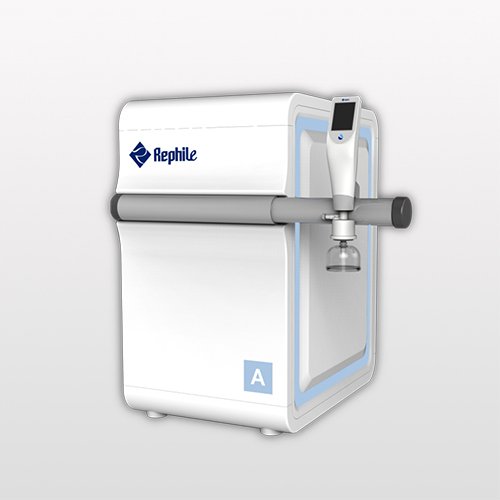

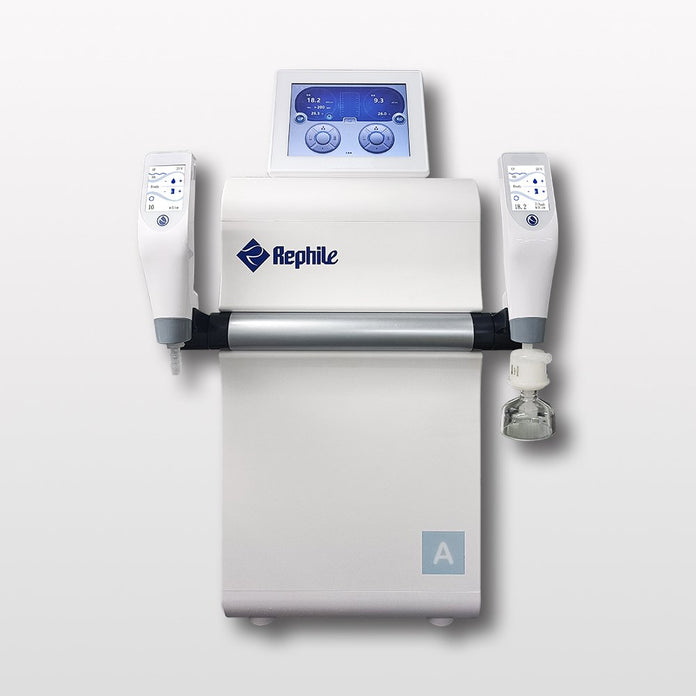

Rephile - RG0A04000K - Genie A Ultrapure & RO Lab Water System Set
Features
Genie A produces ultrapure & RO lab water from tap water directly. It is an ideal choice for users who need up to 20 liters of ultrapure water or RO water per day. Quality of ultrapure product water meets or exceeds ASTM, CLSI, CAP, and ISO Type I water standards. The system is CE/RoHS certified with supporting documents to meet the user's GMP, GSP, GAP, GCP, GLP requirements.
Genie A is very compact in design, and no storage tank is needed.
Genie adept Set System Includes
- Main system

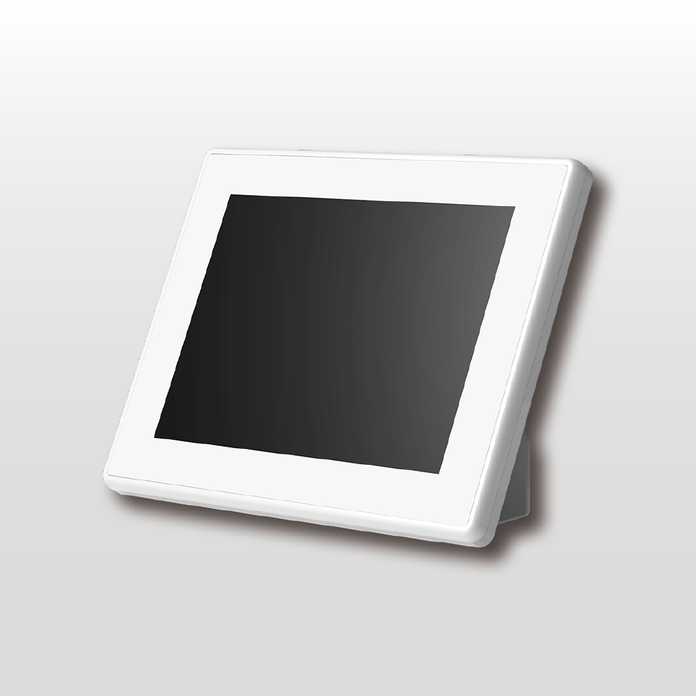

- Control Console
- RO membranes
- Genie Cleaning Pack

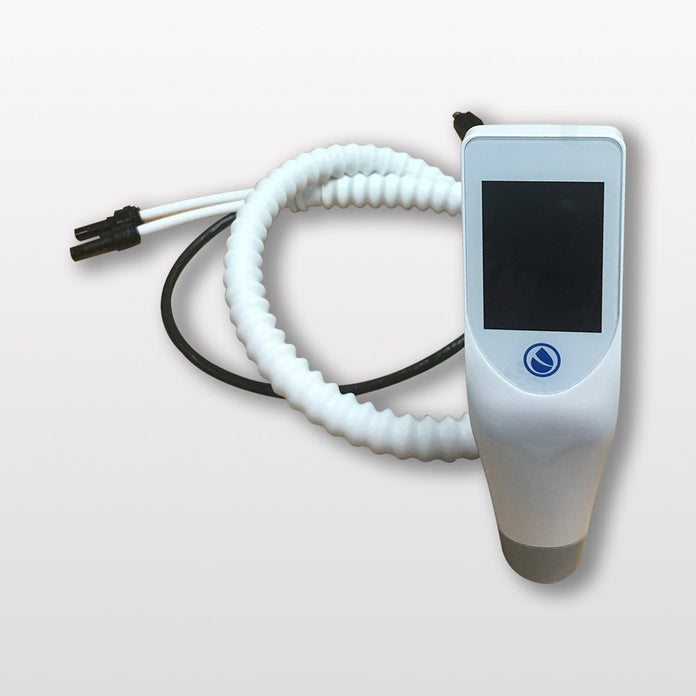

- One Dispenser 3
- UV preinstalled
- Two cartridges and a final filter
- Leak protector
Specifications
Overview
-
Nominal Height:21.3" (54.1 cm)
-
Nominal Width:12.6" (32.0 cm)
-
Nominal Length:17.3" (43.94 cm)
-
Internal Height:24" (60.96 cm)
-
Internal Width:8.3" (21.08 cm)
-
Internal Length:11.4" (28.96 cm)
Feed Water Requirements - Water Flow Rate
-
Tap Water:Municipal water, Conductivity < 1000 μS/cm (500 ppm)
-
Product:Ultrapure & RO pure water
-
Feed Water Pressure:1 - 6 bar (15 - 90 psi)
Product Water Quality
-
RO Production Rate (25°C):32 L/hr
-
Dispensing Rate:0.6 L/min
-
RO Water Conductivity (25°C):typically < 20 μS/cm (feed water conductivity < 500 μS/cm)
-
RO Rejection:97 to 98% ionic rejection (new RO cartridge), > 99% organic rejection, > 99% particulates & bacteria rejection
-
Ultrapure Water Resistivity (25°C):18.2 MΩ·cm
-
Ultrapure Water TOC:< 2 ppb
-
Particles in Ultrapure Water (> 0.2 μm):No particles (with a 0.2 μm final filter or RephiBio)
-
Microorganisms in Ultrapure Water:< 0.001 cfu/ml (with a 0.2 μm final filter or RephiBio)
-
Pyrogens (endotoxins) in Ultrapure Water:< 0.001 Eu/ml (with a RephiBio filter)
-
RNase in Ultrapure Water:< 0.5 pg/ml (with a RephiBio filter)
-
DNase in Ultrapure Water:< 10 pg/ml (with a RephiBio filter)
Main System Specifications
-
Weight:19 kg
-
Input Voltage:110 - 240 VAC
-
Operating Voltage:24 VDC
-
Main System Power:< 200 W
