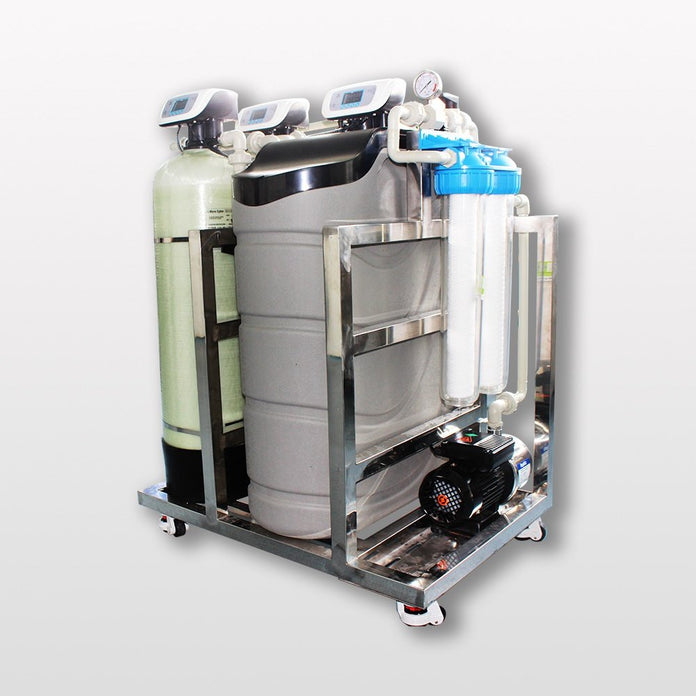

Rephile - LABKT1000 - RephiTEKT X Prefiltration Cart
Features
RephiTEKT X is an all-in-one pretreatment cart that integrates quartz sand sediment filter, activated carbon, softener, PP particle filter and booster pump (optional) together. If selected, installation of the prefiltration device is very easy and fully utilized Super Genie's control function. It is designed to remove particles, colloids, organic compounds, microorganisms, etc. to protect RO membranes and downstream purification components in a water system, thereby ensuring reliable system operation, improved system service life and lower operating cost.
- Speed-fit push-in connections. Quick and convenient installation and easy cartridge exchange
- Carefully selected high capacity purification medias for guaranteed quality
- Inlet and outlet pressure indicators for monitoring the cartridge life
- Highly compact set-up and space-saving
Purification Technologies
- Quartz sand for removing colloids, pigment, heavy metal ions.
- Activated carbon for free chlorine reduction and bacteriostatic protection
- Softener for removing CaCO3 or MgCO3 crystals to reduce the hardness of tap water.
- PP particle filters for removing large suspended particles, colloids and larger color causing organics in feed water.
Suitable for Super Genie water systems:
- Super Genie G
- Super Genie U
- Super Genie E
- Super Genie R
Specifications
Overview
Technical Data
-
Motor/Voltage:220 V, 50 HZ/220 V, 60 HZ
-
Power (W):600
-
Operate Temperature (°C):5 - 45
-
Flow Rate (L/h):1000
-
Dimensions L x D x H:90 x 70 x 120 cm (35.4 x 27.6 x 47.2 in)
-
Weight:230 kg
-
Inlet Diameter:1" NPTF
-
Outlet and Drain Diameter:3/4" NPTF
