This VIP ECO series of compact, ultra-low temperature (-86°C) chest freezers is ideal for personal or individual clinical usage. The series makes use of a natural refrigerant, reducing environmental impact and delivering optimal storage in a compact footprint without compromising performance. The VIP ECO chest freezer has a sophisticated door latch with a magnetic gasket seal for secure closure of the outer door and cold air loss prevention.

Product Range

SKU Name

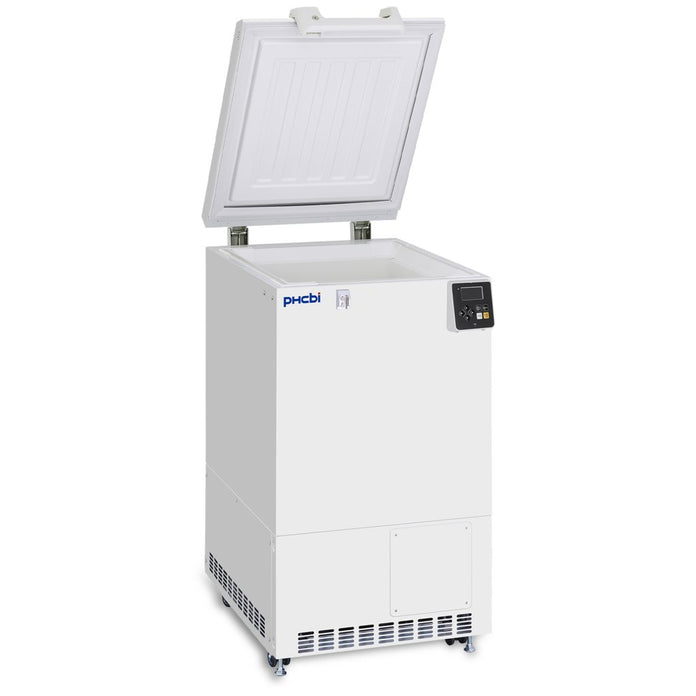

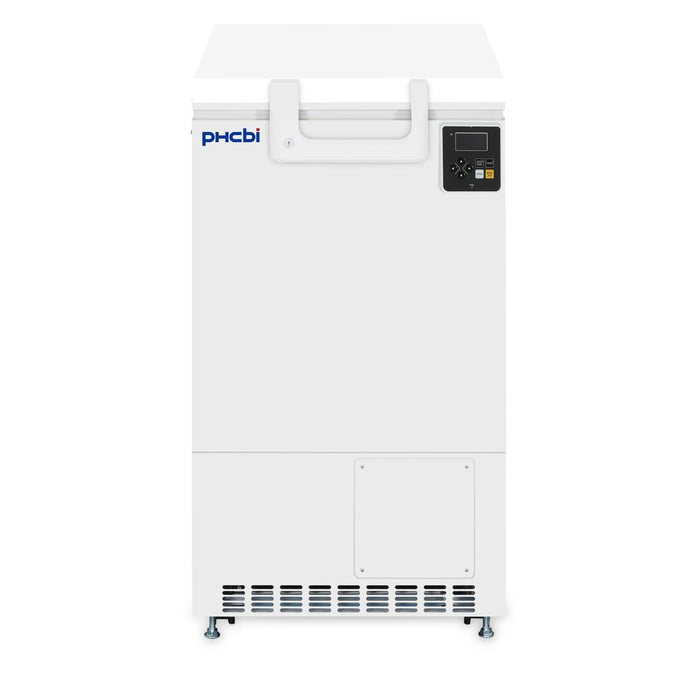

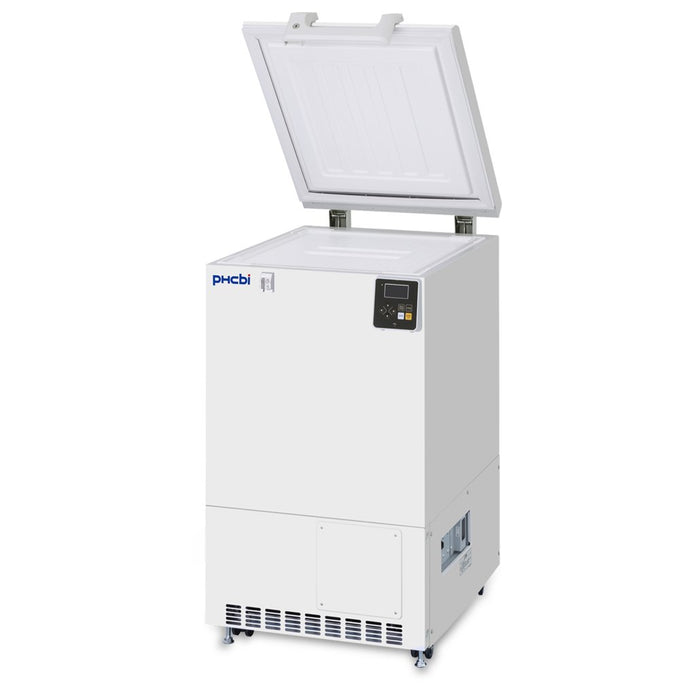

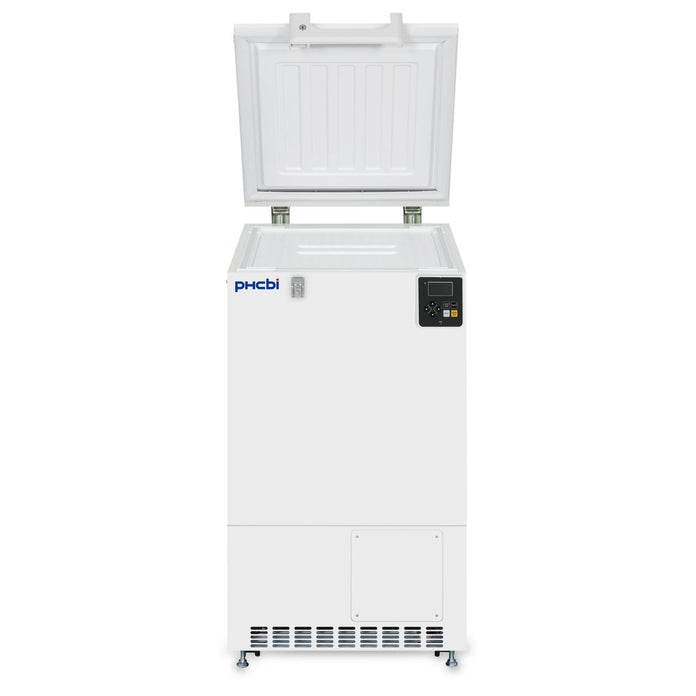

MDF-DC102VH-PA PHCbi - MDF-DC102VH-PA - VIP ECO Natural Refrigerant -86°C Chest Freezer

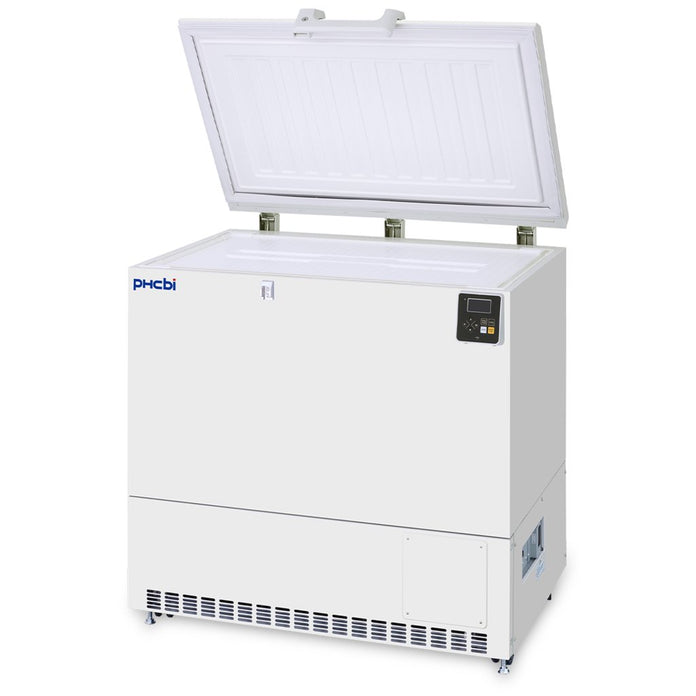

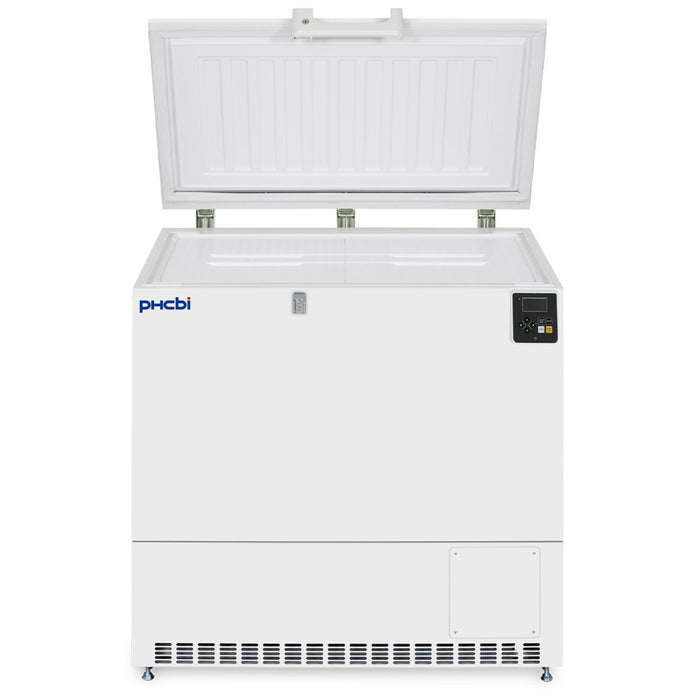

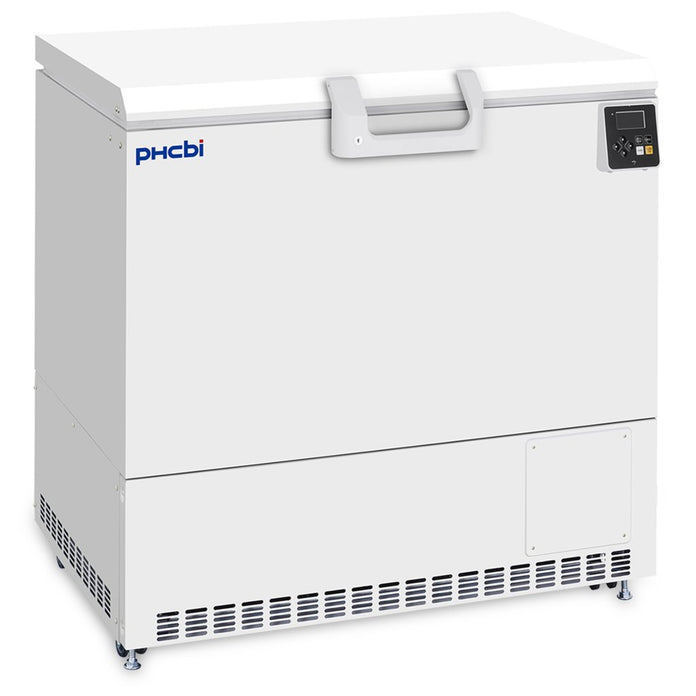

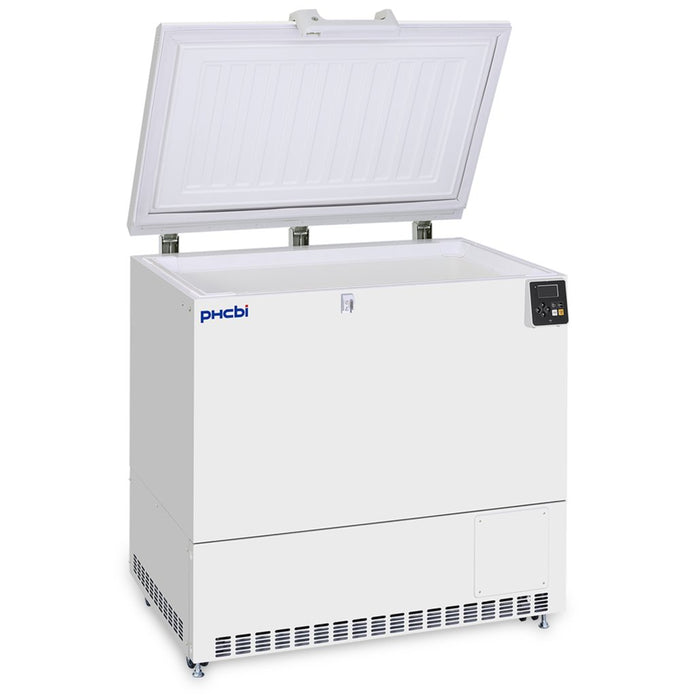

MDF-DC202VH-PA-PHCbi PHCbi - MDF-DC202VH-PA - VIP ECO Natural Refrigerant -86°C Chest Freezer

Features

Purpose-Built Cold Chain Storage


PHCbi brand ULT freezers are engineered from the inside out to create, maintain, and restore precise temperatures. Our purpose-built ultra-low temperature freezers are designed for temperature uniformity and stability necessary for safe, long-term storage of high value products.


Performance and Reliability


From the inside out, VIP ECO freezers are designed for optimal storage and operation. Next-generation engineering harnesses the power of a high-output compressor technology to yield greater temperature uniformity.


Door Latch and Magnetic Gasket Combined


The VIP ECO Series ultra-low temperature compact chest freezer is designed with a specialized door latch and magnetic gasket to ensure complete closure of the outer door, preventing cold air leakage.


Security Control and Monitoring


The control panel with organic EL display is positioned close to the top to help enhance ease of use. The enhanced visibility makes user operation simple and intuitive. A logging function is included, allowing users to save temperature/alarm history data and transfer data using the USB port.


Energy Efficient, Natural Refrigerants


This natural refrigerant -86°C chest freezer minimizes environmental impact without jeopardizing ultra-low temperature freezer performance. Naturally occurring mixed hydrocarbon (HC) refrigerants have minimal effect on the environment and are compliant with environmental legislation for climate control. These refrigerants also provide efficient cooling without compromising performance, ambient tolerance, and recovery speeds following door openings.


Temperature performance and energy management are balanced effectively to ensure high performance and energy efficiency.

Specifications

Overview

  • Nominal Height:
    39.1" (99.31 cm)
  • Nominal Length:
    27.1" (68.83 cm)
  • Internal Height:
    16.8" (42.67 cm)
  • Internal Length:
    19.3" (49.02 cm)

Technical Data

  • Insulation:
    Rigid polyurethane foam (PUF) + VIP Plus Vacuum insulated panel
  • Access Port:
    2, Back wall and bottom
  • Refrigerant:
    Mixed HC Refrigerant (R-600, R-170, R-50)
  • Temperature Control Range:
    -40°C to -86°C in 1° increments
  • Alarms:
    High temperature, low temperature, power failure, remote alarm
  • Cooling Performance:
    -86°C center of chamber (ambient temperature 30°C, no load)
  • Temperature Control System:
    Microcomputer control system
  • Sound Level:
    52 dB(A)
