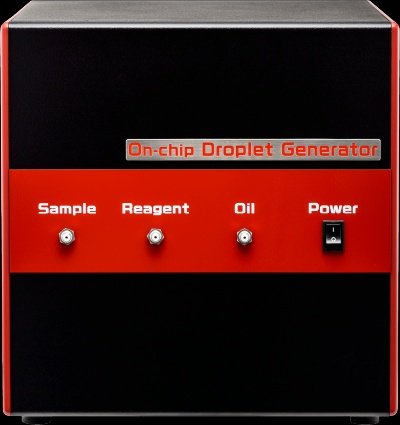

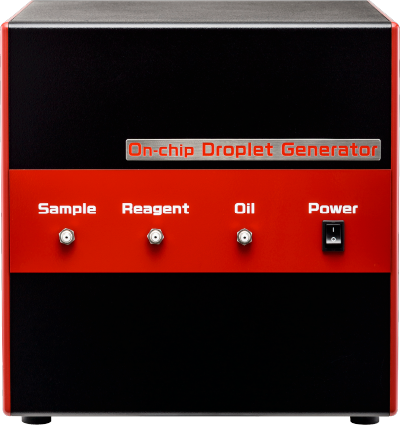

PHCbi - 60003-A - On-Chip Droplet Generator
Features
On-chip Droplet Generator allows mass production of micrometer-sized water-in-oil (W/O) emulsion droplets and gel microdrops (GMDs) with a unique microfluidic chip. The individual droplets function as miniaturized vessels for reactions such as microbial/cell cultivation and genetic analysis. Droplet technology is now recognized as a prominent high-throughput screening method allowing single cell analysis or simultaneous assay of more than 1 million samples.
Easy adjustment of droplet size
Droplet size can be easily adjusted between 70 µm and 150 µm in diameter by regulating the pressure applied to the sample and oil reservoirs.
See “Reagents/Chips” page for details for each microfluidic chip used for Droplet Generator
Real-time monitoring of droplet generation
Droplet size can be viewed and monitored real-time with the supplied monitoring device.
Specifications
Overview
-
Nominal Height:16.93" (43.0 cm)
-
Nominal Width:8.46" (21.49 cm)
-
Nominal Length:12.20" (30.99 cm)
Monitoring Unit
-
Accessories:Monitor camera, Peltier unit, Controller
-
Temperature range:ー5 ～ 70℃
-
Ambient environment:Temperature 5 – 40˚C, humidity ≤ 85% RH
-
Power input:DC24 V
-
Power consumption:6.5 A max
