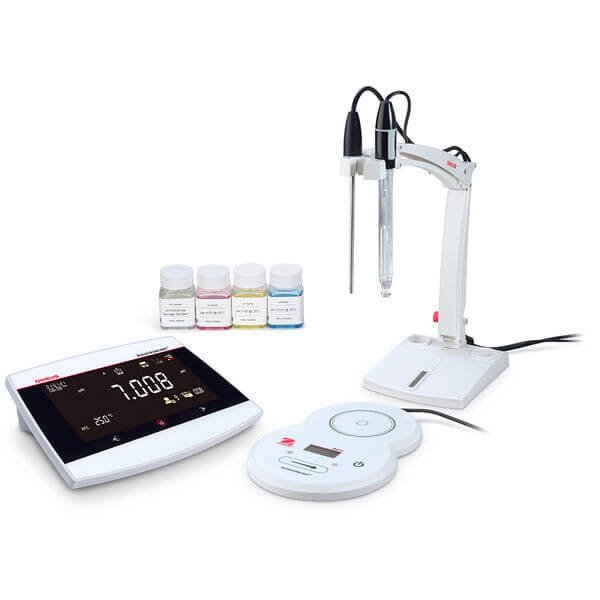

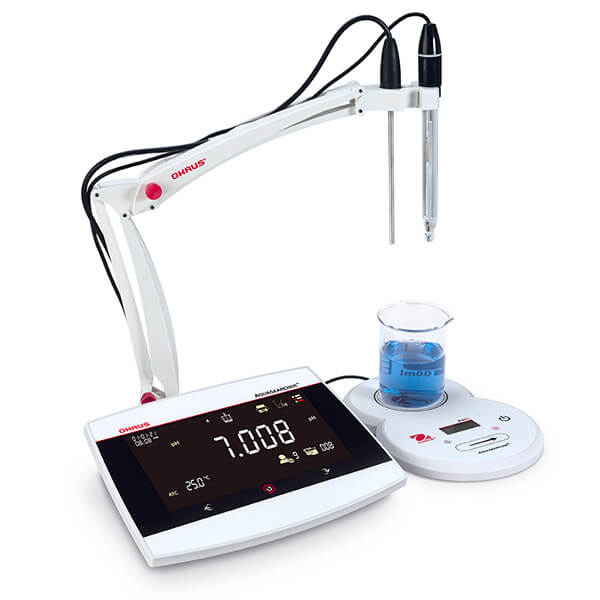

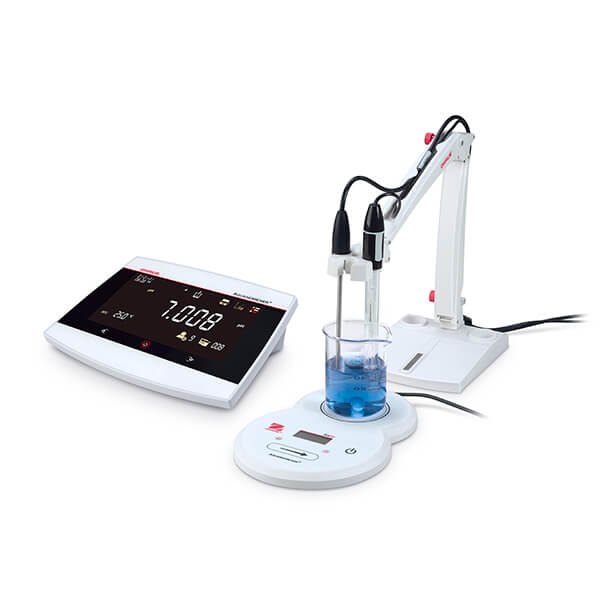

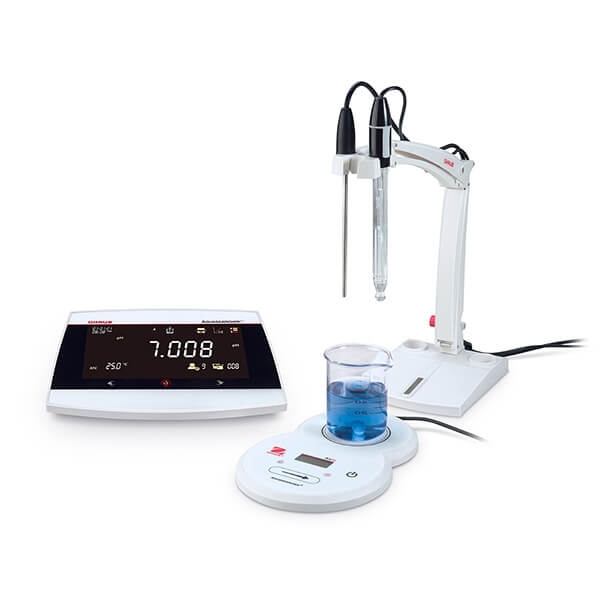

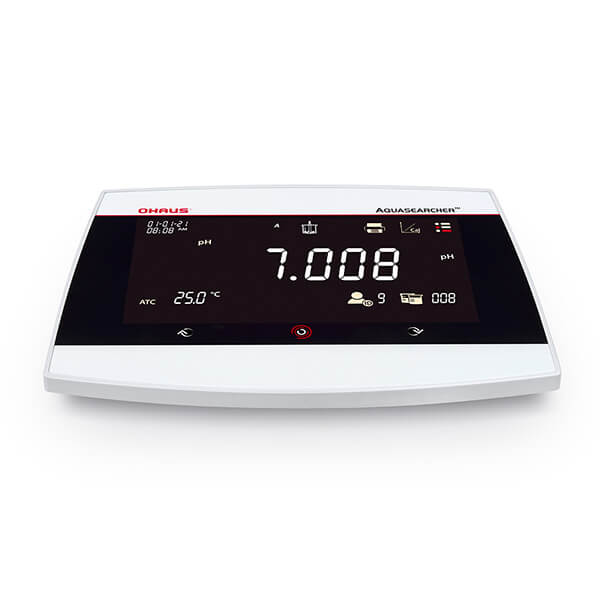

Ohaus - AB41PH - AQUASEARCHER™ Advanced Research-Grade pH Benchtop Meter
Features
The OHAUS AQUASEARCHERTM AB41PH bench meter is designed with reliable measurement and precise performance in mind. The i-Steward ensures repeatable and consistent measurement accuracy for optimal peace of mind and can assist with compliance with 21 CFR Part 11 regulations.
With selectable resolution from 0.1 to 0.001 and an intelligent i-Steward system, AB41PH is an excellent pH bench meter with high resolution and consistent accuracy. Equipped with a 6.5-inch large LCD display and a touch keypad, AB41PH offers a simple and precise control experience. AB41PH offers activity logs with an audit-trail report generated via SPDC software. User management provides access to specific functions.
- Applications: pH, oxidation-reduction potential (ORP) with Temperature Measurements

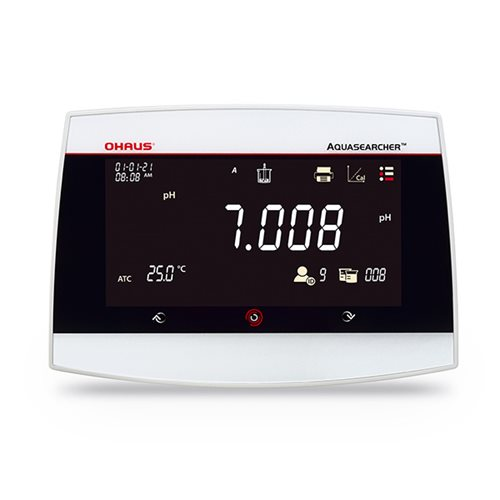

- Display: 6.5" Segment & Dot matrix LCD with backlight

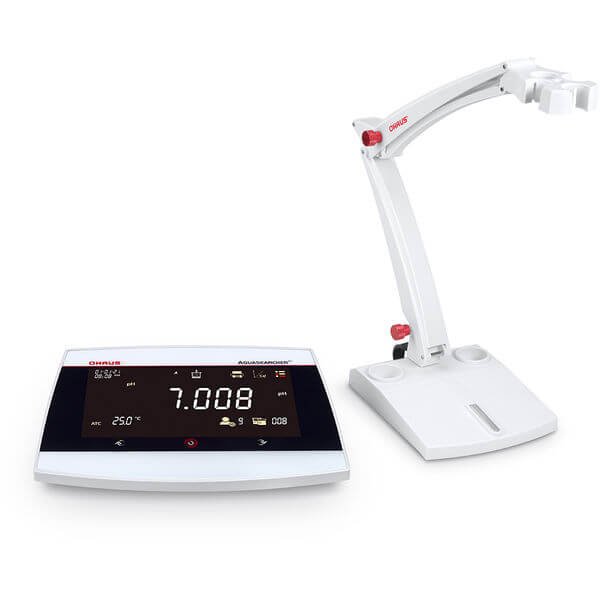

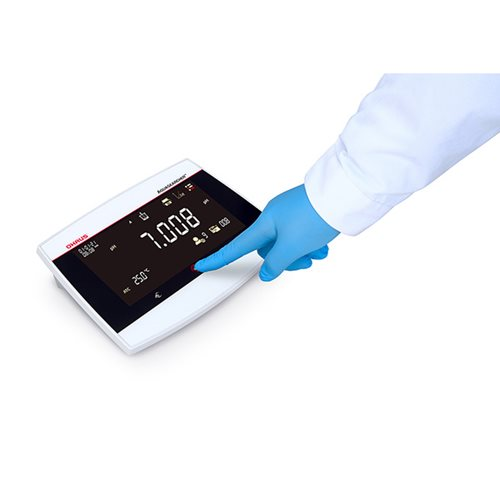

- Operation: Capacitive touch, ABS top housing, standalone electrode holder

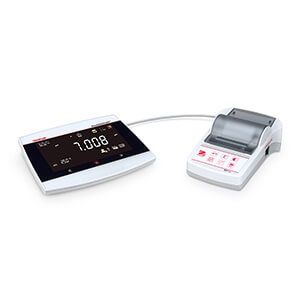

- Communication: RS232, USB Device (included), GLP/GMP data output with real-time clock
- Construction: AC adapter (included)
- Design Features: i-Steward, 3 endpoint modes, calibration due alarm, 1,000 measurement memory, ten most recent calibrations, password management
Specifications
Overview
-
Nominal Height:2" (5.08 cm)
-
Nominal Width:5.6" (14.22 cm)
-
Nominal Length:8.3" (21.08 cm)
Technical Data
-
Measurement Range:-2.000 - 20.000 pH, -10.0°C - 125.0°C, -2000.00 - +2000.00 mV
-
Measurement Resolution:0.1 mV, 0.1°C, 0.001 pH
-
Accuracy:±0.3 mV, ±0.002 pH, ±0.3°C
-
Display:LCD with backlight & one-line dot matrix
-
Accuracy ± (mV):0.3 mV
-
Accuracy ± (Temperature):0.3°C
-
Net Weight:1.1 lb (0.5 kg)
-
Parameter:pH/mV/ORP
-
pH Accuracy (±):0.002 (±)
-
Power:AC Adapter (Included)
-
Working Environment:5°C - 40°C, 80% RH, Non-condensing
