Value and Practicality in a Portable Jewelry Balance.

Features

The OHAUS TAJ Carat Series provides high weighing resolution for jewelry applications. The accuracy of the results are ensured by the unique easy access draftshield, which prevents disturbances from outside factors that can affect the accuracy of the balance.

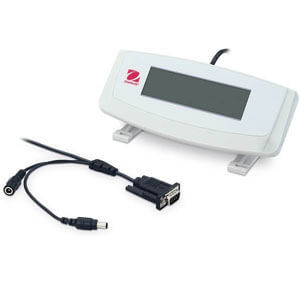

This high capacity balance can weigh up to 200ct with 5mct readability. The easy-access draftshield helps ensure accurate results by preventing disturbances from outside factors. An auxiliary display connected to the balance via the optional RS232 makes the weight results visible to the customer, providing them with an extra level of assurance.



Applications



Weighing, Parts Counting



Display



Backlit liquid crystal display (LCD)



Operation



AC Adapter (Included) or 4 AA Batteries (Not included)



Communication



RS232 or USB with integrated cable (accessories sold separately)



Construction



ABS housing, stainless steel pan, integral weigh below hook and shipping lock, security bracket, manual lock switch, draftshield (1mct model only)



Design Features



User selectable communication and printing settings, auto shut off, mechanical and software overload/underload protection

Specifications

Overview

  • Nominal Height:
    4.6" (11.68 cm)
  • Nominal Width:
    5.6" (14.22 cm)
  • Nominal Length:
    8.5" (21.59 cm)

Technical Data

  • Maximum Capacity:
    200 ct
  • Readability:
    0.005 ct
  • Pan Size:
    3.9 in (100 mm)
  • Battery Life:
    24 Hours with Disposable Batteries
  • Communication:
    RS232 (Available as an Accessory), USB (Available as an Accessory)
  • Auxiliary Display Model:
    Available as an Accessory
  • Display:
    LCD with Backlight
  • Internal Calibration:
    Not Applicable
  • In-Use Cover:
    No
  • Legal for Trade:
    Not Applicable
  • Linearity:
    ± 0.015 ct
  • Net Weight:
    2.2 lb (1 kg)
  • Pan Construction:
    Stainless Steel
  • Power:
    4 AA (LR6) Batteries (Not Included), AC Adapter (Included)
  • Repeatability, Typical:
    0.015 g
  • Stabilization Time:
    3 s
  • Tare Range:
    To Capacity by Subtraction
  • Transportation Case:
    Not Applicable
  • Units of Measurement:
    Singapore Tael, Ounce Troy, Pennyweight, Taiwan Tael, Grain, Gram, Hong Kong Tael, Tola, Tical, Carat, Ounce
  • Working Environment:
    50°F - 104°F, 80%RH, Non-Condensing (10°C - 40°C, 80%RH, Non-Condensing)
