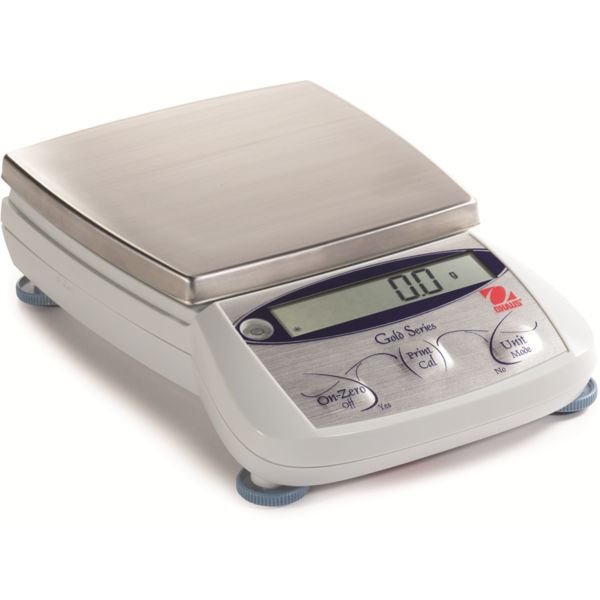

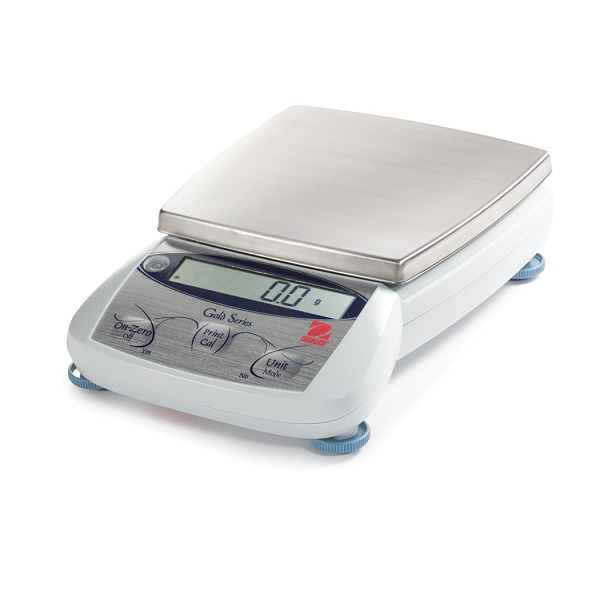

Value and Practicality in a Portable Jewelry Balance.

Features

The OHAUS TAJ Gold Series combines solid reliability with unsurpassed value. Featuring a stainless steel pan, multiple weighing units and an easy-to-read backlit display, it is prepared for precious metal jewelry weighing.

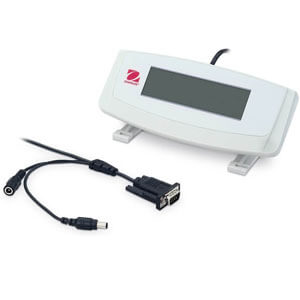

This high capacity balance can weigh up to 600g x 10mg or 4000g x 0.1g. The large 140 x 127mm weighing pan provides ample space for the weighing of precious metals and finished pieces of jewelry. An auxiliary display connected to the balance via the optional RS232 makes the weight results visible to the customer, providing them with an extra level of assurance.



Applications



Weighing, Parts Counting



Display



Backlit liquid crystal display (LCD)



Operation



AC Adapter (Included) or 4 AA Batteries (Not included)



Communication



RS232 or USB with integrated cable (accessories sold separately)



Construction



ABS housing, stainless steel pan, integral weigh-below hook and shipping lock, security bracket, manual lock switch



Design Features



User selectable communication and printing settings, auto shut off, mechanical and software overload/underload protection

Specifications

Overview

  • Nominal Height:
    2.3" (5.84 cm)
  • Nominal Width:
    5.6" (14.22 cm)
  • Nominal Length:
    8.5" (21.59 cm)

Technical Data

  • Maximum Capacity:
    500 g
  • Readability:
    0.1 g
  • Pan Size:
    5.4 in x 5.5 in (137 mm x 140 mm)
  • Battery Life:
    55 Hours with Disposable Batteries
  • Communication:
    RS232 (Available as an Accessory), USB (Available as an Accessory)
  • Auxiliary Display Model:
    Available as an Accessory
  • Display:
    LCD with Backlight
  • Internal Calibration:
    Not Applicable
  • In-Use Cover:
    No
  • Legal for Trade:
    Not Applicable
  • Linearity:
    ± 0.1 g
  • Net Weight:
    2.2 lb (1 kg)
  • Pan Construction:
    Stainless Steel
  • Power:
    4 AA (LR6) Batteries (Not Included), AC Adapter (Included)
  • Repeatability, Typical:
    0.1 g
  • Stabilization Time:
    3 s
  • Tare Range:
    To Capacity by Subtraction
  • Transportation Case:
    Not Applicable
  • Units of Measurement:
    Singapore Tael, Ounce Troy, Pennyweight, Taiwan Tael, Grain, Gram, Hong Kong Tael, Pound, Tola, Tical, Carat, Ounce
  • Working Environment:
    50°F - 104°F, 80%RH, Non-Condensing (10°C - 40°C, 80%RH, Non-Condensing)
