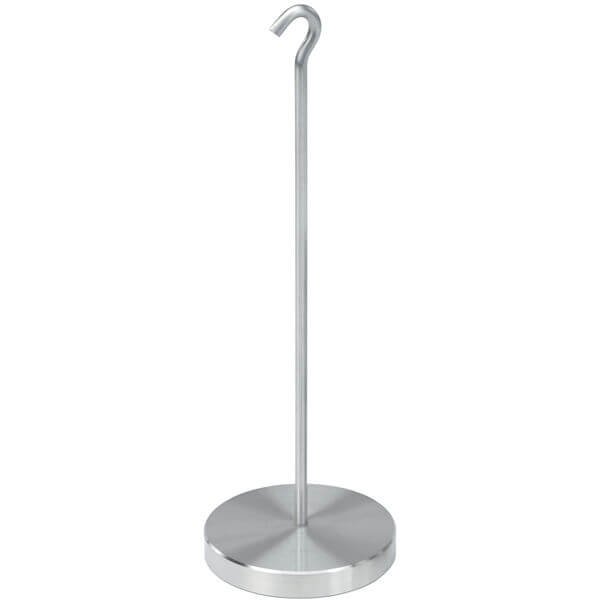

Ohaus - 83040922 - Slotted Weight Hngr 1kg 20.25 CL5 Accrd TR
Features
Troemner Cast Iron Slotted Weights & Hangers are constructed of sturdy cast iron and hangers include a stainless steel stem. Weights meet or exceed ANSI/ASTM E617 tolerance and design restrictions. Available with certificate options traceable to NIST, including ISO/IEC 17025 accredited certification or traceable certification to aid in meeting SOP and regulatory requirements. Slotted Stainless Steel Weights are available in interlocking or flat styles. Slotted Cast Iron weights are designed for secure stacking.
Applications
Used to test commercial weighing devices by weights & measures officials and service technicians. Class 5-7 weights may be used to test most accuracy Class III scales and Class IIIL or IIII scales. Appropriate for weighing applications such as force measuring.
Construction
One-piece
Design Features
Slotted weights feature an interlocking design to help secure a stack of slotted weights onto hangers.
Specifications
Overview
-
Nominal Height:0.6" (1.52 cm)
Technical Data
-
ASTM Class:5
-
Weight Value:1 kg
-
Weight Material:Stainless Steel
-
Protective Case:Available as an accessory
-
Construction:Two-piece
-
Density at 20°C:7.85 g/cm3
-
Design:Hanger
-
Dimensions:0.6 in x 3.75 in (1.524 cm x 9.53 cm) (HxØ)
-
Hanger Weight Capacity:75 kg
-
Weight Tolerance:50 mg
-
Wgt Origin (USA):USA
