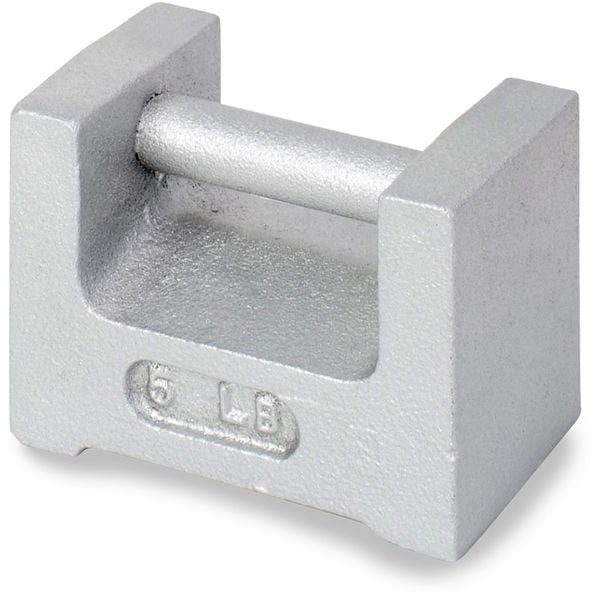

Ohaus - 83040482 - ASTM Individual Scale Calibration Weight 2P CI GH 5lb CL7 Accrd TR
Features
ASTM Individual Scale Calibration Weights
ASTM Class 5 - 7 Slotted Weights, Sets & Hangers are constructed of stainless steel or aluminum and all surfaces are satin finish and meet or exceed ANSI/ASTM E617 tolerance and design restrictions. Available with certificate options traceable to NIST, including ISO/IEC 17025 accredited certification or traceable certification to aid in meeting SOP and regulatory requirements. Slotted Stainless Steel Weights are available in interlocking or flat styles. Slotted Cast Iron weights are designed for secure stacking.
Applications
Used to test commercial weighing devices by weights & measures officials and service technicians. NIST F weights may be used to test most accuracy Class III scales and Class IIIL or IIII scales. Appropriate for weighing applications such as force measuring.
Construction
Two-piece
Design Features
Cast iron scale calibration weights ≤50kg, ≤100lb, are grip handle and ≥100kg, ≥200lb, are block design for lifting with hook.
Specifications
Overview
-
Nominal Height:3.13" (7.95 cm)
-
Nominal Width:2.38" (6.05 cm)
-
Nominal Length:3.88" (9.86 cm)
Technical Data
-
Weight Value:5 lb
-
Design:Grip handle
-
Protective Case:Not Included
-
Uncertainty:0.78 mg
-
Construction:Two-piece
-
Density at 20°C:7.20 g/cm3
-
Weight Material:Cast iron
-
Weight Tolerance:780 mg
-
Wgt Origin (USA):USA
