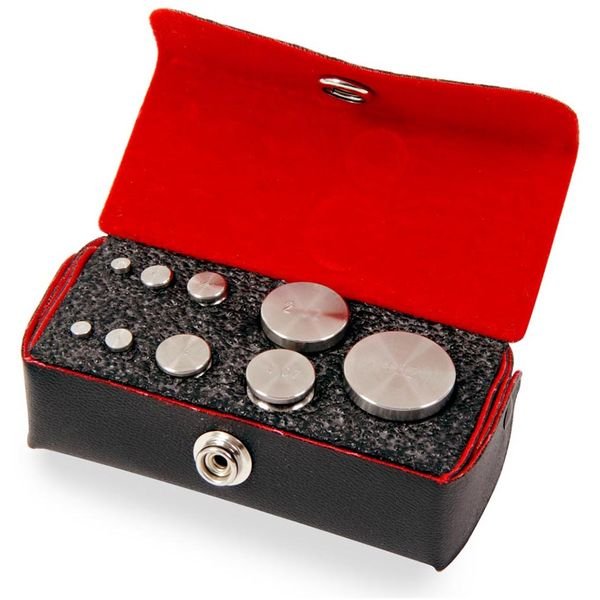

Ohaus - 83040359 - ASTM Scale Calibration Weight Set TEST 0.2lb-0.001lb CL5 Acrd TR
Features
ASTM Scale Calibration Weight Sets
Troemner stainless steel test weights offer uncertainties of less than 1/4 of the tolerance and are available in cube, cylindrical, flat and grip handle designs. Sizes 1mg – 30kg or 0.001lb – 50lb. Available with certificate options traceable to NIST, including ISO/IEC 17025 accredited certification or traceable certification to aid in meeting SOP and regulatory requirements. Available with certificate options traceable to NIST, including ISO/IEC 17025 accredited certification or traceable certification to aid in meeting SOP and regulatory requirements.
Applications
Used to test commercial weighing devices by weights & measures officials and service technicians. Class 5-7 weights may be used to test Class III, Class IIIL or IIII scales and other low precision scales not marked with a class designation.
Construction
Two-piece
Design Features
Stainless steel test weights ≥1g, ≥0.01lb, and all ounce are cylindrical. Weights ≤500mg are aluminum and flat with one end turned up for easy handling. Weights ≤0.005lb, are flat dish weights.
Specifications
Overview
-
Internal Height:2.5" (6.35 cm)
-
Internal Width:3.63" (9.22 cm)
-
Internal Length:1.19" (3.02 cm)
Technical Data
-
Weight Set Range:0.2 lb - 0.001 lb
-
Set Capacity:0.2 lb
-
Set Total Pieces:11
-
Protective Case:Included
-
Construction:One-piece
-
Density at 20°C:7.85 g/cm3
-
Set Contents:(2) 0.02 lb, 0.01 lb, 0.005 lb, (2) 0.2 lb, 0.05 lb, 0.1 lb, 0.001 lb, (2) 0.002 lb
-
Weight Material:0.005 lb to 0.001 lb are Aluminum, 0.2 lb to 0.01 lb are 303 Stainless Steel
-
Wgt Origin (USA):USA
