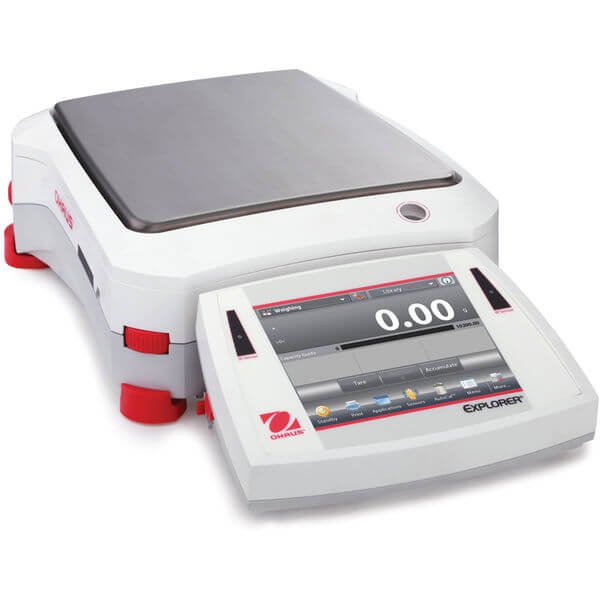

Flagship Balances from OHAUS.

Features

The OHAUS Explorer Series of precision balances combine modern features and design elements to offer unmatched functionality in a line of high-performance balances unlike any other on the market. These smart and intuitive balances simplify even the most complex laboratory measurements.

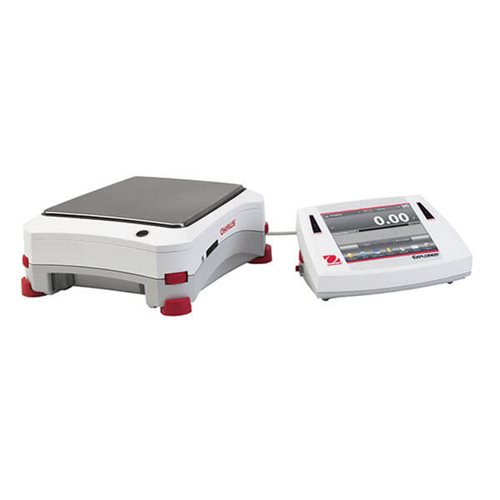

Equipped with a weighing cell that's precision-machined from a solid metal block, Explorer balances are extremely accurate and durable, and are ideal for laboratory and industrial environments. Features such as four-level user management with password protection, and un-editable system log plus a high level of configurability make Explorer balances well suited for regulated applications. A detachable terminal with a large color touchscreen, programmable IR sensors, and a frameless draftshield make Explorer precision balances easy and convenient to use.



Applications



Weighing, Parts Counting, Percent Weighing, Checkweighing, Animal/Dynamic Weighing, Filling, Totalization/Statistics, Formulation, Differential Weighing, Density Determination, Peak Hold, Ingredient Costing, Pipette Adjustment, SQC, Statistics



Display

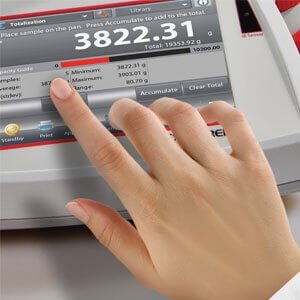

5.7" (145 mm) Full-color VGA graphic touchscreen display with user-controlled brightness



Operation



AC adapter (included)



Communication



RS232 and USB (included) or second RS232/Ethernet (accessories sold separately). GLP/GMP data output with real-time clock.



Construction



Metal base, ABS top housing, stainless steel pan, glass draftshield with top mounted side doors & flip/sliding top door (1mg models), illuminated up-front level indicator, weigh below hook, security bracket, calibration lock, 4 touchless sensors, in-use cover



Design Features



Selectable environmental filters, auto tare, user selectable span calibration points, software lockout and reset menu, user selectable communication settings and data print options, user definable project and user IDs, auto standby, up to 14 operating languages



Watch the video

Specifications

Overview

  • Nominal Height:
    3.9" (9.91 cm)
  • Nominal Width:
    9.1" (23.11 cm)
  • Nominal Length:
    15.5" (39.37 cm)

Technical Data

  • Maximum Capacity:
    4,200 g
  • Readability:
    0.01 g
  • Pan Size:
    7.5 in x 8 in (190 mm x 200 mm)
  • Internal Calibration:
    AutoCal™ - Automatic
  • Auxiliary Display Model:
    Available as an Accessory
  • Battery Life:
    Not Applicable
  • Communication:
    Ethernet (Available as an Accessory), USB (Included), RS232 (Included)
  • Display:
    Full-color 5.7 in VGA, touch screen
  • In-Use Cover:
    Included
  • Legal for Trade:
    Not Applicable
  • Linearity:
    ± 0.02 g
  • Minimum Weight (USP, 0.1%, Typical):
    16 g
  • Net Weight:
    9.5 lb (4.3 kg)
  • Pan Construction:
    Stainless Steel
  • Power:
    AC Adapter (Included)
  • Repeatability, Typical:
    0.01 g
  • Stabilization Time:
    1 s
  • Tare Range:
    To capacity by subtraction
  • Units of Measurement:
    Singapore Tael, Ounce Troy, Pennyweight, Grain, Kilogram, Tical, Custom, Milligram, Momme, Newton, Baht, Taiwan Tael, Gram, Hong Kong Tael, Pound, Tola, Mesghal, Carat, Ounce
  • Working Environment:
    50°F - 86°F, 85%RH, non-condensing (10°C - 30°C, 85%RH, non-condensing)
