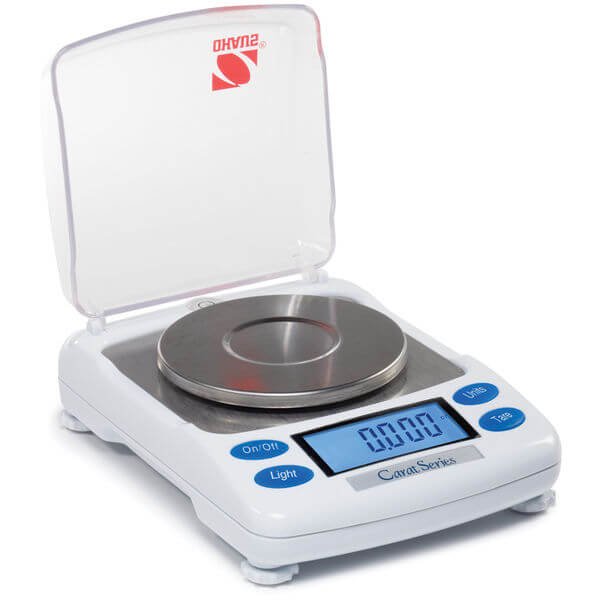

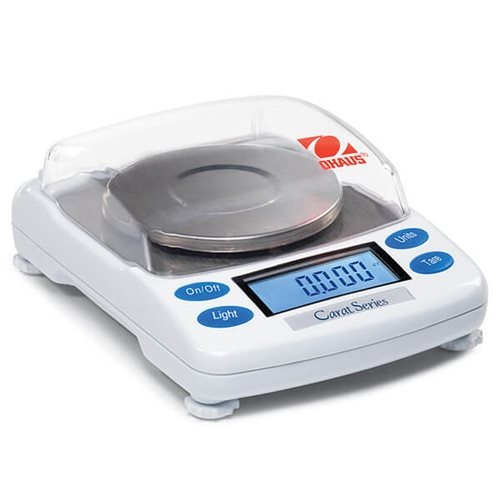

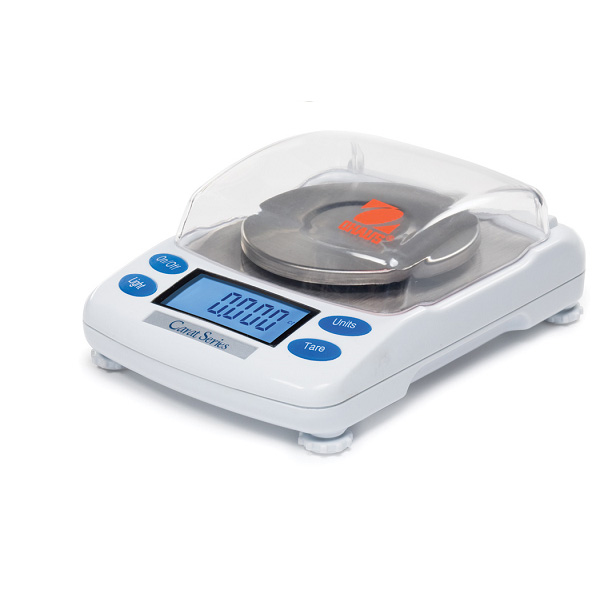

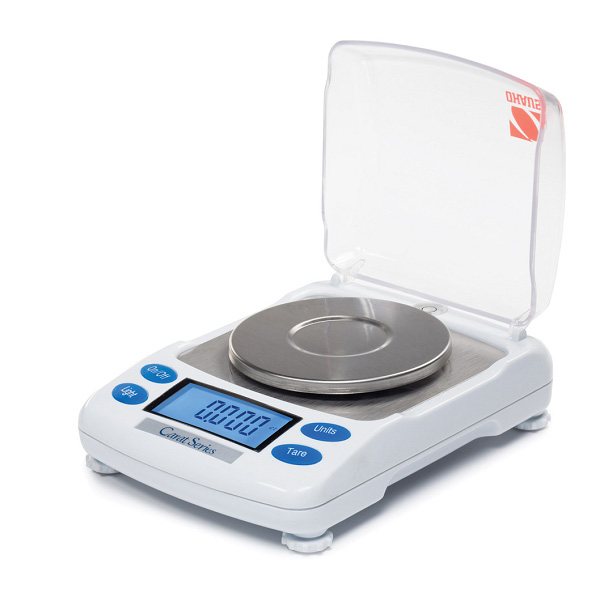

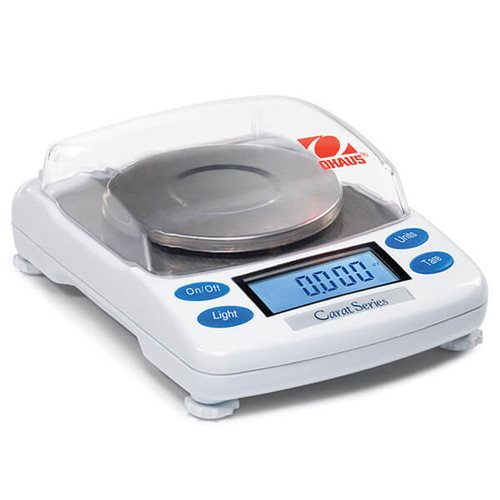

Ohaus - 80251901 - YJ Carat Series Portable Balance, YJ103
Features
The OHAUS YJ Series was designed to meet the highest quality standards for the jewelry industry. Available in both carat and gold models, all fine stone and gold weighing. Carat models are equipped for weighing fine stones and gems while the gold models are made for weighing gold, precious metals and other fine jewelry.
With gram, carat, grain, and ounce weighing units, as well as a calibration weight and gem scoop on all carat models, YJ was built to meet the jewelry industry's weighing needs. The bright blue backlit LCD display makes results easy-to-view in even dim lighting while a hinged draftshield cover ensures exact results. Powered by four AAA batteries, the YJ balance also has a low battery indicator as well as an automatic shut off feature that conserves the battery after a period of inactivity.
- Applications: Weighing
- Display: Liquid crystal display (LCD)
- Operation:4 AAA batteries (included)
- Construction: ABS Housing, Stainless Steel Pan
- Design Features: Mechanical and software overload/underload protection, auto shut-off, audible signal
Specifications
Overview
-
Nominal Height:2.8" (7.11 cm)
-
Nominal Width:3.75" (9.53 cm)
-
Nominal Length:5.25" (13.34 cm)
Technical Data
-
Maximum Capacity:100 ct
-
Readability:0.005 ct
-
Pan Size:2.9 in (75 mm)
-
Battery Life:1.5 Hours with Disposable Batteries
-
Display:LCD with backlight
-
In-Use Cover:No
-
Linearity:± 0.005 ct
-
Net Weight:0.6 kg
-
Pan Construction:Stainless Steel
-
Power:AC Adapter (Not Included), 4 AAA (LR03) Batteries (Included)
-
Repeatability, Typical:0.01 ct
-
Stabilization Time:3 s
-
Tare Range:To capacity by subtraction
-
Units of Measurement:Ounce Troy, Pennyweight, Gram, Grain, Ounce, Carat
-
Working Environment:50°F - 86°F, 80%RH, non-condensing (10°C - 30°C, 80%RH, non-condensing)
Useful Links
-
Data Sheet YJVisit Link
-
Manual YJVisit Link
