Floor Scales for Basic Industrial Applications.

Features

Defender 5000 Series Floor Scales meet advanced weighing needs for industrial and commercial use. Their high-quality construction is designed to minimize flexing under heavy loads for years of dependable performance. The indicator features software for Counting, Checkweighing, Accumulation, Display Hold, and other modes. Ramps and mounting plates are available.


Applications


Weighing, Parts Counting, Percent Weighing, Check Weighing, Dynamic Weighing (Display Hold), Filling.

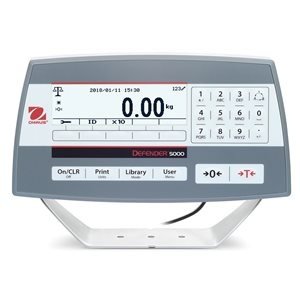

Display


Backlit Liquid Crystal Display (LCD), 256 x 80 pixels.


Operation


Internal power supply with power cord (included) or rechargeable battery (sold separately as an accessory).


Communication


Easy access communication ports including RS232 and Micro SD slot (included), second RS232/RS485/USB device, Ethernet and WiFi/Bluetooth, Discrete I/O and Analog Output (sold separately as accessories), GLP/GMP data output with real-time clock.


Construction


ABS plastic or 304 stainless steel indicator, 5 mm/0.196 in. fixed top plate, black painted steel treaded platform, IP65 stainless steel junction box with side access, alloy steel load cells, two carbon steel eye bolts, painted steel ramp available.


Design Features


Four load cell mounted feet with self-swiveling ball-in-cup design, painted and stainless steel floor stands (available as accessories).

Specifications

Overview

  • Nominal Height:
    3.5" (8.89 cm)
  • Nominal Width:
    3" (7.62 cm)
  • Nominal Length:
    3" (7.62 cm)

Technical Data

  • Maximum Capacity:
    2,500 lb (1,250 kg)
  • Readability:
    0.5 lb (0.2 kg)
  • Readability (Certified):
    0.5 lb (0.5 kg)
  • Platform Size (LxW):
    3 ft x 3 ft (914 mm x 914 mm)
  • Battery Life:
    10 Hours with Rechargeable Battery
  • Legal for Trade:
    NTEP Certified
  • Tare Range:
    To capacity by subtraction
  • Working Environment:
    -10°C - 40°C, 85%RH, non-condensing (14°F - 104°F, 85%RH, non-condensing)
  • Platform Construction:
    Painted Steel Diamond Plate
  • Net Weight:
    225 lb (102 kg)
  • Protection Rating:
    Not Applicable
  • Communication:
    Ethernet (Available as an Accessory), 2nd RS232/RS485/USB (available as an accessory), RS232 (Included), USB Host (Available as an Accessory), WiFi/Bluetooth (available as an accessory)
  • Power:
    Rechargeable Battery (Not Included), AC Power (Included)
  • Units of Measurement:
    Metric Tons, Kilogram, Pound, Tonne, Custom
  • Display:
    Dot matrix LCD with white LED backlight
  • Outputs:
    4 - 20mA, 2 In/4 Out digital I/O
