Floor Scales for Basic Industrial Applications.

Features

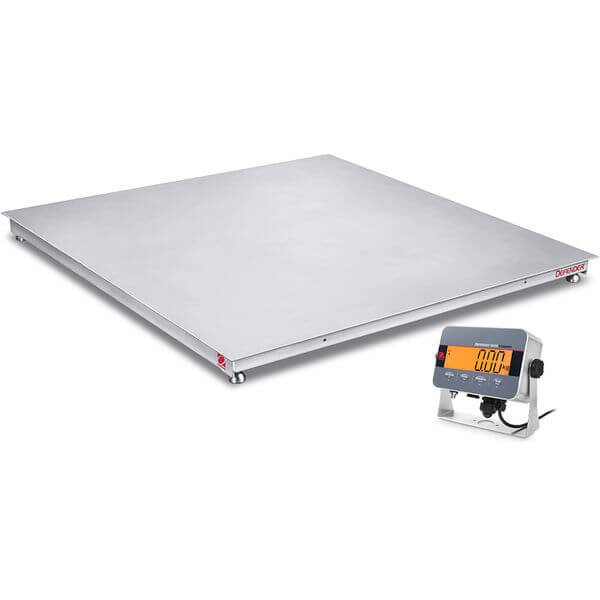

Defender 3000 Floor Platforms meet washdown weighing needs in industrial and commercial use. Their high-quality construction is designed to minimize flexing under heavy loads for years of dependable performance. The indicator features a bright display that can change color when in check mode. Scale also includes counting and totalization modes. Stainless steel bases include IP68 loadcells for wet areas. Ramps and mounting plates are available.


Applications


Weighing, Checkweighing, Counting, Totalization

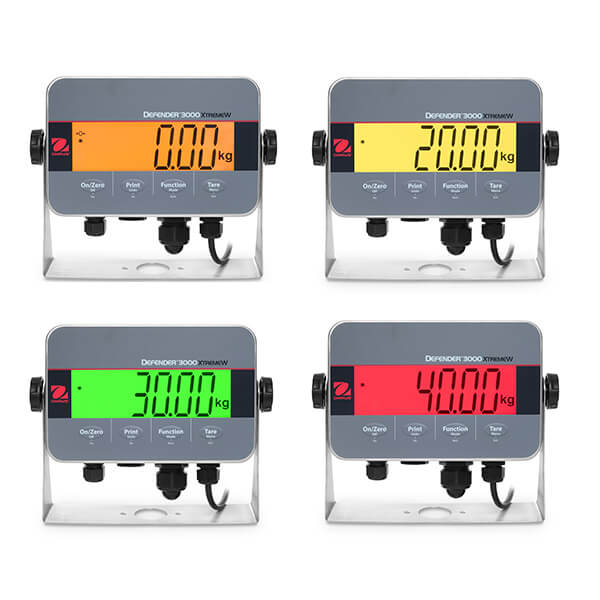

Display


7 Segment LCD with multicolor backlight


Operation


Internal power supply with power cord (included) or rechargeable battery (included)


Communication


Standard RS232 and optional USB Device or Ethernet


Construction


304-grade stainless steel IP66 indicator, 5mm / 0.196in. fixed top plate, stainless steel platform, IP68 stainless steel junction box with side access, IP68 load cells, stainless steel ramp available


Design Features


Four load cell mounted feet with self-swiveling ball-in-cup design, painted and stainless steel floor stands (available as accessories)

Specifications

Overview

  • Nominal Height:
    3.5" (8.89 cm)
  • Nominal Width:
    3" (7.62 cm)
  • Nominal Length:
    3" (7.62 cm)

Technical Data

  • Maximum Capacity:
    2,500 lb (1,250 kg)
  • Readability:
    0.5 lb (0.2 kg)
  • Readability (Certified):
    0.5 lb (0.5 kg)
  • Platform Size (LxW):
    3 ft x 3 ft (914 mm x 914 mm)
  • Battery Life:
    30 Hours with Rechargeable Battery
  • Legal for Trade:
    NTEP Certified
  • Tare Range:
    To capacity by subtraction
  • Working Environment:
    -10°C - 40°C, 85%RH, non-condensing (14°F - 104°F, 85%RH, non-condensing)
  • Platform Construction:
    Stainless Steel
  • Net Weight:
    216 lb (98 kg)
  • Protection Rating:
    IP66, IP68 Platform
  • Communication:
    Ethernet (Available as an Accessory), RS232 (Included), USB (Available as an Accessory)
  • Power:
    AC Power (Included), Rechargeable Battery (Included)
  • Units of Measurement:
    Metric Tons, Kilogram, Pound
  • Display:
    7 Segment LCD with multicolor backlight
  • Outputs:
    Not Applicable
