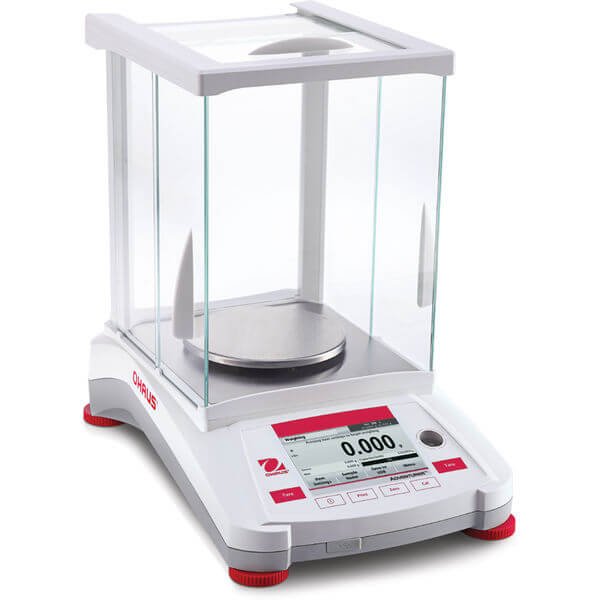

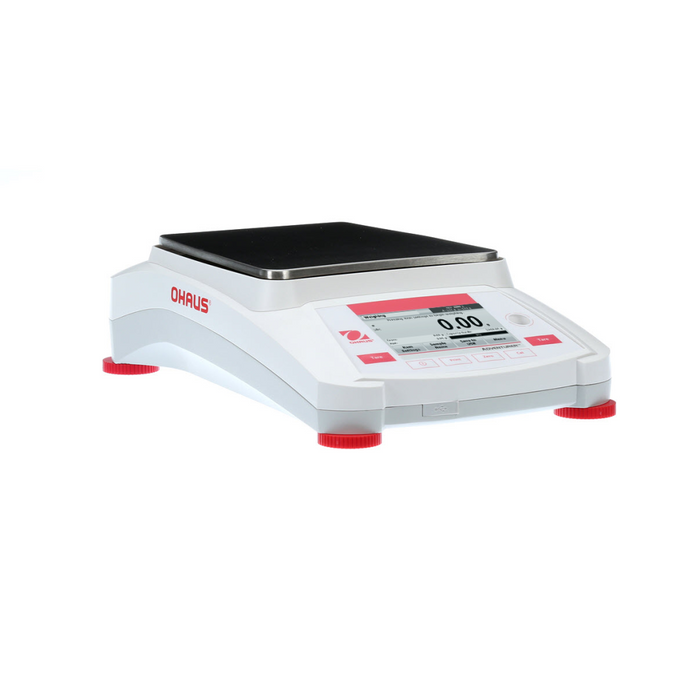

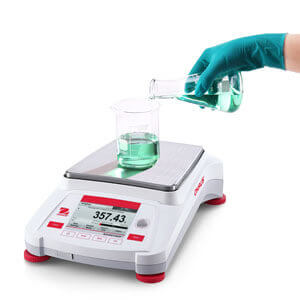

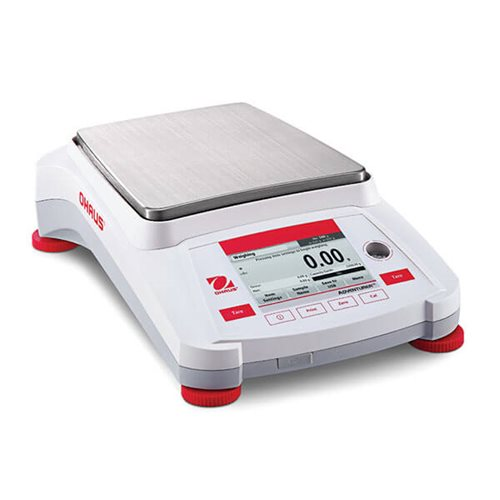

Ohaus - 30805883 - Adventurer™ Precision Balance AX623/E

Ohaus - 30805883 - Adventurer™ Precision Balance AX623/E
Ohaus - 30805883 - Adventurer™ Precision Balance AX623/E
Ohaus - 30805883 - Adventurer™ Precision Balance AX623/E
Ohaus - 30805883 - Adventurer™ Precision Balance AX623/E
Ohaus - 30805883 - Adventurer™ Precision Balance AX623/E
Ohaus - 30805883 - Adventurer™ Precision Balance AX623/E
Ohaus - 30805883 - Adventurer™ Precision Balance AX623/E
Ohaus - 30805883 - Adventurer™ Precision Balance AX623/E

Ohaus - 30805883 - Adventurer™ Precision Balance AX623/E

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
Intuitive Balances Designed for Routine Weighing.

Features

Striking the ideal balance between inventive features and functional, uncomplicated weighing capabilities, the OHAUS Adventurer incorporates all of the applications necessary for routine weighing and measurement activities. With a color touchscreen, three-level user management to fulfill GLP/GMP compliance capabilities, two USB ports, and much more, Adventurer is the most complete balance in its class.

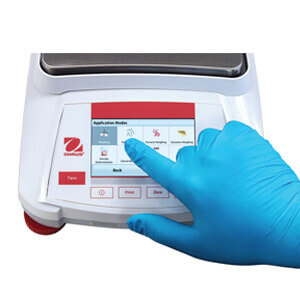

Adventurer balances feature a color touchscreen, icon-based user interface, and an ergonomic design, making them easy to configure and use. Features such as specialized weighing modes, multiple connectivity options, and AutoCal™ provide versatility and flexibility for a variety of applications. Durable construction, large weighing surfaces, a space-saving draftshield design, and full housing in-use cover allow for use in lab, education and industrial environments.



Applications



Weighing, Parts Counting, Percent Weighing, Check Weighing, Dynamic Weighing, Formulation, Density Determination, Totalization, Display Hold, Batch Printing



Display



4.3" (109 mm) full-color VGA graphic touchscreen with user-controlled brightness



Operation



AC adapter (included)



Communication

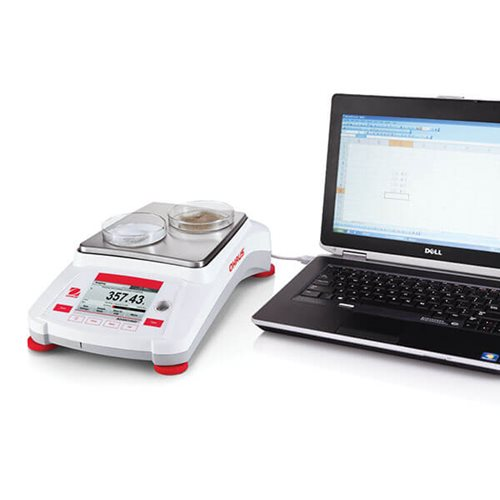

RS232, USB host, USB device (included). GLP/GMP data output with real-time clock.



Construction

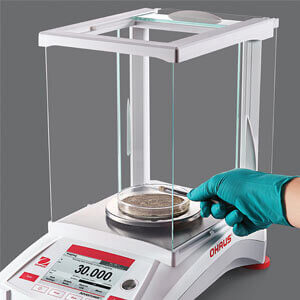

Metal base, ABS top housing, stainless steel pan, glass draftshield with 2-piece top mounted side doors & sliding top door (1mg models only), illuminated up-front level indicator, weigh below hook, security bracket, calibration lock, full housing in-use cover



Design features



Selectable environmental filters, auto tare, user selectable span calibration points, software lockout and reset menu, user selectable communication settings and data print options, user definable project and user IDs, up to 9 operating languages



Watch the video

Specifications

Overview

  • Nominal Height:
    13.39" (34.01 cm)
  • Nominal Width:
    9.05" (22.99 cm)
  • Nominal Length:
    13.93" (35.38 cm)

Technical Data

  • Maximum Capacity:
    620 g
  • Readability:
    0.001 g
  • Pan Size:
    5.1 in (130 mm)
  • Draftshield:
    Included
  • Auxiliary Display Model:
    Available as an accessory
  • Communication:
    USB, RS232 (Included), USB Host
  • Display:
    High resolution full colour VGA touch display
  • In-Use Cover:
    Included
  • Linearity:
    ± 0.002 g
  • Minimum Weight (USP, 0.1%, Typical):
    1.6 g
  • Net Weight:
    5.8 kg
  • Pan Construction:
    Stainless Steel
  • Power:
    AC Adapter (Included)
  • Repeatability, Typical:
    0.001 g
  • Stabilization Time:
    2s
  • Tare Range:
    To capacity by subtraction
  • Units°F Measurement:
    Singapore Tael, Ounce Troy, Pennyweight, Grain, Tical, Custom, Milligram, Momme, Newton, Baht, Taiwan Tael, Gram, Hong Kong Tael, Pound, Tola, Mesghal, Carat, Ounce
  • Working Environment:
    10°C - 30°C, 80%RH, non-condensing (50°F - 85°F, 80%RH, non-condensing)
  • Internal Calibration:
    Not Applicable
  • Auto Door:
    Not Applicable
  • Battery Life:
    Not Applicable
  • Legal for Trade:
    Not Applicable
