Portable Precision Ready for the Field.

Features

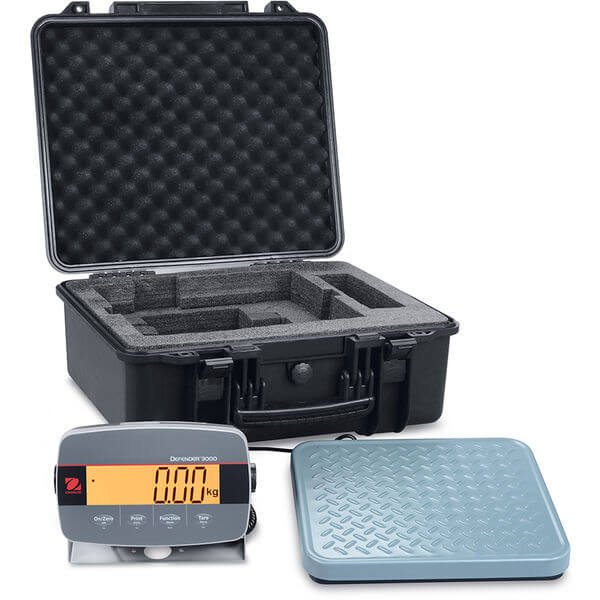

The OHAUS Digital Field Test Scale is designed for precision material testing in the construction industry. With a capacity of 150lb and readability up to 0.05lb, you won’t have to sacrifice precision for portability. Key features include the durable plastic carrying case and dry cell battery with power for up to 150 hours, making the Field Test Scale a powerful addition to any job site.

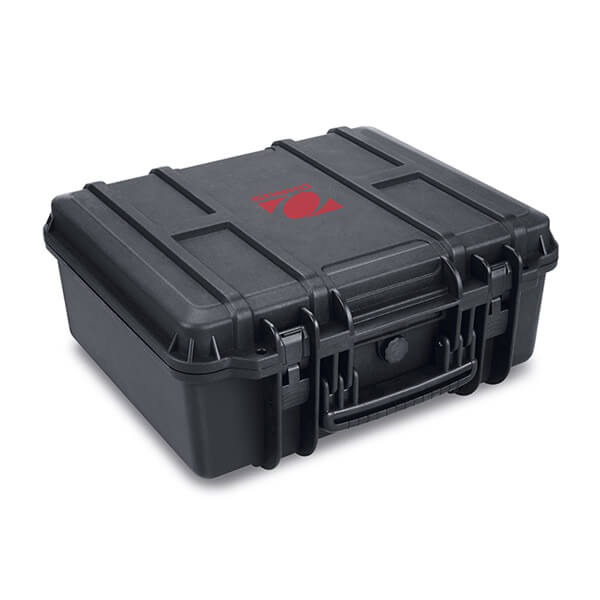

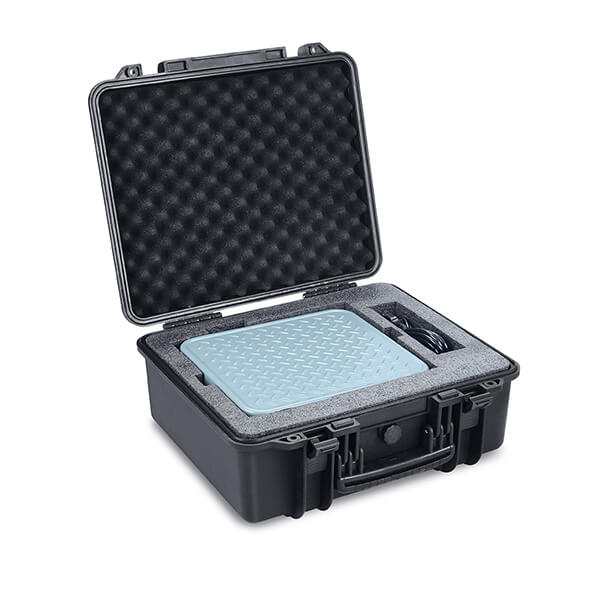

A capacity of 150lb with a readability of 0.05lb & the powder-coated steel base in a case means that the Digital Field Test Scale provides precise, clear measurements, no matter where you’re working. The Field Test Scale comes packaged in a durable plastic carrying case with latches and carrying handle, ensuring maximum portability for use anywhere on the job - without limiting you to the lab. The backlit LCD display allows for easy reading of results, even in low-light conditions. Can be powered using C cell batteries for up to 150 hours - optional internal rechargeable battery available.



Applications



Weighing, Parts Counting, Checkweighing, and Totalization.



Display



Segment LCD with Multicolor Backlight.



Operation



Internal power supply with power cord (included), 6C (LR14) batteries (not included) or rechargeable battery (optional).



Communication



Standard RS232 and optional USB Device or Ethernet.



Construction



ABS plastic indicator and case, powder-coated steel base.



Design Features



Flexible coiled cable (extendable up to 9 ft.), 125% overload protection, selectable span calibration points, auto-zero tracking, battery-saving auto-off, Geo Code geographical gravity calibration adjustment, and software menu lockouts.

Specifications

Overview

  • Nominal Height:
    8.3" (21.08 cm)
  • Nominal Width:
    19.3" (49.02 cm)
  • Nominal Length:
    16.9" (42.93 cm)

Technical Data

  • Maximum Capacity:
    150 lb (75 kg)
  • Readability:
    0.05 lb (0.02 kg)
  • Platform Size (LxW):
    12.4 in x 11 in (316 mm x 280 mm)
  • Legal for Trade:
    Not Applicable
  • Power:
    6 C (LR14) Batteries (Not Included), Rechargeable Battery (Not Included), AC Power (Included)
  • Battery Life:
    72 Hours with Rechargeable Battery, 120 Hours with Disposable Batteries
  • Communication:
    Ethernet (Available as an Accessory), RS232 (Included), USB (Available as an Accessory)
  • Display:
    7 Segment LCD with multicolor backlight
  • Net Weight:
    19.8 lb (9 kg)
  • Outputs:
    Not Applicable
  • Platform Construction:
    Painted Steel Diamond Plate
  • Protection Rating:
    Not Applicable
  • Second Scale Input:
    Not Applicable
  • Tare Range:
    To capacity by subtraction
  • Units of Measurement:
    Metric Tons, Gram, Kilogram, Pound, Ounce
  • Working Environment:
    -10°C - 40°C, 85%RH, non-condensing (14°F - 104°F, 85%RH, non-condensing)
