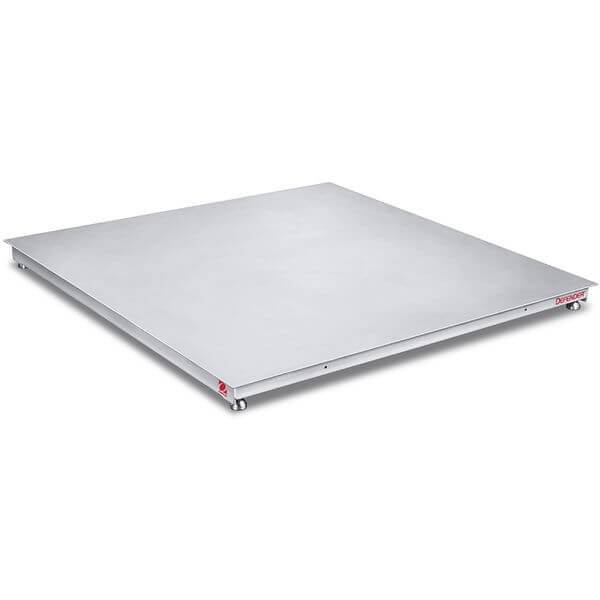

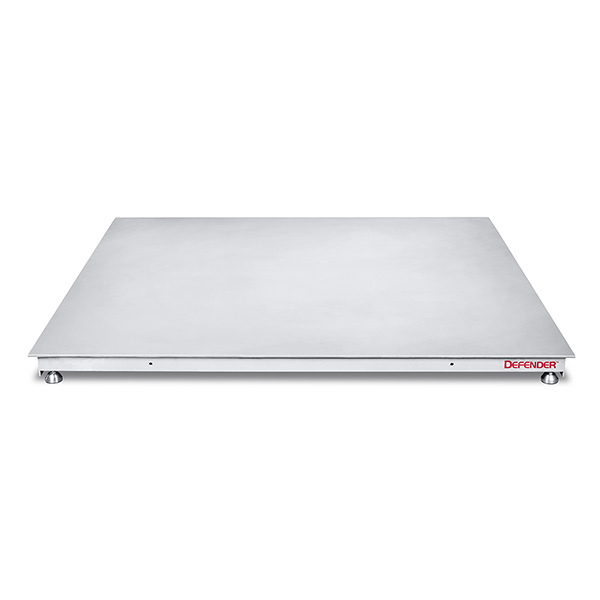

Ohaus - 30716499 - Defender™ 3000 Washdown Floor Platform i-DF2500C1X
Features
Defender 3000 Floor Platforms meet washdown weighing needs in industrial and commercial use. Their high-quality construction is designed to minimize flexing under heavy loads for years of dependable performance. Defender 3000 Series floor platforms offer a unique combination of value and dependability that your company can rely on. Stainless steel bases include IP68 load cells for wet areas. Ramps and mounting plates are available.
304 stainless steel, flat surface decks with 4 IP68 load cells, fixed top plate (5 mm / 0.196 in. thick) with structural bracing for stiff construction. Platforms available in sizes of 3x3 ft, 4x4 ft, and 5x5 ft and capacities from 2,500 lb. to 5,000 lb. with NTEP certified 5,000e performance, allowing greater flexibility for your weighing needs. Platforms are equipped with a 20ft EasyConnect™ cable which allows instant configuration with Defender indicators for quicker installation.
Construction
5mm / 0.196in. fixed top plate, 304-grade stainless steel platform, IP68 stainless steel junction box with side access, IP68 load cells, stainless steel ramp available.
Design Features
Four load cell mounted feet with self-swiveling ball-in-cup design, painted and stainless steel floor stands (available as accessories).
Specifications
Overview
-
Nominal Height:3.5" (8.89 cm)
-
Nominal Width:5" (12.7 cm)
-
Nominal Length:5" (12.7 cm)
Technical Data
-
Maximum Capacity:2,500 lb (1,250 kg)
-
Readability:0.5 lb (0.2 kg)
-
Readability (Certified):0.5 lb (0.5 kg)
-
Platform Size (LxW):5 ft x 5 ft (1,524 mm x 1,524 mm)
-
Protection Rating:IP68
-
Legal for Trade:NTEP Certified
-
Platform Construction:Stainless Steel
-
Net Weight:388 lb (176 kg)
-
Working Environment:-10°C - 40°C, 85%RH, non-condensing (14°F - 104°F, 85%RH, non-condensing)
