Bench Scales for Basic Industrial Applications.

Features

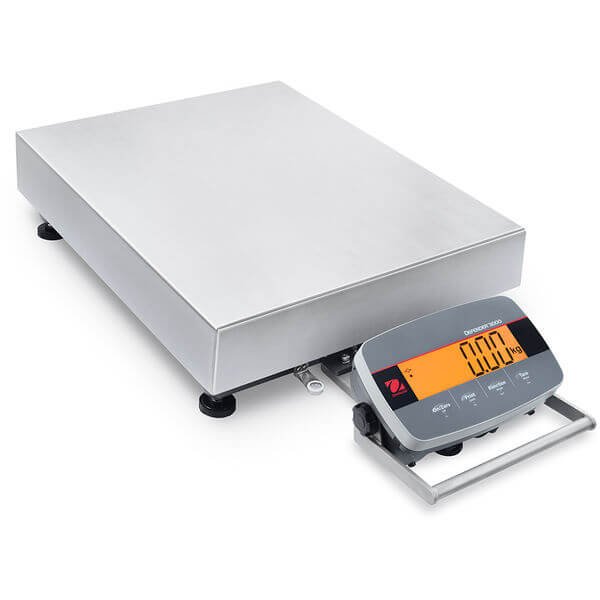

The Defender 3000 Washdown Bench Scales are ideal for general weighing, simple counting and checkweighing applications in damp environments, or when washdown cleaning is required. The Defender 3000 Series features a simple, yet rugged, stainless steel design and IP66 stainless steel indicator with tactile keys, multicolor backlit LCD display, AC or standard rechargeable battery operation and flexible mounting capabilities.

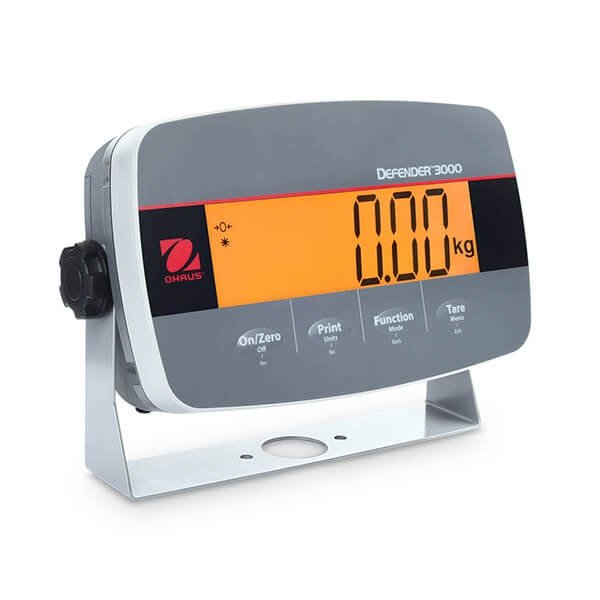

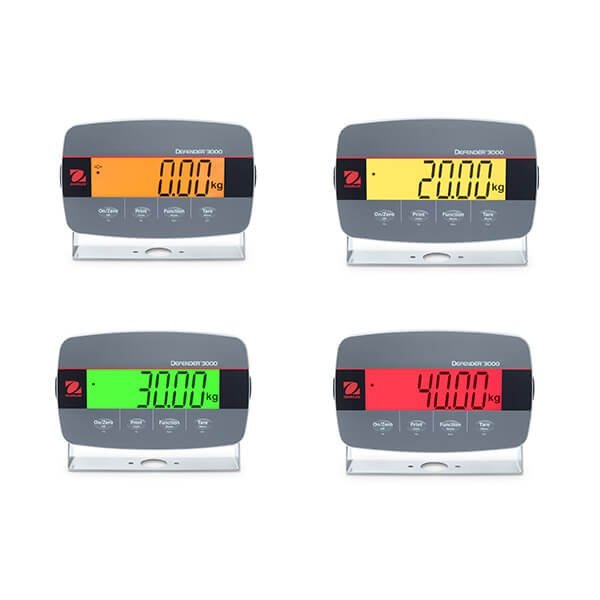

Results are clearly shown using the large, bright backlit LCD display. In Checkweighing mode, the display changes color (yellow/green/red) to alert when it is within the target weight range. This tough industrial scale features a 304-stainless steel platform, powder-coated steel tubular frame, and aluminum load cell. Indicator features a durable ABS housing and steel mounting bracket. Features software for Parts Counting, Checkweighing, and Totalization. Includes RS232 with optional USB Device or Ethernet for printing or data connectivity.



Applications



Weighing, Checkweighing, Counting, Totalization.



Display



7 Segment LCD with multicolor backlight.



Operation



AC Power (included), 6C (LR14) Batteries (not included), or Rechargeable Battery.



Communication



Standard RS232 and optional USB Device or Ethernet.



Construction



ABS plastic indicator, 304-stainless steel platform, powder-coated steel tubular frame, aluminum load cell, non-slip adjustable rubber feet.



Design Features



150% overload protection.



Watch the video

Specifications

Overview

  • Nominal Height:
    5.9" (14.99 cm)
  • Nominal Width:
    19.7" (50.04 cm)
  • Nominal Length:
    37" (93.98 cm)

Technical Data

  • Maximum Capacity:
    600 lb (300 kg)
  • Readability:
    0.1 lb (50 g)
  • Readability (Certified):
    0.2 lb (100 g)
  • Platform Size (LxW):
    25.6 in x 19.7 in (650 mm x 500 mm)
  • Legal for Trade:
    NTEP Certified, Measurement Canada Approved
  • Power:
    6 C (LR14) Batteries (Not Included); Rechargeable Battery (Not Included); AC Power (Included)
  • Tare Range:
    To capacity by subtraction
  • Working Environment:
    -10°C - 40°C, 85%RH, non-condensing (14°F - 104°F, 85%RH, non-condensing)
  • Platform Construction:
    Stainless Steel
  • Net Weight:
    57.8 lb (26.2 kg)
  • Second Scale Input:
    Not Applicable
  • Protection Rating:
    Not Applicable
  • Communication:
    Ethernet (Available as an Accessory), RS232 (Included), USB (Available as an Accessory)
  • Units of Measurement:
    Kilogram, Gram, Pound, Ounce
  • Display:
    7 Segment LCD with multicolor backlight
  • Battery Life:
    100 Hours with Rechargeable Battery, 360 Hours with Disposable Batteries
  • Outputs:
    Not Applicable
