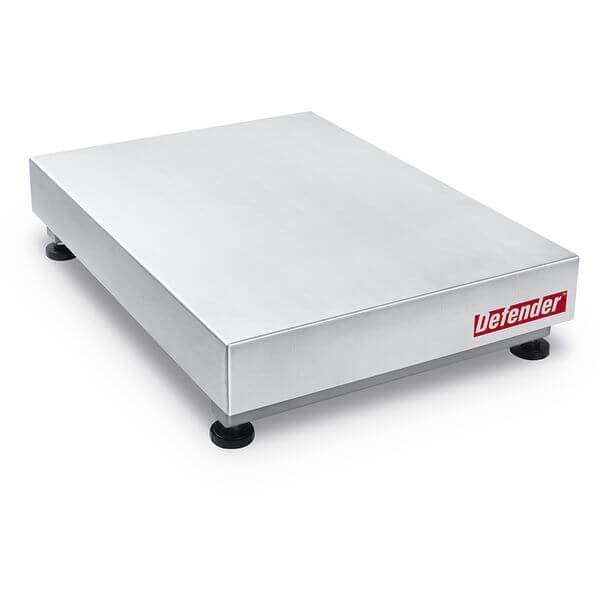

Ohaus - 30683707 - Defender™ 3000 Base i-D300C1X EZ
Features
The Defender 3000 Stainless Steel Bases offer economical yet durable performance for industrial weighing in washdown environments. With NTEP certification, Measurement Canada and OIML approval, these bases can be used for both general applications as well as where legal-for-trade performance is required.
Applications
Weighing, checkweighing, counting, totalization
Construction
304-grade stainless steel platform, stainless steel tubular frame, IP67 stainless steel load cell
Specifications
Overview
-
Nominal Height:5.9" (14.99 cm)
-
Nominal Width:19.7" (50.04 cm)
-
Nominal Length:25.6" (65.02 cm)
Technical Data
-
Maximum Capacity:600 lb (300 kg)
-
Readability:0.1 lb (50 g)
-
Readability (Certified):0.2 lb (100 g)
-
Platform Size (LxW):25.6 in x 19.7 in (650 mm x 500 mm)
-
Legal for Trade:Not applicable
-
Protection Rating:IP67
-
Platform Construction:Stainless steel
-
Net Weight:58.6 lb (26.6 kg)
-
Working Environment:14°F - 104°F, 85%RH, non-condensing (-10°C - 40°C, 85%RH, non-condensing)
Useful Links
-
Manual Defender 3000 BaseVisit Link
