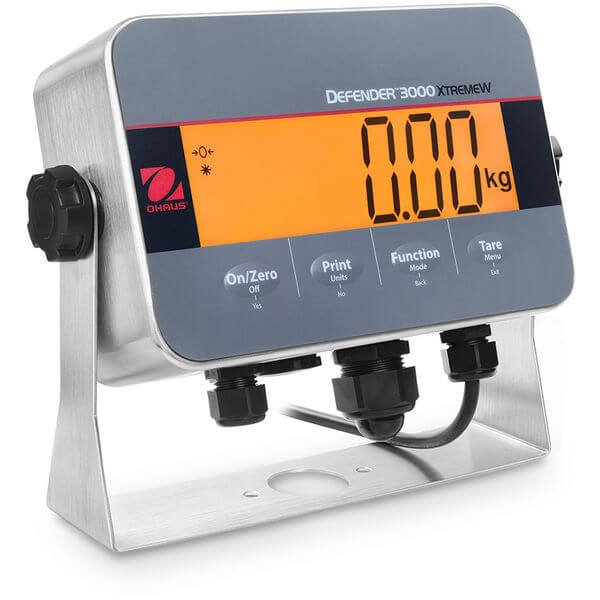

Ohaus - 30659311 - i-DT33XW Stainless Steel Washdown Indicator i-DT33XW AM
Features
The i-DT33XW is the go-to indicator when simplicity and accuracy are necessary in wet environments, or where the ability to frequently wash down is a must. The IP66 washdown stainless steel housing indicator features software for weighing, parts counting, checkweighing, and totalization, a large multicolor backlit LCD display, stainless steel mounting bracket, and a built-in bi-directional RS232C for printing or data connectivity.
Applications
Weighing, parts counting, checkweighing, and totalization
Display
7-segment LCD with multicolor backlight
Operation
Internal power supply with power cord (included) or rechargeable battery (included)
Communication
Standard RS232 and optional USB device or Ethernet
Construction
IP66 stainless steel housing and mounting bracket
Specifications
Overview
-
Nominal Height:8" (20.32 cm)
-
Nominal Width:2.9" (7.37 cm)
-
Nominal Length:10.1" (25.65 cm)
Technical Data
-
Resolution:30,000
-
Resolution (Certified):6,000
-
Battery Life:100 hours with rechargeable battery
-
Outputs:Not applicable
-
Second Scale Input:Not applicable
-
Protection Rating:IP66
-
Units of Measurement:Gram, Kilogram, Pound, Ounce, Pound, Ounce
-
Legal for Trade:NTEP Certified, Measurement Canada Approved
-
Display:7-segment LCD with multicolor backlight
-
Working Environment:14°F - 104°F, 85%RH, non-condensing (-10°C - 40°C, 85%RH, non-condensing)
-
Tare Range:To capacity by subtraction
-
Net Weight:6.6 lb (3 kg)
-
Communication:Ethernet (available as an accessory), RS232 (included), USB (available as an accessory)
