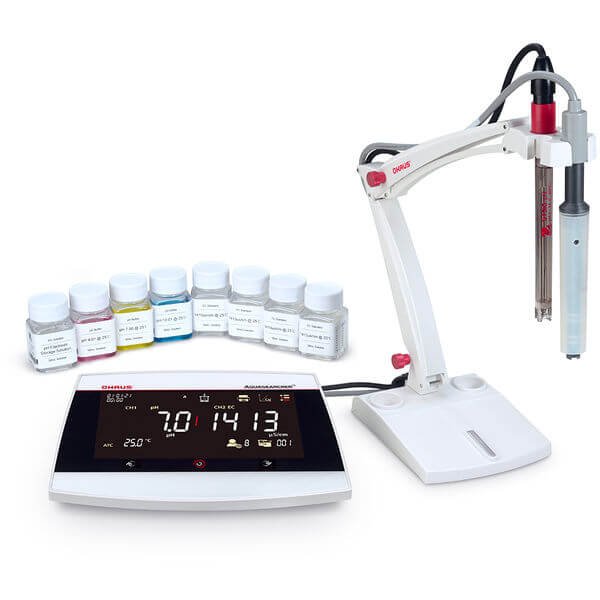

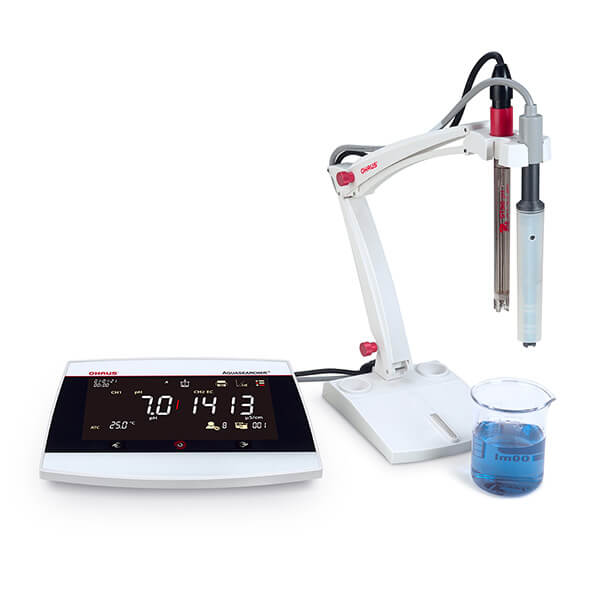

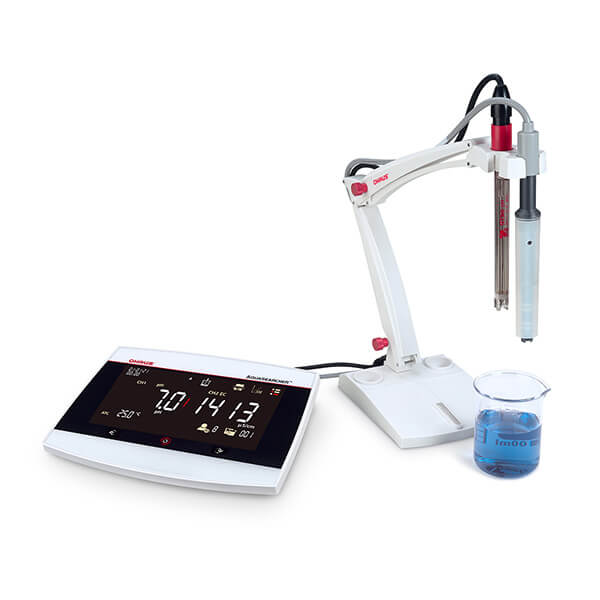

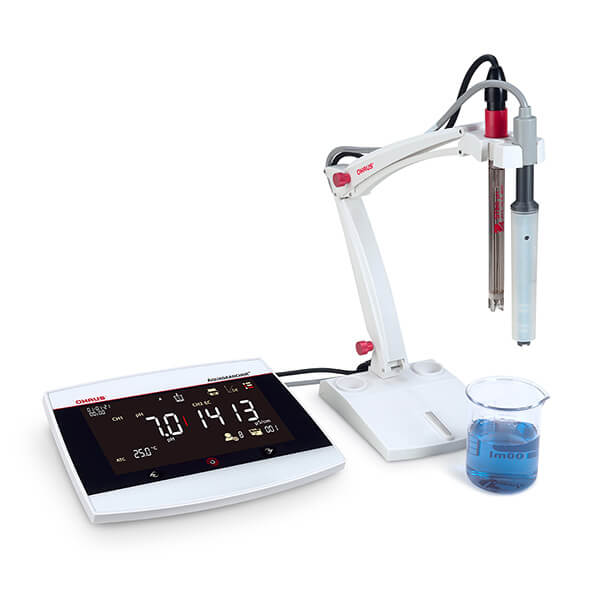

Ohaus - 30589825 - AQUASEARCHER™ Multi-Parameter Analyzer Meter a-AB33M1 -F

Features
The next step in the evolution of OHAUS’ original Starter Series, the all-new AQUASEARCHER™ AB33M1 multi-parameter bench meter is designed with reliable measurement and user-interface in mind. The i-Steward ensures repeatable and consistent measurement accuracy for optimal peace of mind. The 6.5 inch LCD display and touch keypad makes changing the parameters, executing setup, and performing calibration as simple as using a smartphone.
Capable of measuring up to 7 parameters including pH, ORP, conductivity, TDS, salinity, resistivity and temperature, the AB33M1 utilizes 2 independent measuring channels which can work simultaneously. With multifunctional touch keypads, AB33M1 makes measurement simple and fast. The intelligent i-Steward monitors the condition of electrodes, ensuring the accuracy of the results. A 1000-item memory for measurement and calibration allows for efficient data documentation. Records are kept with date/time for traceability. RS232 and USB enable connection to external devices.
- Applications: pH, Oxidation-Reduction Potential (ORP), Conductivity, Total Dissolved Solids (TDS), Salinity and Resistivity with Temperature Measurements

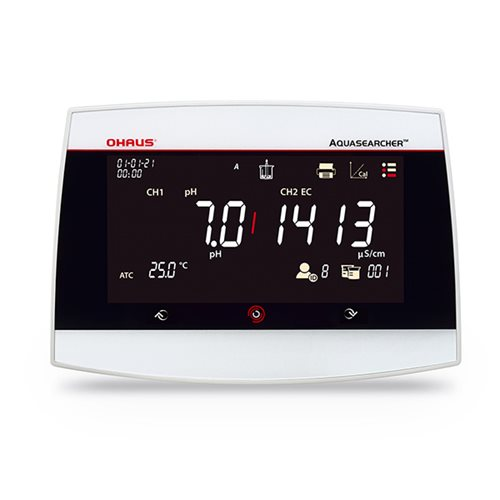

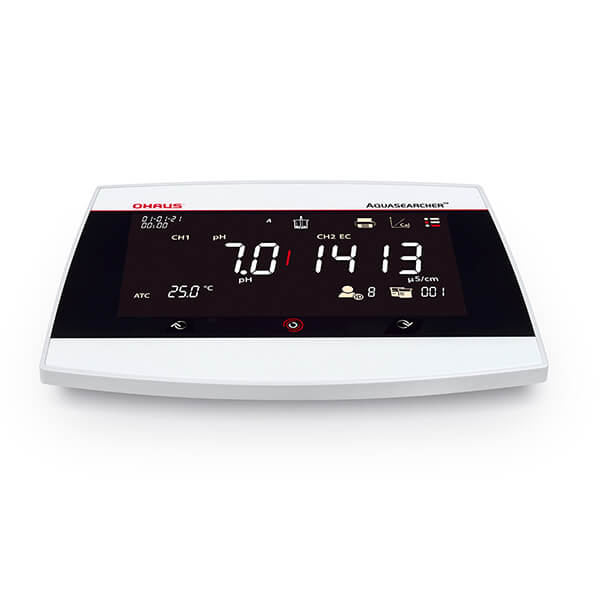

- Display: 6.5" Segment & Dot matrix LCD with backlight

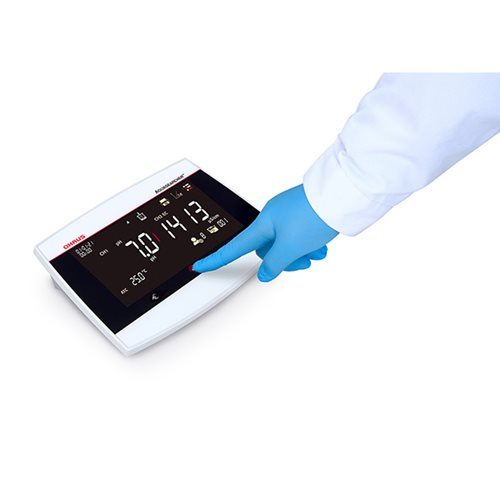

- Operation: Capacitive touch, ABS top housing, standalone electrode holder

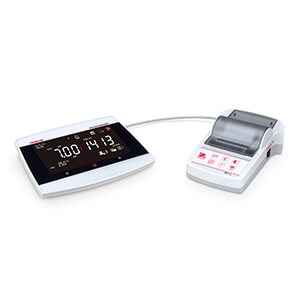

- Communication: RS232, USB Device (included)
- Construction: AC adapter (included)
- Design Features: i-Steward, Two Independent Channels, Calibration due alarm, 1,000 measurement memory
Specifications
Overview
-
Nominal Height:2" (5.08 cm)
-
Nominal Width:5.6" (14.22 cm)
-
Nominal Length:8.3" (21.08 cm)
Technical Data
-
Measurement Range:-2.00 - 20.00 pH, -5°C - 110°C, -2000.00 - +2000.00 mV
-
Measurement Resolution:0.1 mV, 0.1°C, 0.01 pH
-
Accuracy:±0.3°C, ±0.5 mV, ±0.01 pH
-
Display:LCD with backlight & one-line dot matrix
-
Electrode:ST310 (Included), STCON3 (Included)
-
Accuracy ± (mV):0.5 mV
-
Accuracy ± (Temperature):0.3°C
-
Conductivity Accuracy (±):0.5%
-
Conductivity Measuring Range:0.01 μS/cm - 500 mS/cm
-
Net Weight:1.1 lb (0.5 kg)
-
Parameter:pH / Cond
-
pH Accuracy (±):0.01
-
Power:AC Adapter (Included)
-
Resistivity Measuring Range:2 Ohm - 100 MOhm
-
Resistivity Resolution:0.01 Ohm
-
Working Environment:5°C - 40°C, 80% RH, Non-condensing
Downloads
-
Starter Electrodes GuideDownload
Useful Links
-
Datasheet AB33 SeriesVisit Link
-
Quick Start Guide AB41PH and AB33 SeriesVisit Link
-
Instruction Manual AB41PH and AB33 SeriesVisit Link
