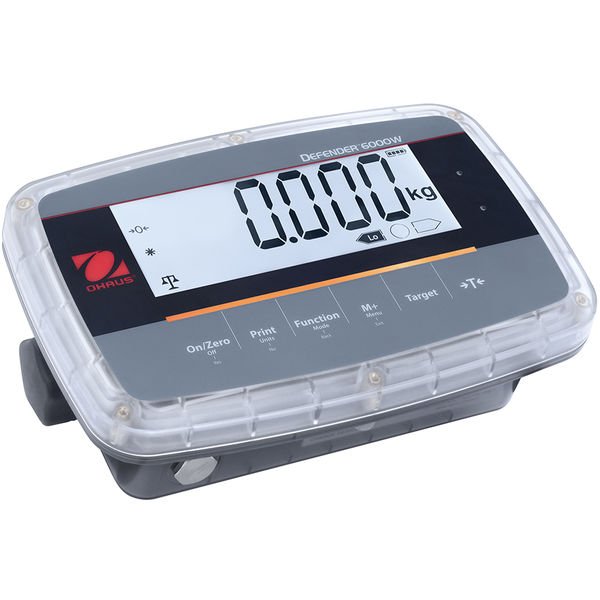

Ohaus - 30575585 - Indicator i-DT61PW AM Front Installation

Ohaus - 30575585 - Indicator i-DT61PW AM Front Installation

Ohaus - 30575585 - Indicator i-DT61PW AM Front Installation

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
Advanced IP68/IP69k Washdown Bench Scale.

Features

The Defender 6000 Series Extreme Washdown Bench Scale is specifically designed for food, chemical and pharmaceutical applications, including production and packaging. Defender 6000 handles the most demanding applications with 316 stainless steel platform and frame, and hermetically-sealed stainless steel IP69K load cell. Defender 6000 meets metrological approvals, NSF listing, and supporting HACCP systems.


Applications


Weighing, Counting with APW optimization, Percent Weighing, Checkweighing, Checkcounting, Dynamic Weighing/Display Hold.


Display


6-digit, 7-segment white LED, 20 mm high digits.


Operation


100-240 VAC / 50/60 Hz universal power supply, hardwired.


Communication


Easy access communication ports including RS232 and USB host (included), second RS232/RS485/USB device, Ethernet and WiFi/Bluetooth, Discrete I/O and Analog output (sold separately as accessories),GLP/GMP data output with real-time clock.


Construction


316 stainless steel platform and frame, hermetically-sealed, stainless steel load cell, IP68/IP69K 316 stainless steel housing indicator and mounting bracket, knife-resistant front panel.


Design Features


150% overload capacity protection, bar matrix check light, customizable print templates, menu and key lock, selectable environmental and auto-print settings, stability indicator, overload/underload indicators, auto shut-off, auto tare, adjustable non-slip rubber feet.

Specifications

Overview

  • Nominal Height:
    8.9" (22.61 cm)
  • Nominal Width:
    3.3" (8.38 cm)
  • Nominal Length:
    10.4" (26.42 cm)

Technical Data

  • Resolution:
    75,000
  • Battery Life:
    1600 Hours with Disposable Batteries
  • Outputs:
    Not Applicable
  • Second Scale Input:
    Not Applicable
  • Protection Rating:
    IP69k, IP68
  • Communication:
    Infrared communication kit (available as an accessory)
  • Display:
    7-Segment LCD with white backlight, height 45mm + 3 Color Checkweigh LED
  • Legal for Trade:
    NTEP Certified, Measurement Canada Approved
  • Net Weight:
    6 lb (2.7 kg)
  • Power:
    6 D (LR20) batteries (included)
  • Tare Range:
    To capacity by subtraction
  • Units of Measurement:
    Gram, Kilogram, Pound, Ounce
  • Working Environment:
    14°F - 104°F, 80%RH, non-condensing (-10°C - 40°C, 80%RH, non-condensing)
