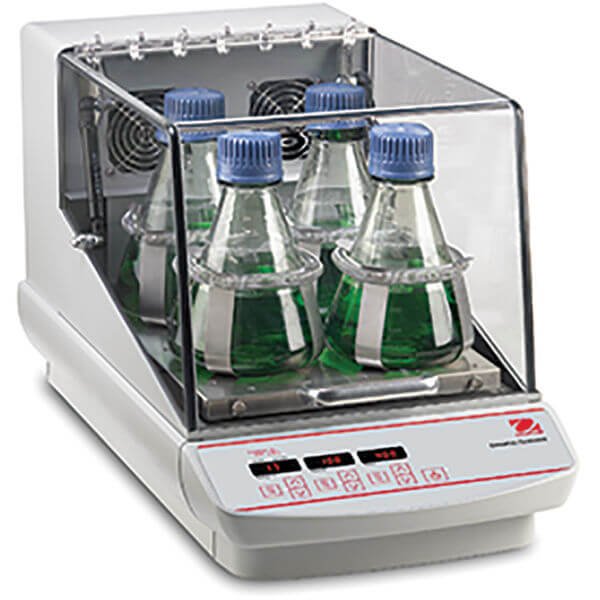

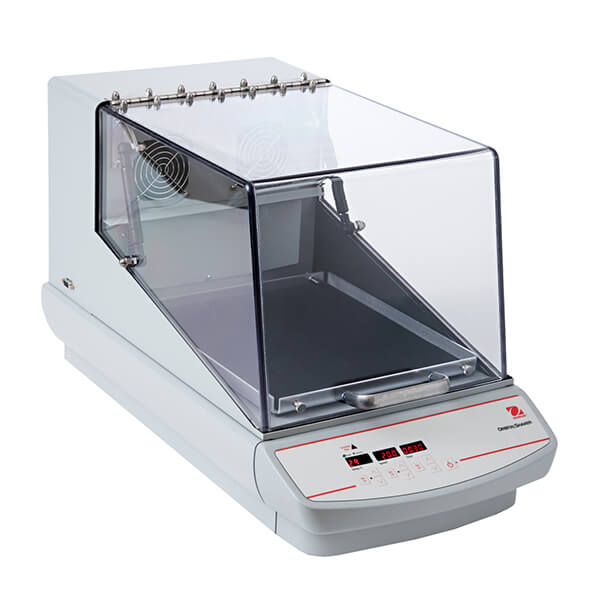

Incubating shaker ISHD16HDG US.

Features

Incubating Heavy Duty Orbital Shakers offer exceptional temperature uniformity and are designed for a variety of shaking and incubating applications.

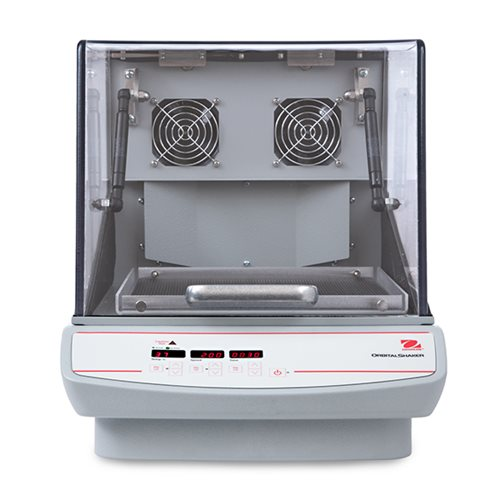

The exclusive Opti-Flow Forced Ventilation System utilizes twin induction or a single large fan. Air is deflected around & not directly on samples, creating a circular flow of air ensuring uniformity. For repeatable results, the exclusive Accu-Drive shaking system ensures speed accuracy. The Triple Eccentric Drive provides consistent shaking motion throughout the entire speed range. The chambers for the ISHD23HDG and ISHD23CDG units are large enough to hold 2 x 6 L Erlenmeyer flasks with optional clamps and platform.



Applications



Cell Cultures, Solubility Studies, Bacterial Suspensions, Extraction Procedures

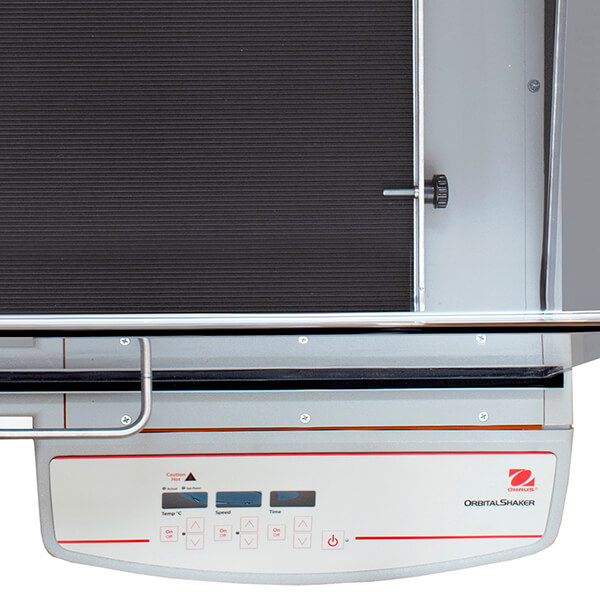

Display



Independent LED displays for temperature, speed and time



Communication



RS232



Construction



Aluminum and Cycoloy



Design Features



Temperature calibration feature, overload protection, overshoot protection (temperature), load sensor, PID temperature controller, Triple Eccentric Drive system

Specifications

Overview

  • Nominal Height:
    16" (40.64 cm)
  • Nominal Width:
    14" (35.56 cm)
  • Nominal Length:
    25.5" (64.77 cm)
  • Internal Height:
    9.5" (24.13 cm)
  • Internal Width:
    12" (30.48 cm)
  • Internal Length:
    13.4" (34.04 cm)

Technical Data

  • Motion:
    Orbital, 19 mm
  • Capacity:
    35 lb (16 kg) at 75 rpm, 5 lb (2.3 kg) at 500 rpm
  • Temp. Range:
    Ambient +5°C to 65°C
  • Speed Range:
    15 rpm to 500 rpm

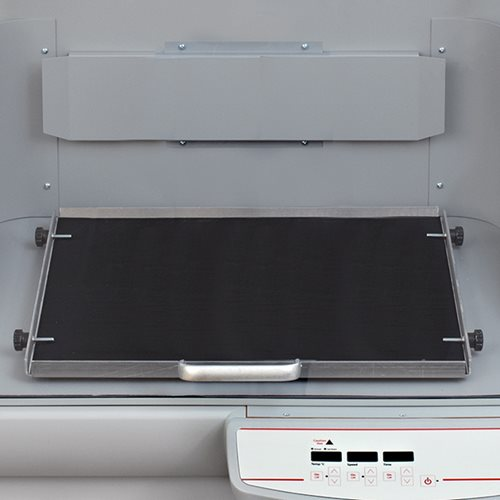

  • Tray Size:
    13 in x 11 in (330 mm x 279 mm) (LxW)
  • Control:
    Digital
  • Calibration:
    Temperature calibration
  • Communication:
    RS232
  • Drive System:
    Triple Eccentric, Brushless DC Motor
  • Net Weight:
    79.11 lb (35.9 kg)
  • Power:
    120V, 5A, 50/60Hz
  • Power Consumption:
    450 W
  • Safety Certification:
    TUV
  • Speed Accuracy:
    Above 100 rpm ±1%, Below 100 rpm ±1 rpm
  • Timer:
    1 second - 160 hours
  • Tray Construction:
    Aluminum
  • Uniformity:
    ±0.5°C at 37°C
  • Working Environment:
    59°F - 90°F, 80% RH, non-condensing (15°C - 32°C, 80% RH, non-condensing)
