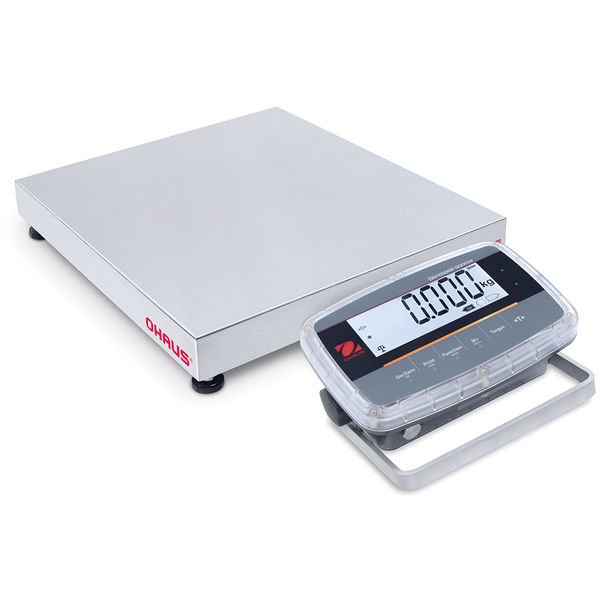

Washdown Bench Scale for Standard Industrial Applications.

Features

The Defender 6000 series Hybrid Washdown bench scale is ideal for a multitude of applications, including production and packaging. Defender 6000 handles the most demanding applications with a polycarbonate housing equipped with a 3-color check light bar, ultra-long battery life and EasyConnectTM. The Defender 6000 hybrid is designed to simplify demanding industrial and commercial applications.



Defender 6000 indicator constructed of polycarbonate stands up to harsh cleaning in processing and packaging environments with IP68 immersion/IP69K washdown protection. Large, bright backlit LCD clearly displays results for fast processing. The color bar can be used for quick checking of package weights for fast go/no-go alert. Durably constructed with a 304 stainless steel platform, frame, IP67 loadcell, Defender 6000 hybrid meets NTEP/Measurement Canada approvals.



Applications



Weighing, Counting with APW optimization, Percent Weighing, Checkweighing, Checkcounting, Dynamic Weighing/Display Hold.



Display



6-digit, 7-segment LCD display with white backlight, 45 mm high digits.



Operation



6 D (LR20) batteries (included).



Communication



Easy access IR communication kit (available as an accessory),GLP/GMP data output with real-time clock.



Construction



304 stainless steel platform and frame, IP68/IP69K polycarbonate housing indicator and 316 stainless steel mounting bracket, IP67 load cell.



Design Features



150% overload capacity protection, 3-color check light bar, menu and key lock, selectable environmental and auto-print settings, stability indicator, overload/underload indicators, low battery indicator, auto shut-off, auto tare, adjustable rubber feet.



Watch the video

Specifications

Overview

  • Nominal Height:
    5.1" (12.95 cm)
  • Nominal Width:
    18" (45.72 cm)
  • Nominal Length:
    28.9" (73.41 cm)

Technical Data

  • Maximum Capacity:
    100 lb (50 kg)
  • Readability:
    0.005 lb (2 g)
  • Readability (Certified):
    0.02 lb (10 g)
  • Platform Size (LxW):
    18 in x 18 in (457 mm x 457 mm)
  • Legal for Trade:
    NTEP Certified, Measurement Canada Approved
  • Power:
    6 D (LR20) batteries (included)
  • Battery Life:
    1600 Hours with Disposable Batteries
  • Communication:
    Infrared radio communication kit (available as an accessory)
  • Display:
    7-Segment LCD with white backlight, height 45mm + 3 Color Checkweigh LED
  • Net Weight:
    39.7 lb (18 kg)
  • Outputs:
    Not Applicable
  • Platform Construction:
    Stainless Steel
  • Protection Rating:
    IP69k, IP68
  • Second Scale Input:
    Not Applicable
  • Tare Range:
    To capacity by subtraction
  • Units of Measurement:
    Metric Tons, Gram, Kilogram, Pound, Ounce
  • Working Environment:
    14°F - 104°F, 80%RH, non-condensing (-10°C - 40°C, 80%RH, non-condensing)
