Ohaus - 30469911 - Explorer™ Floor Scale, DFD32M2500ES

Ohaus - 30469911 - Explorer™ Floor Scale, DFD32M2500ES
Ohaus - 30469911 - Explorer™ Floor Scale, DFD32M2500ES
Ohaus - 30469911 - Explorer™ Floor Scale, DFD32M2500ES
Ohaus - 30469911 - Explorer™ Floor Scale, DFD32M2500ES
Ohaus - 30469911 - Explorer™ Floor Scale, DFD32M2500ES

Ohaus - 30469911 - Explorer™ Floor Scale, DFD32M2500ES

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
Convenient Portability with Floor Scale Capacity.

Features

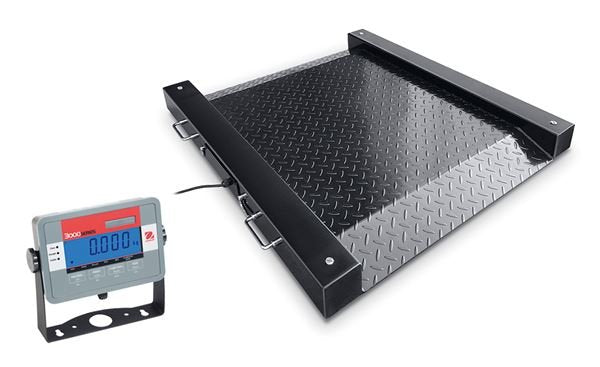

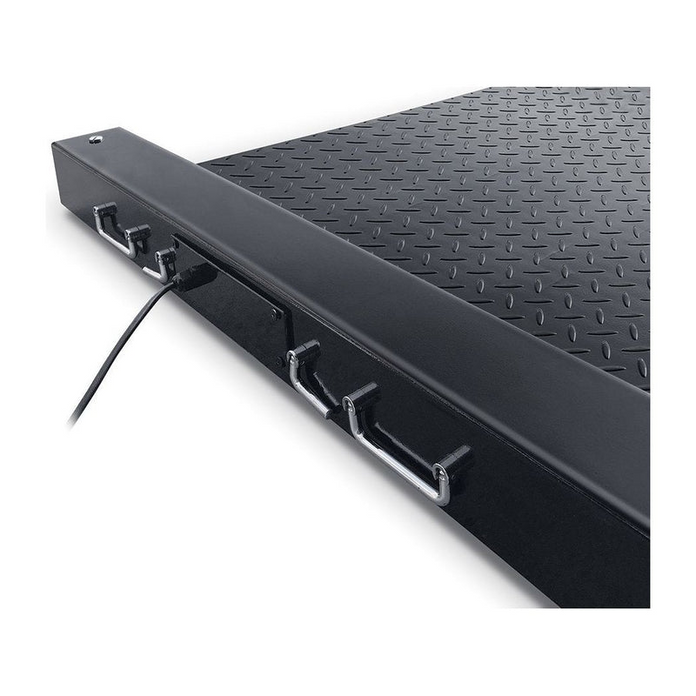

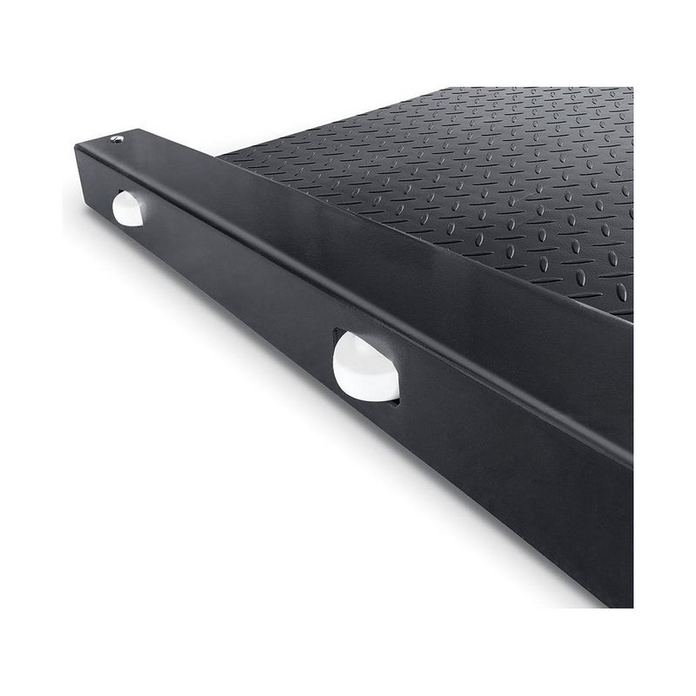

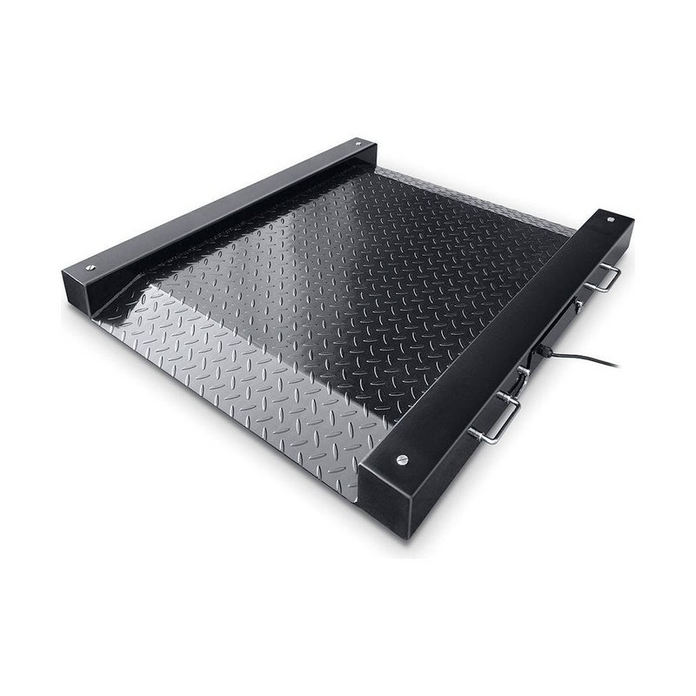

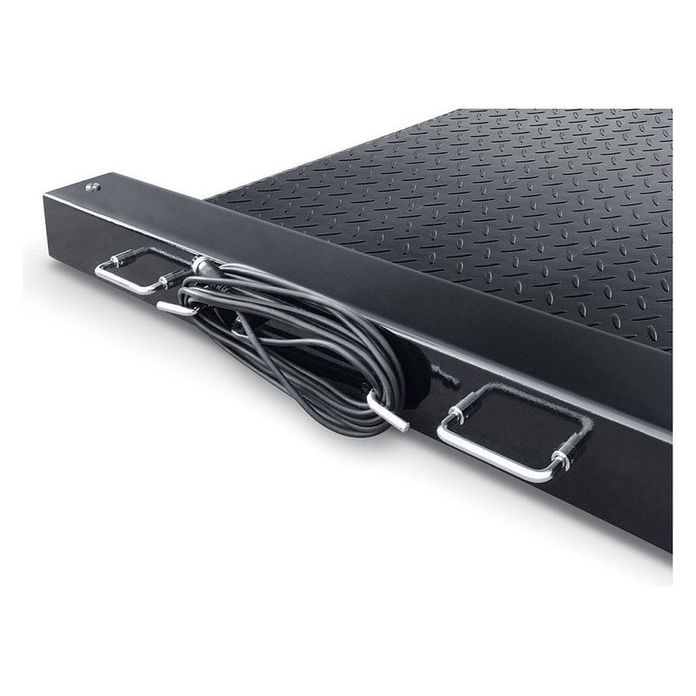

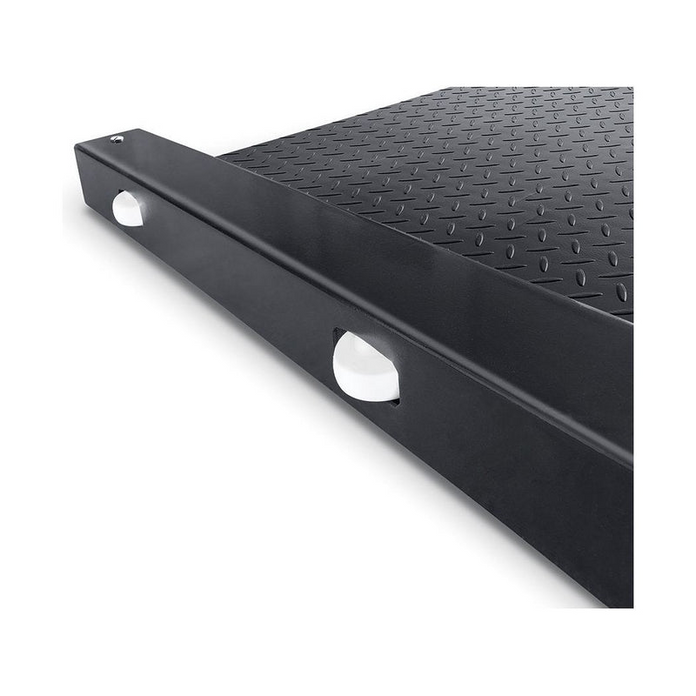

The Defender 3000 Drum Scale is a durable portable floor scale designed for industrial applications. It features a mild steel platform with treads, built-in front/back access ramps, 4 load cells (with alloy steel feet & top leveling), and the popular T32M indicator for clear display of weighing results. For rapid portability, the base can be turned onto its side using the stainless steel handles and it can moved around the shop floor using the two built-in wheels.



Applications



Weighing, Counting Parts, Checkweighing, Accumulation, Dynamic/Display Hold



Display



Backlit liquid crystal display (LCD)



Operation



AC adapter with Auto Shut-off feature (included)



Communication



Easy access communication port including RS232 interface (included)



Construction



Painted steel platform with treads, front ABS/rear painted carbon steel, indicator & mounting bracket, aluminum junction box, four alloy steel load cells with top height adjustment, front/back access ramps



Design Features



Low-profile design



By choosing the Ohaus - DFD32M - Defender™ Drum Scales, you’re not just purchasing a floor scale but investing in a smoother, more efficient workflow. Imagine the ease and convenience of moving and weighing large loads with minimal effort. Feel the satisfaction of quick, accurate readings that streamline your operations and reduce errors. With this scale, you equip your business with a tool, a gateway to enhanced productivity and operational excellence in all your industrial weighing tasks.

Specifications

Overview

  • Nominal Height:
    4" (10.16 cm)
  • Nominal Width:
    37.9" (96.27 cm)
  • Nominal Length:
    40.4" (102.62 cm)

Technical Data

  • Maximum Capacity:
    2,500 lb (1,250 kg)
  • Readability:
    0.5 lb (0.2 kg)
  • Platform Size:
    30 in x 30 in (762 mm x 762 mm)
  • Battery Life:
    Not Applicable
  • Communication:
    RS232 (Included)
  • Display:
    LCD Display with white backlight
  • Legal for Trade:
    No
  • Net Weight:
    101 lb (46 kg)
  • Outputs:
    Not Applicable
  • Platform Construction:
    Painted Steel Diamond Plate
  • Power:
    AC Adapter (Included)
  • Protection Rating:
    Not Applicable
  • Tare Range:
    To capacity by subtraction
  • Units of Measurement:
    Gram, Kilogram, Pound, Ounce, Pound, Ounce
  • Working Environment:
    14°F - 104°F, 85%RH, non-condensing (-10°C - 40°C, 85%RH, non-condensing)
