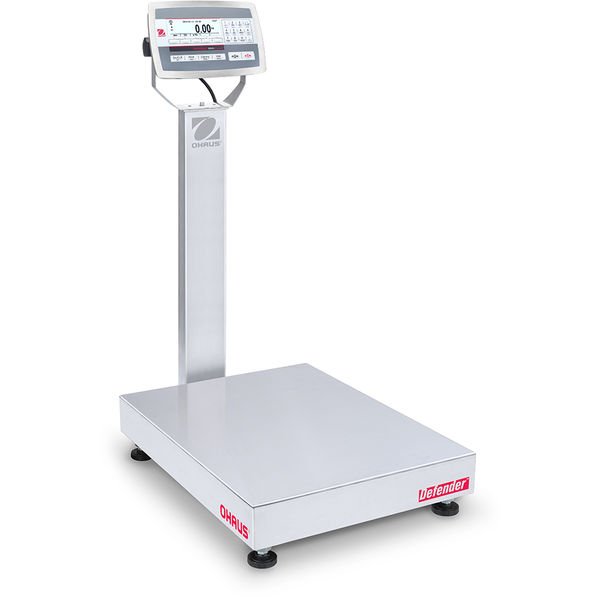

Ohaus - 30461699 - Defender™ 5000 Multifunctional Bench Scale, D52XW250RTX2

Features
The OHAUS next generation Defender 5000 Series multifunctional washdown bench scale is ideal for a multitude of applications, including production, packaging, inventory and shipping. Built durably and equipped with advanced features such as maximum configurability print output, GMP/GLP data output, library/user management and multiple connectivity options - the Defender 5000 is designed to simplify demanding industrial and commercial applications.
Applications
Weighing, Parts Counting, Percent Weighing, Check Weighing, Dynamic Weighing (Display Hold).

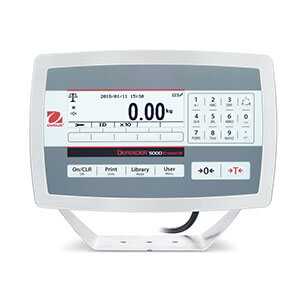

Display
Backlit Liquid Crystal Display (LCD), 256 x 80 pixels.
Operation
Internal power supply with power cord (included) or rechargeable battery (sold separately as an accessory).
Communication
Easy access communication ports including RS232 and Micro SD slot (included), second RS232/RS485/USD device, Ethernet and WiFi/Bluetooth, Discrete I/O and Analog Output (sold separately as accessories),GLP/GMP data output with real-time clock.
Construction
ABS plastic (TD52P) or stainless steel (TD52XW) indicator, 304-grade stainless steel platform with sand gray powder-coated steel frame, aluminum load cell, non-slip adjustable rubber feet.
Design Features
User-configurable resolution up to dual range 15,000d/3,000e (25000d/5000d for NTEP), 150% overload capacity protection, checkweighing symbols with selectable operation and audible signal settings, menu lock switch, multiple selectable operating languages, selectable environmental and auto-print settings, stability indicator, overload/underload indicators, selectable adjust contrast settings, auto-dim display, auto-off, brightness adjustment, screensaver, auto tare.
Specifications
Overview
-
Nominal Height:36.8" (93.47 cm)
-
Nominal Width:18" (45.72 cm)
-
Nominal Length:30.6" (77.72 cm)
Technical Data
-
Maximum Capacity:500 lb (250 kg)
-
Readability:0.02 lb (10 g)
-
Readability (Certified):0.1 lb (50 g)
-
Platform Size (LxW):24 in x 18 in (610 mm x 457 mm)
-
Legal for Trade:NTEP Certified, Measurement Canada Approved
-
Power:Rechargeable Battery (Not Included), AC Power (Included)
-
Battery Life:20 Hours with Rechargeable Battery
-
Communication:Ethernet (Available as an Accessory), 2nd RS232/RS485/USB (available as an accessory), RS232 (Included), USB Host (Available as an Accessory), WiFi/Bluetooth (available as an accessory)
-
Display:Dot matrix LCD with white LED backlight
-
Net Weight:61.7 lb (28 kg)
-
Outputs:4 - 20mA, 2 In/4 Out digital I/O
-
Platform Construction:Stainless Steel
-
Protection Rating:Not Applicable
-
Second Scale Input:Not Applicable
-
Tare Range:To capacity by subtraction
-
Units of Measurement:Metric Tons, Gram, Kilogram, Pound, Tonne, Custom, Ounce
-
Working Environment:14°F - 104°F, 80%RH, non-condensing (-10°C - 40°C, 80%RH, non-condensing
