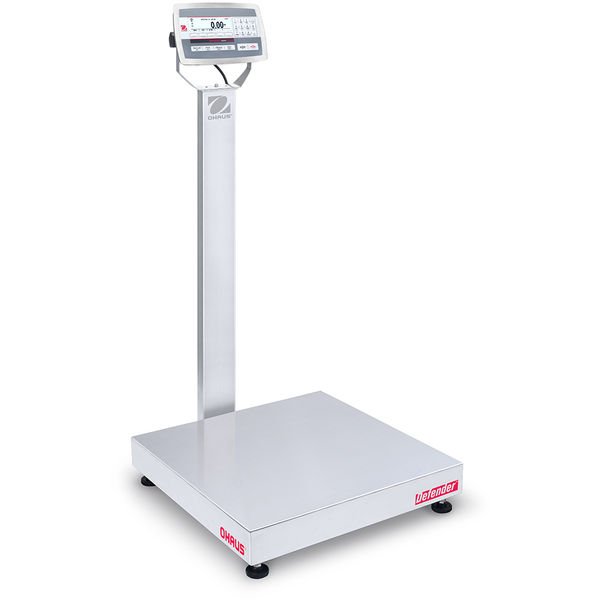

Ohaus - 30461686 - Defender™ 5000 Multifunctional Stainless Steel Washdown Bench Scale, D52XW125WQV8
Features
The OHAUS next generation Defender 5000 Series multifunctional washdown bench scale is ideal for a multitude of applications, including production, packaging, inventory and shipping. Built durably and equipped with advanced features such as maximum configurability print output, GMP/GLP data output, library/user management and multiple connectivity options - the Defender 5000 is designed to simplify demanding industrial and commercial applications.
User-friendly model with an easy-to-use keypad, large backlit display and plain text on-screen prompts which guide you through operation. Durably constructed of a stainless steel platform, frame & IP68 indicator; IP67 stainless steel loadcell (NTEP/MC/OIML/EC Type single range) or aluminum load cell (OIML/EC Type dual range). Features common industrial modes and supports a 50,000-item library with 1,000 user profiles for easy data management. Incudes GMP/GLP with time/date for result traceability.
Applications
Weighing, Parts Counting, Percent Weighing, Check Weighing, Dynamic Weighing (Display Hold).

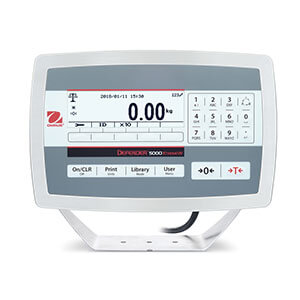

Display
Backlit Liquid Crystal Display (LCD), 256 x 80 pixels.
Operation
Internal power supply with power cord (included) or rechargeable battery (sold separately as an accessory).
Communication
Easy access communication ports including RS232 and Micro SD slot (included), second RS232/RS485/USD device, Ethernet and WiFi/Bluetooth, Discrete I/O and Analog Output (sold separately as accessories),GLP/GMP data output with real-time clock.
Construction
304-grade stainless steel platform and frame, stainless steel IP68 indicator, IP67 stainless steel load cell (single range) / aluminum load cell (dual range), non-slip adjustable rubber feet.
Design Features
Resolution up to dual range 3,000e, 150% overload capacity, checkweighing display and beep, menu lock switch, selectable display languages, selectable filter, stability indicator, overload/underload indicators, selectable display controls, auto print and tare.
Specifications
Overview
-
Nominal Height:48.6" (123.44 cm)
-
Nominal Width:24" (60.96 cm)
-
Nominal Length:30.4" (77.22 cm)
Technical Data
-
Maximum Capacity:250 lb (125 kg)
-
Readability:0.01 lb (5 g)
-
Readability (Certified):0.05 lb (50 g)
-
Platform Size (LxW):24 in x 24 in (610 mm x 610 mm)
-
Legal for Trade:NTEP Certified, Measurement Canada Approved
-
Power:Rechargeable Battery (Not Included), AC Power (Included)
-
Battery Life:20 Hours with Rechargeable Battery
-
Communication:Ethernet (Available as an Accessory), 2nd RS232/RS485/USB (available as an accessory), RS232 (Included), USB Host (Available as an Accessory), WiFi/Bluetooth (available as an accessory)
-
Display:Dot matrix LCD with white LED backlight
-
Net Weight:88.2 lb (40 kg)
-
Outputs:4 - 20mA, 2 In/4 Out digital I/O
-
Platform Construction:Stainless Steel
-
Protection Rating:IP67
-
Second Scale Input:Not Applicable
-
Tare Range:To capacity by subtraction
-
Units of Measurement:Metric Tons, Gram, Kilogram, Pound, Tonne, Custom, Ounce
-
Working Environment:14°F - 104°F, 80%RH, non-condensing (-10°C - 40°C, 80%RH, non-condensing)
