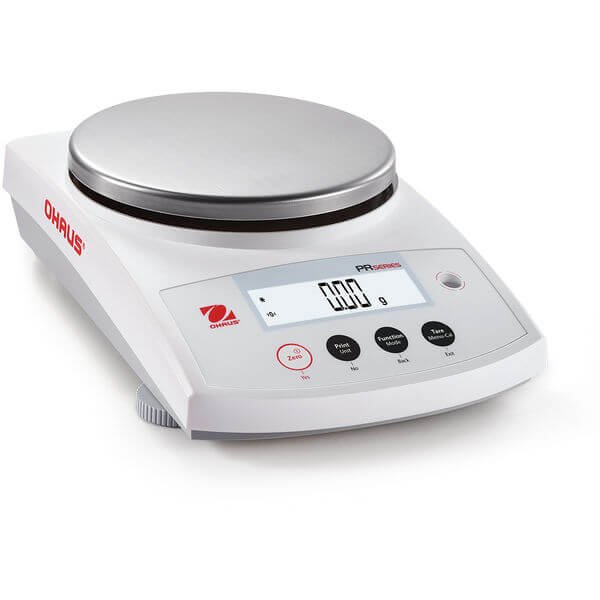

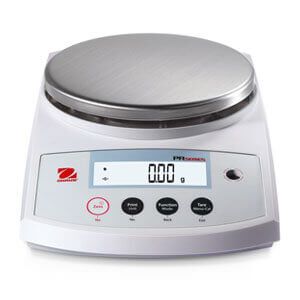

Ohaus - 30455668 - PR Series Precision Balance PR2202N/E

Ohaus - 30455668 - PR Series Precision Balance PR2202N/E
Ohaus - 30455668 - PR Series Precision Balance PR2202N/E
Ohaus - 30455668 - PR Series Precision Balance PR2202N/E
Ohaus - 30455668 - PR Series Precision Balance PR2202N/E

Ohaus - 30455668 - PR Series Precision Balance PR2202N/E

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
Designed for Routine Weighing Applications in Your Workplace.

Features

Offering accuracy and repeatability in essential weighing applications in laboratory, industrial and education settings, PR Analytical and Precision Balances deliver competitive performance at an economical price. Featuring RS232 connectivity for easy communication, and a backlit display and a simple interface for uncomplicated operation, the PR is perfectly designed for your workplace.



The PR is equipped with 3 essential weighing modes, RS-232 connectivity for data transfer and storage, and internal calibration (in select models), making it ideal for routine weighing applications. Equipped with an easy-to-read, bright backlit display and a simple user interface, the PR is incredibly easy to operate, with almost no training required. The PR's small footprint saves desktop space while providing a large weighing surface. The PR is durably constructed, and features a stainless steel pan to withstand day-to-day use in the workplace.



Applications



Basic Weighing, Parts Counting, Percent Weighing



Display



Backlit Liquid Crystal Display (LCD)



Operation



AC adapter (included)

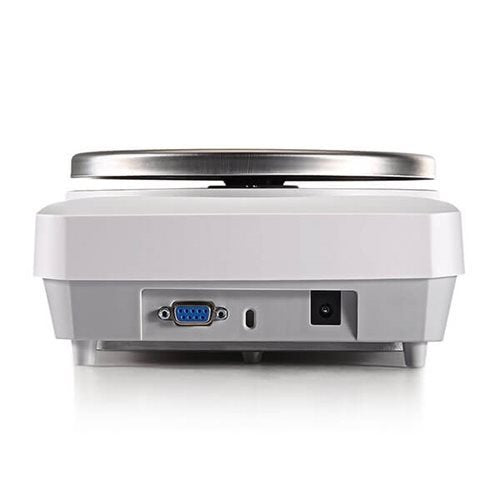

Communication



RS232 (one port included)



Construction

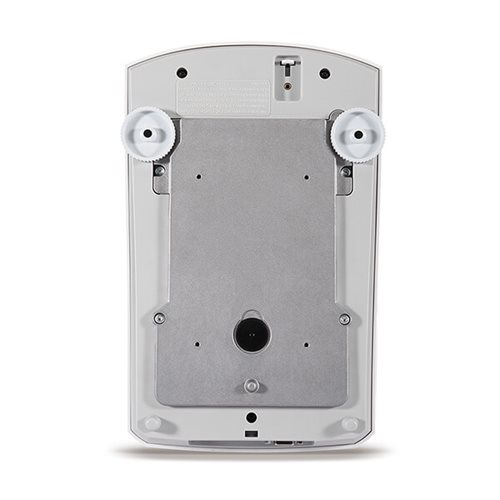

ABS top housing, removable stainless steel pan, removable glass draftshield with sliding top door, integrated weigh-below-hook, security bracket, calibration lock



Design Features



User-selectable environmental filters and brightness settings, auto-tare, auto-dim, user-selectable span calibration points, software lockout and reset menu, user-selectable communication settings and data print options, user-definable project and user IDs, software overload/underload indicator, stability indicator



Watch the video

Specifications

Overview

  • Nominal Height:
    3.7" (9.4 cm)
  • Nominal Width:
    7.9" (20.07 cm)
  • Nominal Length:
    12.5" (31.75 cm)

Technical Data

  • Maximum Capacity:
    2,200 g
  • Readability:
    0.01 g
  • Readability (Certified):
    0.1 g
  • Pan Size:
    7.1 in (180 mm)
  • Internal Calibration:
    Not Applicable
  • Auto Door:
    Not Applicable
  • Auxiliary Display Model:
    Available as an Accessory
  • Battery Life:
    Not Applicable
  • Communication:
    RS232
  • Display:
    LCD with backlight
  • In-Use Cover:
    No
  • Legal for Trade:
    NTEP Certified
  • Linearity:
    ± 0.02 g
  • Minimum Weight (USP, 0.1%, Typical):
    20 g
  • Net Weight:
    7.7 lb (3.5 kg)
  • Pan Construction:
    Stainless Steel
  • Power:
    AC Adapter (Included)
  • Repeatability, Typical:
    0.01 g
  • Stabilization Time:
    1 s
  • Tare Range:
    To capacity by subtraction
  • Units of Measurement:
    Ounce Troy, Gram, Kilogram, Grain, Pound, Ounce, Carat
  • Working Environment:
    50°F - 104°F, 80%RH, non-condensing, 50°F - 86°F, 80%RH, non-condensing (10°C - 40°C, 80%RH, non-condensing, 10°C - 30°C, 80%RH, non-condensing)
